Patient care trolley
Patient care trolley
Patient care trolley
type PFW

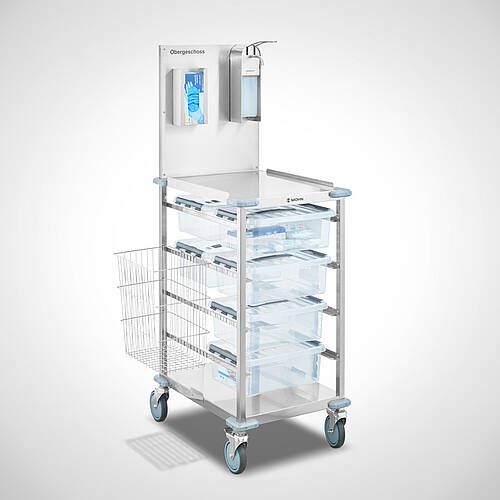

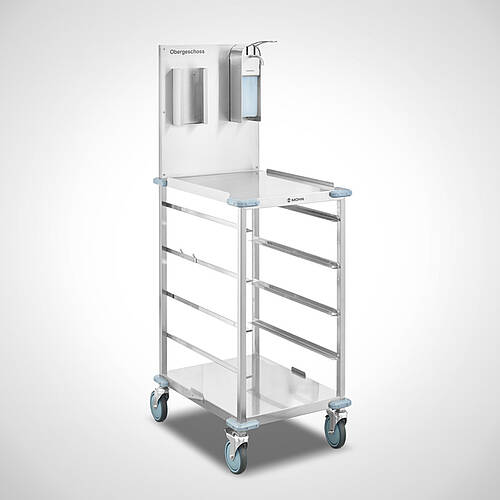

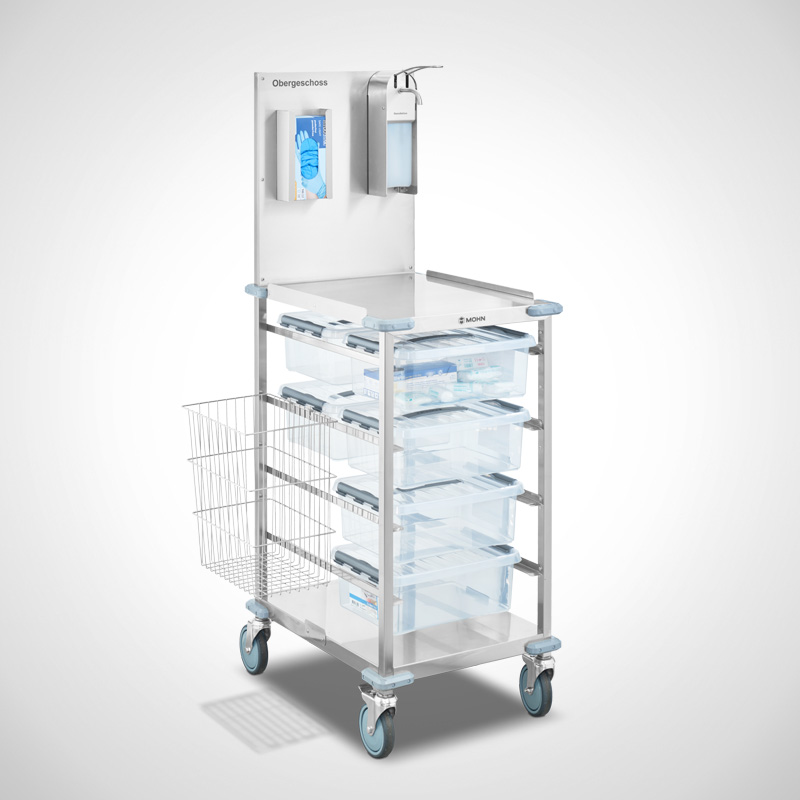

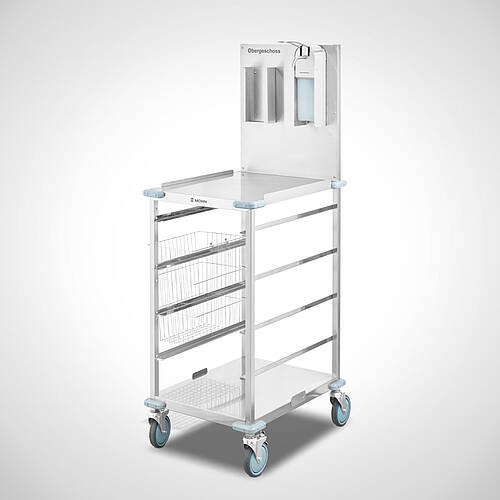

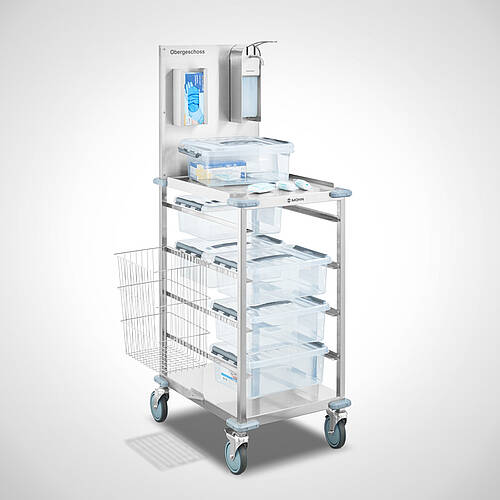

professional patient CARE trolley for care homes
- Welded stainless steel frame profile construction
- Shelf and floor shelf each with 2 side bumpers
- Shelf and floor shelf each with 4 bumpers

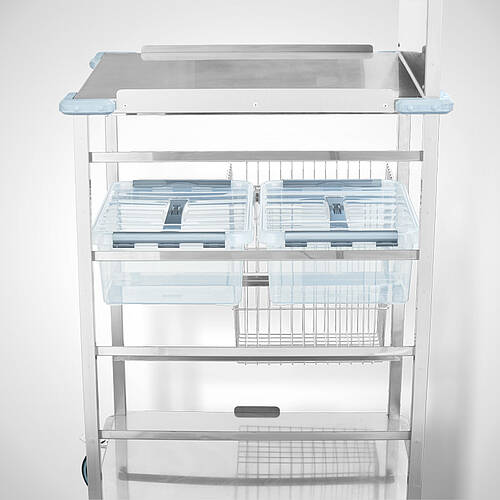

- Open design with 4 shelves for optional plastic containers*
- Stainless steel wire mesh wastepaper basket type PK-D 40 litres on left-hand side
- Upper shelf with rear panel, W 523 x H 550 mm
- Rear panel fitted with:
- 1 disinfectant dispenser type USP-O*
- 1 disposable glove dispenser type HSS-2*
- 4 swivel castors Ø 125 x 32 mm with thread guards
- Galvanised steel swivel housing, 2 swivel castors with brakes
- Custom engraving using stainless steel etching on request
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other designs on request. We manufacture according to your ideas and wishes.
*Delivery does not include accessories such as hand sanitiser, disposable gloves, dressing material, plastic boxes, etc.
Material
Made of chrome nickel steel 18/10 material no. 1.4301.
The externally visible stainless steel sheet surfaces have a polished finish with grain 320.
The externally visible stainless steel profile surfaces, e.g. profile tube construction, have a uniform brushed finish.
Steering housing galvanised steel, chromated
Technical information
- Shelf width (clear dimension): 353 mm
- Shelf spacing: 187.5 mm
- Shelf angle plate: B 35 mm, # 1.0 mm
Description

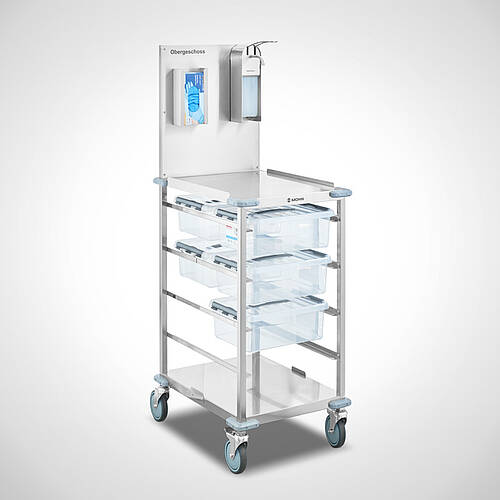

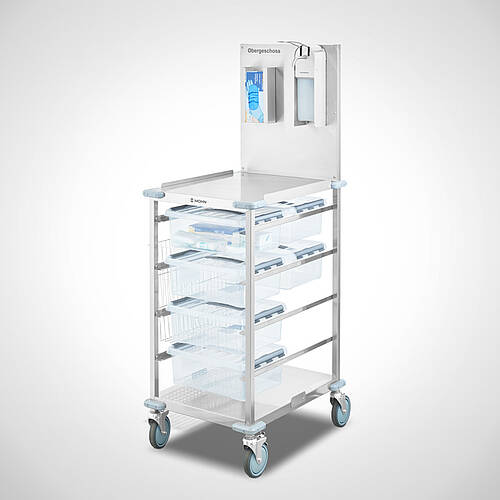

Thepatient care trolley type PFW-4/523-668 is made of stainless steel (chromium-nickel steel, grade 1.4301) and designed for daily use in nursing homes, hospitals and elderly care facilities. The rustproof stainless steel surface is hygienic, corrosion-resistant and easy to clean – an important advantage in sensitive environments. Its solid frame construction with welded shelves ensures durability in everyday care routines. Side impact panels and protective bumpers on all corners safeguard both trolley and surroundings when moving through corridors or tight spaces.

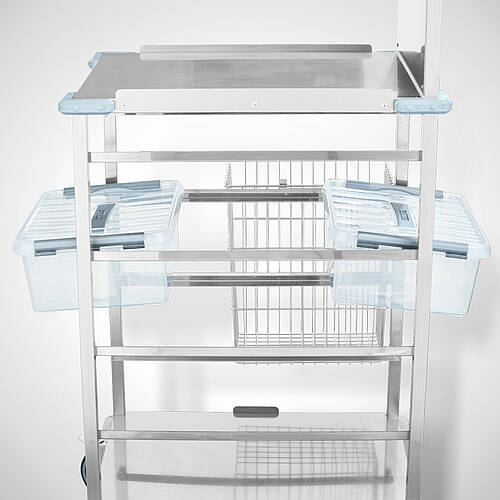

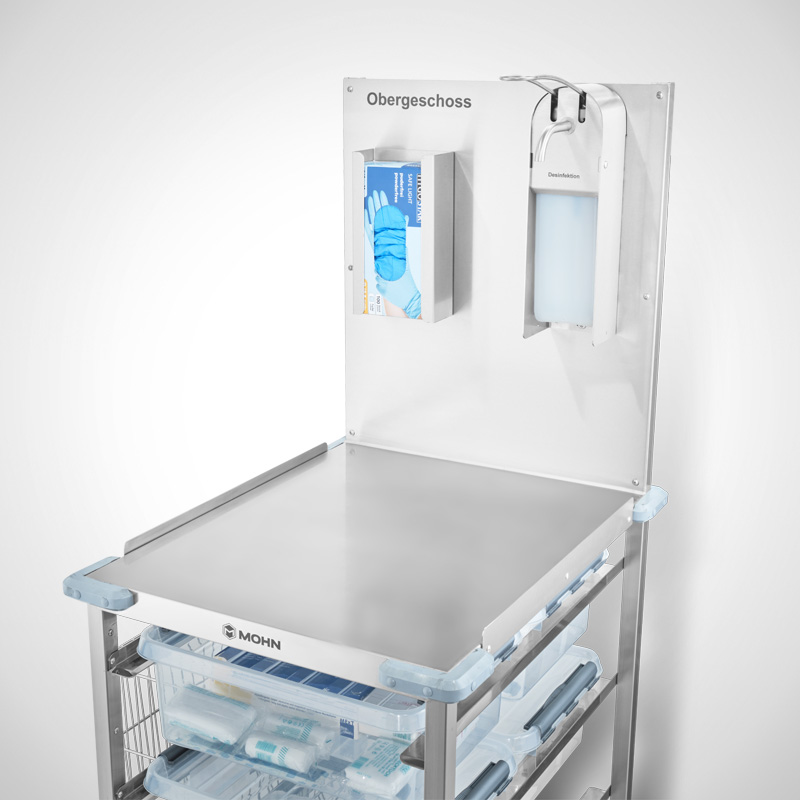

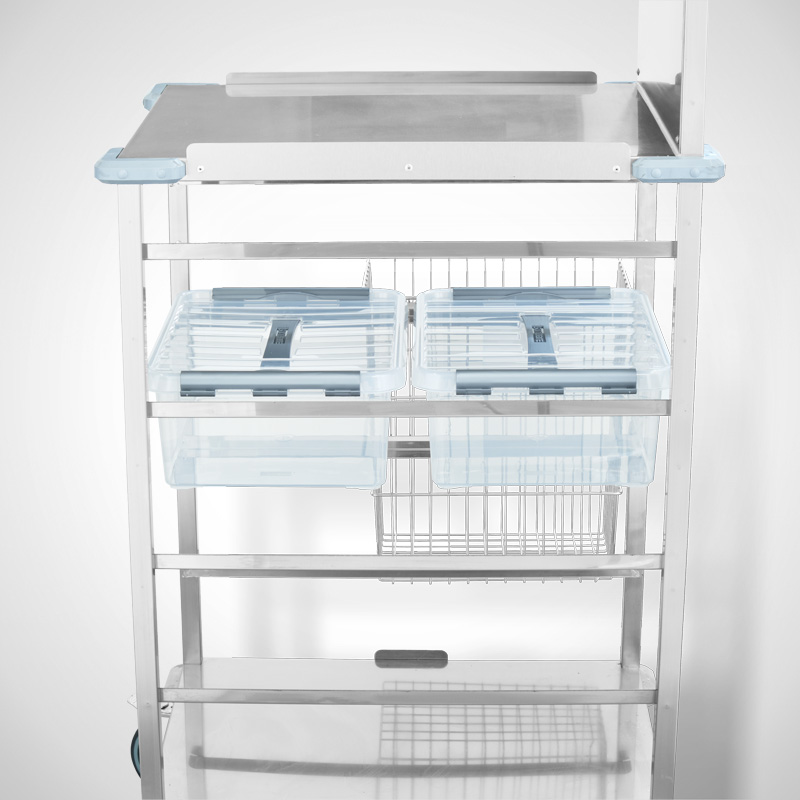

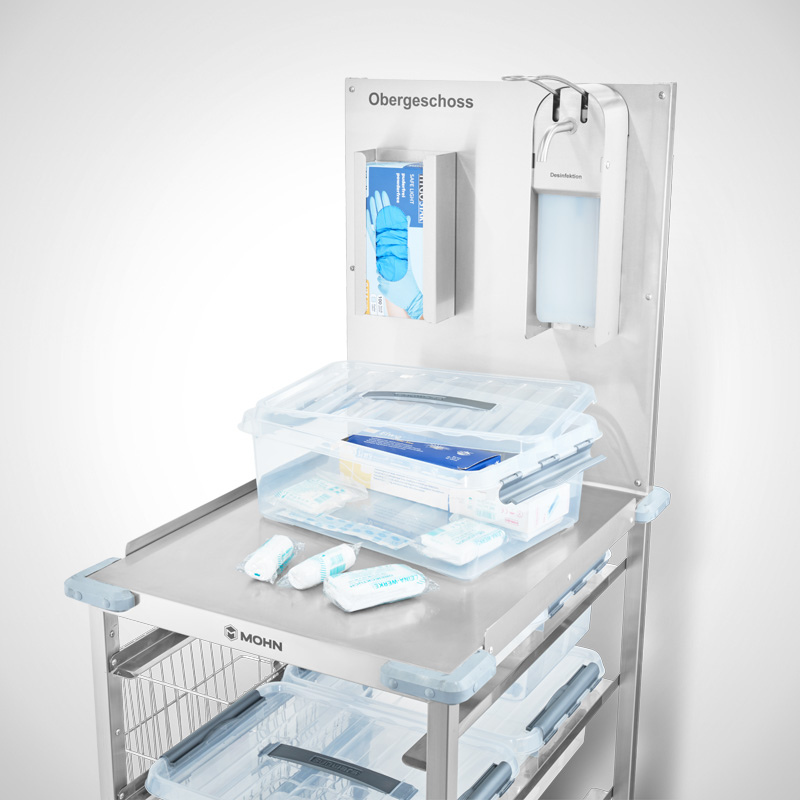

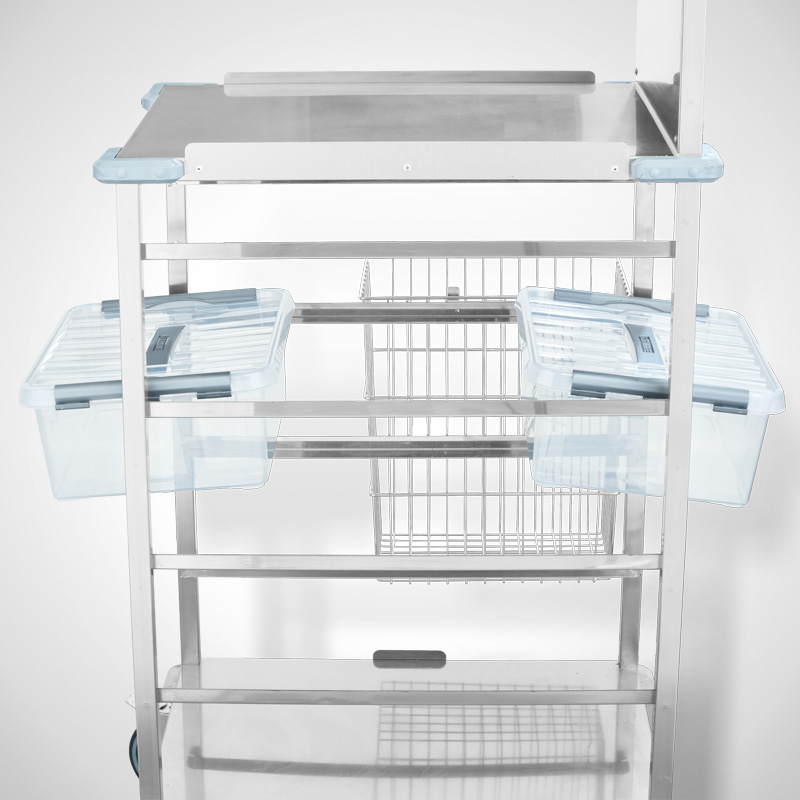

The trolley offers four open levels, which can be equipped with optional plastic boxes. This creates a practical organizational system: each patient can have a dedicated box for medication, dressings or personal care items – hygienically separated and always within reach. The upper shelf with back panel is complemented by useful holders such as a disinfectant dispenser, a glove dispenser and a side-mounted wire mesh waste bin.
Swivel castors with 125 mm diameter, two of them lockable, provide maneuverability and stability. Thread guards and zinc-coated housings ensure long-lasting functionality. All visible stainless steel surfaces are brushed and polished, making them particularly easy to clean and disinfect.
In addition to this model, we also manufacture customized ward or patient trolleys tailored to the individual needs and workflows of care facilities. This allows for practical solutions that support hygiene, organization and efficiency in everyday nursing practice.
