Storage cupboard

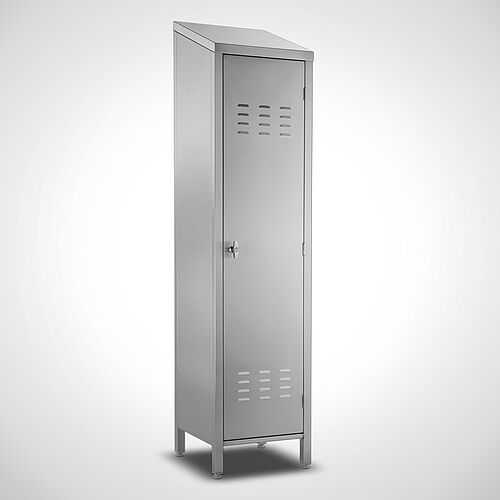

Type AS-TV
Universal use - shortened partition wall
- Fixed welded stainless steel version
- Surface polished stainless steel, grain 320, brushed profiles
- Cupboard body, closed on 3 sides
- Design in 1.0 mm material strength
- Sloping roof, 200 mm higher at the back, in “Hygienic design“
- 1 revolving door on the operator side

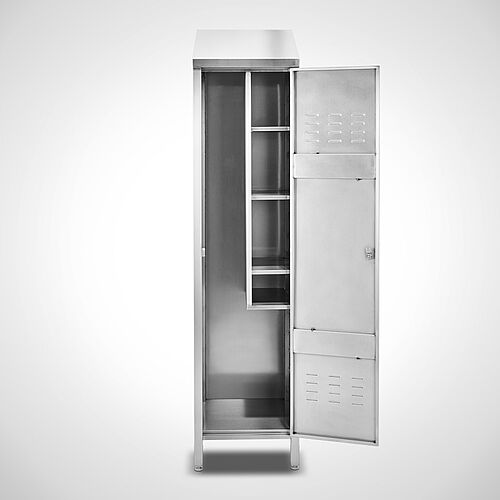

- Cupboard interior:
- With shortened partition wall
- With 3 height-adjustable storage shelves on the right side
- Spacious division compartment for brooms, scrubbing brushes as well as buckets
- Doors lockable by means of T-handle including profile cylinder lock
- 4 height-adjustable plastic screw feet (+/- 30 mm)
- Standard ground clearance: 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other executions on request.
Material
Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
Options
- 4 polyamide castors, Ø 125 mm (2 with stop), Art.-No. 99.90.01.50
- Revolving door made of MACROLON for storage cupboard type AS, Art. No. 49.00.19.06
