Locker with feet

Locker with feet
Type GS1-AF-ST-EU

Self-ventilation concept according to EU Directive and §34 Workplace Ordinance

  • Execution with 4 standing feet, ground clearance 150 mm
  • Various body and door colors available according to color overview
  • 2 compartment width (300 respectively 400 mm) available
  • Integrated pitched roof (200 mm higher at the back)
  • Outside of the door with imprint for name plate
  • Doors perforated (square perforation)
    (Hole pattern beginning underneath the hat shelf › private area!)
  • Right hinged doors, mounted on pivot pins
  • Twist-lock catch for padlock (on the part of the building site)

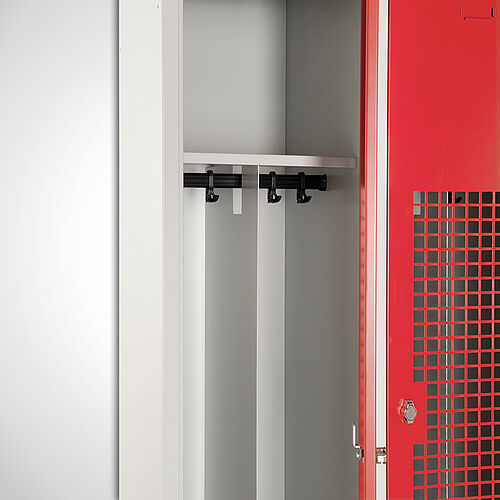

  • Every compartment with hat shelf, clothes rail + 3 slide bars
  • With centre partition for S/W separation
    (only with compartment width 400 mm)
  • Smooth shelf with ventilation holes

TypeCompartment
persons
Compartment
partition
Dimensions
W x D x H in mm
ComparePDF

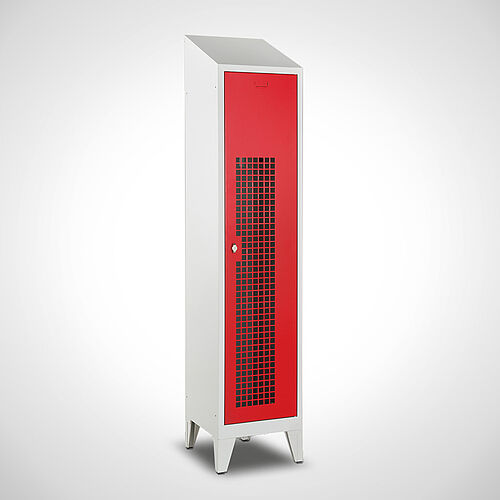

GS1-AF-ST-EU 1/31x 300 mmNo320 x 500 x 1850/ 205045.00.01.0045.00.01.00
GS1-AF-ST-EU 1/41x 400 mmYes420 x 500 x 1850/ 205045.00.01.0145.00.01.01

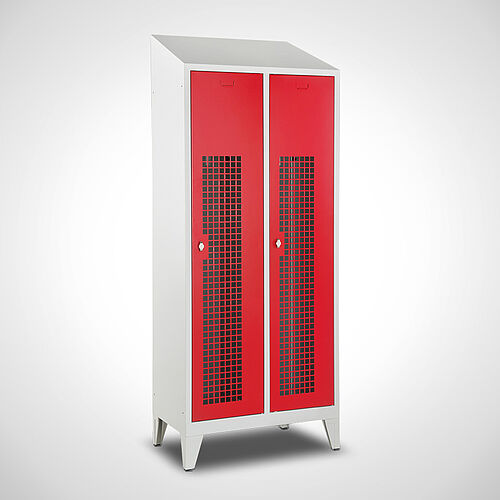

GS1-AF-ST-EU 2/32x 300 mmNo610 x 500 x 1850/ 205045.00.01.0245.00.01.02
GS1-AF-ST-EU 2/42x 400 mmYes810 x 500 x 1850/ 205045.00.01.0345.00.01.03

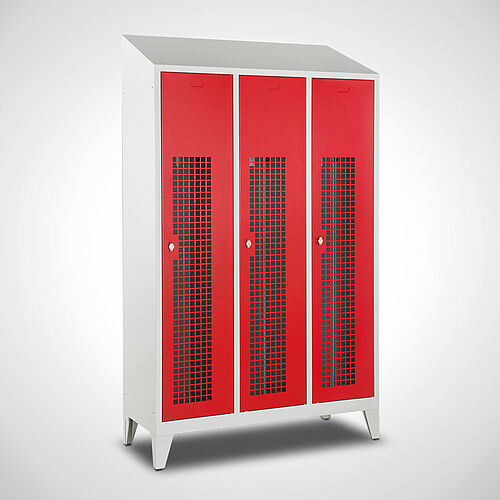

GS1-AF-ST-EU 3/33x 300 mmNo900 x 500 x 1850/ 205045.00.01.0445.00.01.04
GS1-AF-ST-EU 3/43x 400 mmYes1200 x 500 x 1850/ 205045.00.01.0545.00.01.05
GS1-AF-ST-EU 4/34x 300 mmNo1190 x 500 x 1850/ 205045.00.01.0645.00.01.06
GS1-AF-ST-EU 4/44x 400 mmYes1590 x 500 x 1850/ 205045.00.01.0745.00.01.07
GS1-AF-ST-EU 5/35x 300 mmNo1480 x 500 x 1850/ 205045.00.01.0845.00.01.08
Mechan. combination lock  04800704
Cylinder lock, simple 00000870
Cylinder lock locking system 00010010
Main key locking system 00001200
Plastic shoe shell 04500707
Number plate sticker 04800701
Number plate made of plastic 85020611
Number plate made of stainless steel 85010611
Damp interiors version (body electrolytically galvanised) 00800020
Shower gel + towel holder for compartment width 400mm (only available for right hinged doors)  04600771

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1721
608
8
Show Lightbox Compare
Comparedata

Material

Powder-coated steel sheet



Please note

Cloakroom lockers with a compartment width of 400 mm in combination with a centre partition per compartment are not compliant with the workplace directive (ASR Section 5 ASR 34/1-5 - Equipment of changing rooms). This option of a centre partition is merely a compromise solution for confined spaces.



Options

  • Padlock (brass), art.-no. 00.00.02.10
  • Mechan. combination lock, art.-no. 04.80.07.04
  • Cylinder lock, simple, art.-no. 00.00.08.70
  • Cylinder lock locking system, art.-no. 00.01.00.10
  • Main key locking system, art.-no. 00.00.12.00
  • Plastic shoe shell, art.-no. 04.50.07.07
  • Number plate sticker, art.-no. 04.80.07.01
  • Number plate made of plastic, art.-no. 85.02.06.11
  • Number plate made of stainless steel, art.-no. 85.01.06.11
  • Damp interiors version (body electrolytically galvanised), art.-no. 00.80.00.20**
  • 4 height-adjustable standing feet on request


**Damp interiors version:
for furniture in rooms with high humidity (class II). Design sheet steel electrolytically galvanized and powder coated. 5 years corrosion protection guarantee.

Color group I

without surcharge

Light grey

RAL 7035


Black grey

RAL 7021


Anthracite grey

RAL 7016


Volcanic grey

RDS 000 50 00

Grey metallic
Grey metallic

DB 703 glatt


Light blue

RAL 5012


Distant blue

RAL 5023

Color group II

without surcharge for fronts, if body belongs to color group I*

Gentian blue

RAL 5010


Lapis blue

RDS 270 20 29


Flame red

RAL 3000


Ruby red

RAL 3003


Pearl white

RAL 1013


Light green

RAL 6027


Water blue

RAL 5021


Moss green

RAL 6005

Color group III

without surcharge for fronts, if body belongs to colour group I*

Pastel yellow

RDS 095 90 30


Sulphur yellow

RDS 095 90 59


Sunny yellow

RDS 080 80 60


Yellow-orange

RAL 2000


Pastel green

RDS 110 90 20


Viridian green

RDS 110 80 60


Traffic white

RAL 9016


White aluminium

RAL 9006


Grey aluminium

RAL 9007

* Steel body: light grey RAL 7035 = door color without surcharge.
  Other color combinations at an additional charge: on request.

INFO The real colors could differ from the representations shown here.
