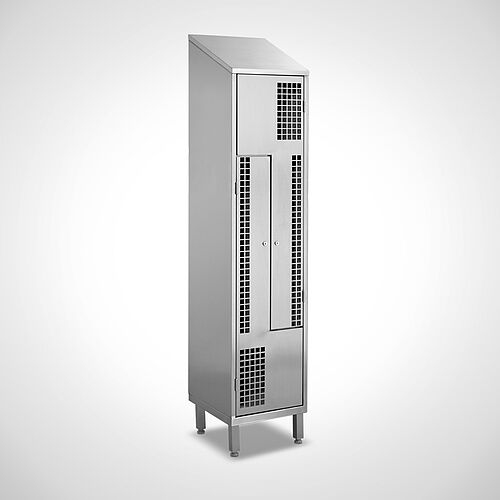

Z-locker with feet

Z-shape locker
Type GSZ-AF-VA-EU

Self-ventilation concept according to EU Directive and §34 Workplace Ordinance

  • Execution with 4 height-adjustable feet (+/- 15 mm), ground clearance 150 mm
  • Robust construction completely made of stainless steel
  • Each compartment with 2 doors in Z-shape
  • Right respectively left hinged doors, mounted on pivot pins
  • Doors perforated (square perforation)

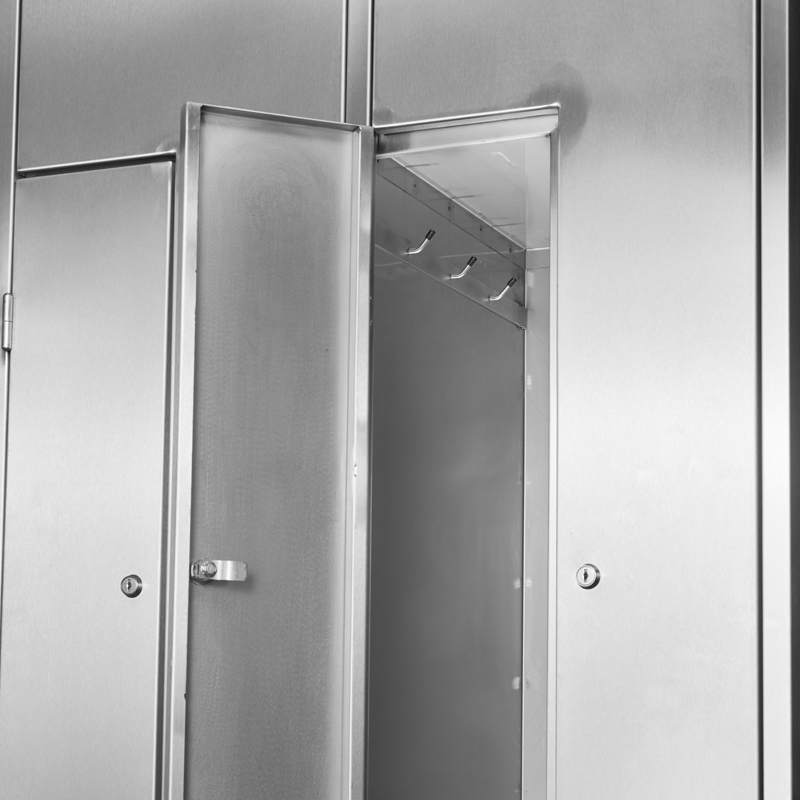

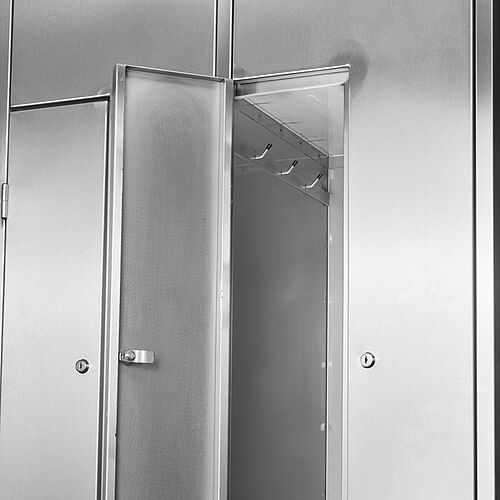

  • Inside door with box profile reinforcement for maximum stability
  • Twist-lock catch for padlock (on the part of the building site)
  • With pitched roof attachment, at the back 230 mm higher
  • Rear wall with ventilation holes
  • Clear measure per compartment:
    • W 160/350 x D 480 x H 1,225 mm
    • Height of the wide area H 340 mm
  • Every compartment with 3 hooks
  • Smooth shelf for easy interior cleaning

TypeCompartment
persons
Dimensions
W x D x H in mm
ComparePDF
GSZ-AF-VA-EU 1/41x 400 mm420 x 510 x 1850/205045.10.07.0245.10.07.02

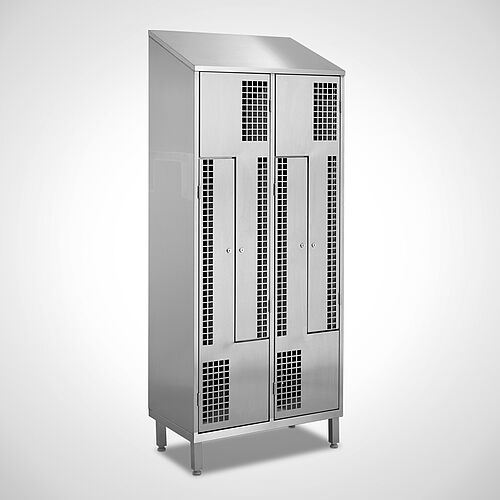

GSZ-AF-VA-EU 2/42x 400 mm810 x 510 x 1850/205045.10.07.0345.10.07.03
Special dimensions
Mechan. combination lock 04800704
Cylinder lock, simple 00000870
Cylinder lock locking system 00010010
Main key locking system 00001200
Number plate sticker 04800701
Number plate made of plastic 85020611
Number plate made of stainless steel 85010611
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1748
1296
8
Show Lightbox Compare
Comparedata

Material

Stainless steel furniture made of chrome-nickel steel 18/10 material no. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish



Options

  • Padlock (brass), art.-no. 00.00.02.10
  • Mechan. combination lock, art.-no. 04.80.07.04
  • Cylinder lock, simple, art.-no. 00.00.08.70
  • Cylinder lock locking system, art.-no. 00.01.00.10
  • Main key locking system, art.-no. 00.00.12.00
  • Plastic shoe shell, art.-no. 04.50.07.07
  • Number plate sticker, art.-no. 04.80.07.01
  • Number plate made of plastic, art.-no. 85.02.06.11
  • Number plate made of stainless steel, art.-no. 85.01.06.11
