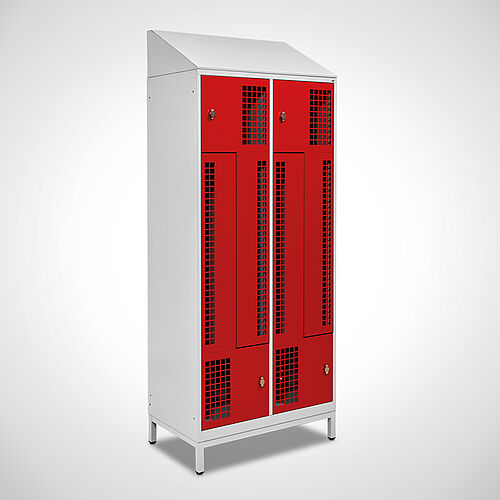

Z-locker with feet
Z-locker with feet
Z-shape locker
Type GSZ-AF-ST-EU
Self-ventilation concept according to EU Directive and §34 Workplace Ordinance
- Execution with 4 standing feet, ground clearance 150 mm
- Each compartment with 2 doors in Z-shape
- Various body and door colors available according to color overview
- Right respectively left hinged doors, mounted on pivot pins
- Doors perforated (square perforation)
- Twist-lock catch for padlock (on the part of the building site)
- With pitched roof attachment, at the back 230 mm higher
- Rear wall with ventilation holes
- Clear measure per compartment:
- W 160/350 x D 480 x H 1,225 mm
- Height of the wide area H 340 mm
- Every compartment with 3 hooks
- Smooth shelf for easy interior cleaning
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Scratch-resistant powder-coated sheet steel
Options
- Padlock (brass), art.-no. 00.00.02.10
- Mechan. combination lock, art.-no. 04.80.07.04
- Cylinder lock, simple, art.-no. 00.00.08.70
- Cylinder lock locking system, art.-no. 00.01.00.10
- Main key locking system, art.-no. 00.00.12.00
- Number plate sticker, art.-no. 04.80.07.01
- Number plate made of plastic, art.-no. 85.02.06.11
- Number plate made of stainless steel, art.-no. 85.01.06.11
- Damp interiors version (body electrolytically galvanised), art.-no. 00.80.00.20**
- 4 height-adjustable standing feet on request
**Damp interiors version:
for furniture in rooms with high humidity (class II). Design sheet steel electrolytically galvanized and powder coated. 5 years corrosion protection guarantee.
Color group I
RAL 7035
RAL 7021
RAL 7016
RDS 000 50 00
DB 703 glatt
RAL 5012
RAL 5023
Color group II
RAL 5010
RDS 270 20 29
RAL 3000
RAL 3003
RAL 1013
RAL 6027
RAL 5021
RAL 6005
Color group III
RDS 095 90 30
RDS 095 90 59
RDS 080 80 60
RAL 2000
RDS 110 90 20
RDS 110 80 60
RAL 9016
RAL 9006
RAL 9007
* Steel body: light grey RAL 7035 = door color without surcharge.
Other color combinations at an additional charge: on request.
INFO The real colors could differ from the representations shown here.
