Standard trolley with flat steel edge
Standard trolley with flat steel edge
Standard trolley
Type HBW-FS "Japan"
Standard-Trolley "japan" Design according to DIN 9797
- 2 different capacities with 200 liters and 300 liters
- Tightly welded flat steel edge all round
- Wall-thickness 2mm with 3mm floor-strengthening
- Two-sides with lifting-brackets
- 4 polyamide wheels with slide bearing, Ø 150 mm with tilting moment
- With beak-shaped spout
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Lifting and charging trolleys packed on IPPC pallets as standard
Material
Made of stainless steel 1.4301
Description

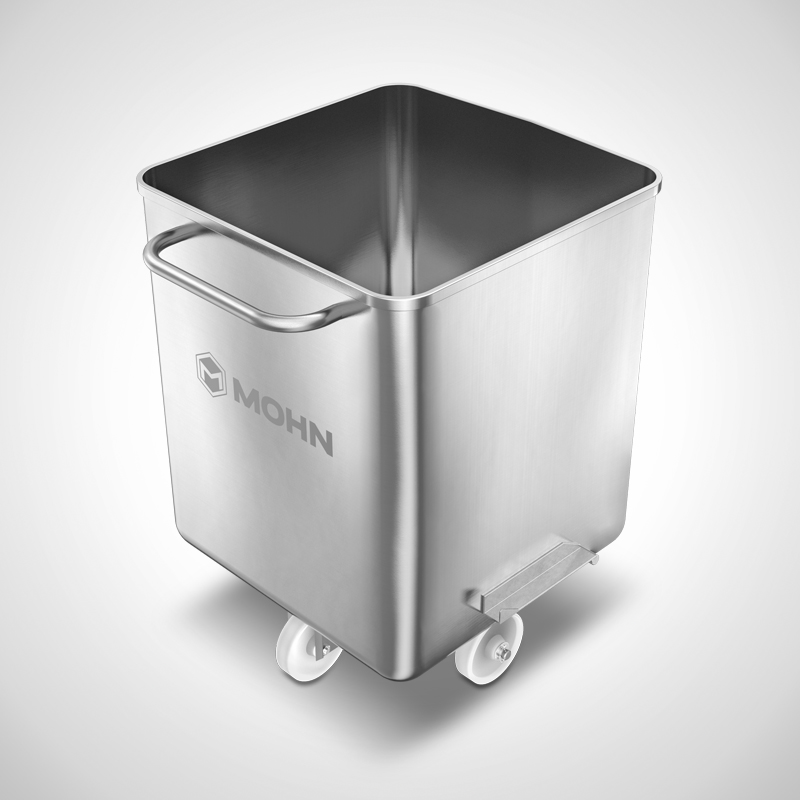

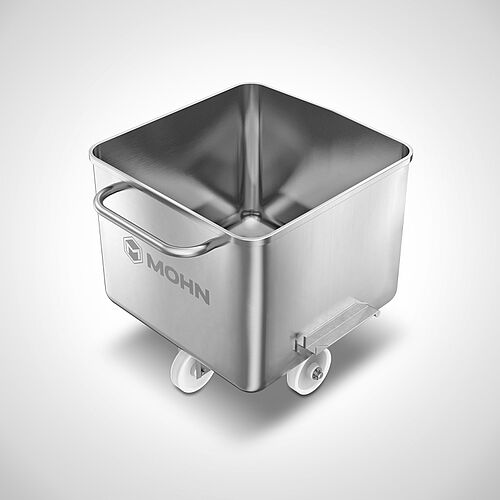

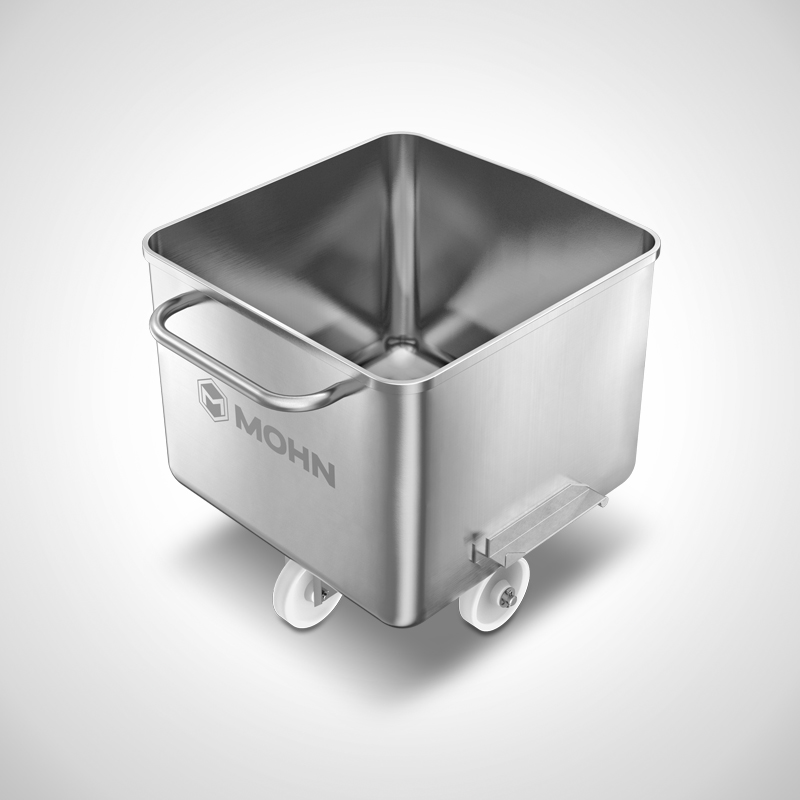

These transport trolleys are also known by the terms: Standard trolleys (in accordance with DIN 9797), cutter trolleys or container trolleys. The design corresponds to DIN standard 9797, but is constructed with a flat steel edge instead of a beaded edge and is suitable for the Japanese market.
According to DIN9797, this results in the following weights:
Weight for 200 litre capacity: Tare 40 kg +/- 0.25 kg
Weight for 300 litre capacity: Tare 50 kg +/- 0.25 kg
Options
- Cover Ecoline (corners square) for HBW-200 + 300, article no. 41.00.00.05
- Cover Highline (corners rounded) for HBW-200 + 300, article no. 41.00.00.29
- Cover Highline (2-divided, foldable) for HBW-200 + 300, article no. 41.00.00.16
- Cover storage cart (capacity: 10 pieces), article no. 41.00.00.30
- One-way made of polyprophylen-fleece, article no. 99.90.00.01
- Shim valve (DN50), article no. 99.80.01.65
- Milk screw cap (DN 50), article no. 15.00.00.09
- Ergo push handle, article no. 16.00.00.18
- Strainer insert (perforated, with 4 feet 100 mm), article no. 41.00.00.31
- Labeling, H: 90 mm (max. 10 letters or numbers) , article no. 90.00.00.91
- Cleaning rack for bins type HBW-S 200 + 300, article no. 41.00.00.12
