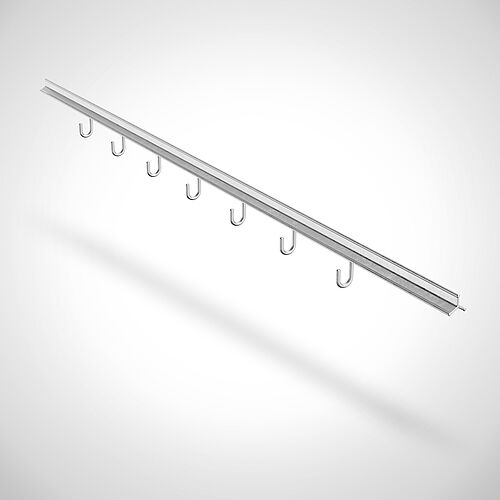

Stainless steel smoke sticks with hooks
Stainless steel smoke sticks with hooks
Stainless steel smoke sticks with hooks
type RS-E-H
quality product in heavy star profile design
- Triangular star profile pressed from round tube Ø 25 x 1.5 mm
- Both ends welded hygienically tight
- Version with 5, 6 or 7 welded hooks
- Distance between the hooks: 110 mm (7 hooks) | 128 mm (6 hooks) | 160 mm (5 hooks)
- Hook Ø 5 mm blunt, L 42 mm, projection: 25 mm
- Delivery length: 1000 mm (tolerance: +/- 1.00 mm)
- Load capacity: maximum 100 kg over 1000 mm (with even distribution)
- Support width: 24 mm
- Weights:
- 1000 mm length with 5 hooks approx. 866 g (tolerance: +/- 20 g)
- 1000 mm length with 6 hooks approx. 873 g (tolerance: +/- 20 g)
- 1000 mm length with 7 hooks approx. 880 g (tolerance: +/- 20 g)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Stainless steel 1.4301 (X5CrNi18-10, AISI 304, V2A)
PRODUCT InformationS
Our innovative smoke stick with welded hooks is the perfect solution for the demanding fish and meat industry as well as professional smokehouses. Made from high-quality 1.4301 stainless steel, it offers the highest quality, hygiene and resilience for your smoking process.
It not only guarantees safe and hygienic processing, but also optimises your smoking process through precise product positioning and ideal air circulation. Invest in quality and performance for your production process.
Special advantages:
- Hygienic design: By forming a tube into a star profile, there are no weld seams or folded seams, which makes cleaning easier and prevents the formation of bacteria.
- High load capacity: The maximum load capacity of 100 kg makes it possible to process large quantities of product.
- Flexibility: Selectable number of hooks (5, 6 or 7) for optimum customisation to your production requirements.
- Durability: The robust stainless steel material ensures a long service life even under demanding conditions.
Application benefits:
- Even product distribution: The welded-on hooks ensure constant spacing between the products.
- Optimum air circulation: The sophisticated design supports efficient smoke distribution in the smoking chamber.
- Easy handling: The fixed positioning of the hooks makes loading and unloading easier.
- Versatile in use: Ideal for various sausage and meat products as well as fish products.
General advantages:
- Corrosion-resistant and food-safe
- Easy to clean and maintain
- Resistant to high temperatures
- Meets the highest hygiene and quality standards of the food industry
Technical Data
| Weight | approx. 886 g (5 Haken) | approx. 873 g (6 Haken) | approx. 880 g (7 Haken) |
|---|
Reference Photos
