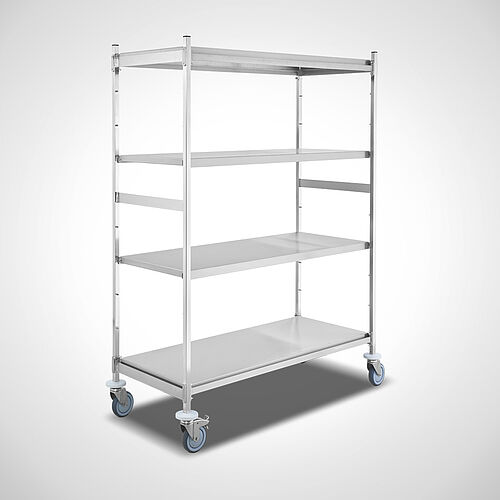

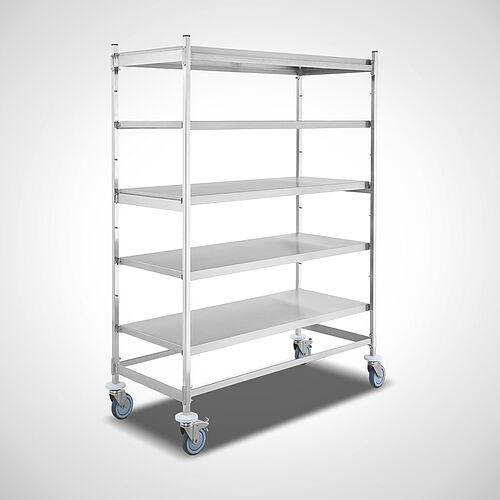

Shelf trolley Type MRW-G-100-140 (closed shelf), with 1 additional shelf, art. no. 49.20.00.34+49.20.01.34 Shelf trolley Type MRW-G-100-140 (closed shelf), with 1 additional shelf, art. no. 49.20.00.34+49.20.01.34
Shelf trolley Type MRW-G-100-140 (closed shelf), with 1 additional shelf, art. no. 49.20.00.34+49.20.01.34 Shelf trolley Type MRW-G-100-140 (closed shelf), with 1 additional shelf, art. no. 49.20.00.34+49.20.01.34

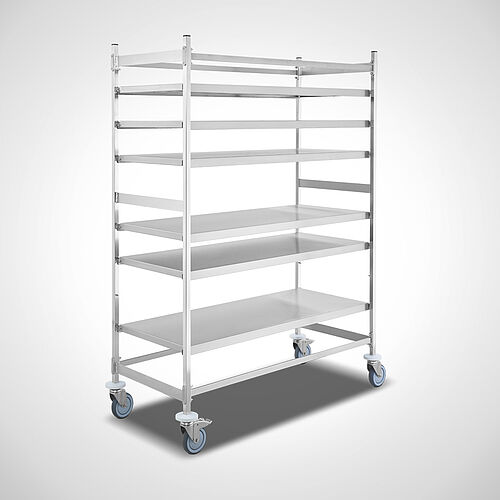

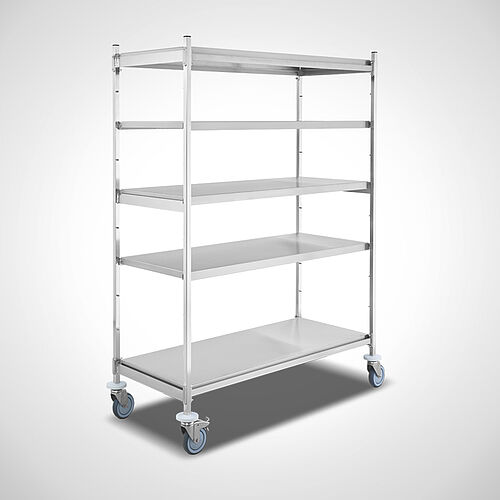

Shelf trolley Type MRW-G-100-140 (closed shelf), with 3 additional shelves, art. no. 49.20.00.34+49.20.01.34 Shelf trolley Type MRW-G-100-140 (closed shelf), with 3 additional shelves, art. no. 49.20.00.34+49.20.01.34
Shelf trolley Type MRW-G-100-140 (closed shelf), with 3 additional shelves, art. no. 49.20.00.34+49.20.01.34 Shelf trolley Type MRW-G-100-140 (closed shelf), with 3 additional shelves, art. no. 49.20.00.34+49.20.01.34
Shelf trolley - closed shelf for Type MRW-G Shelf trolley - closed shelf for Type MRW-G

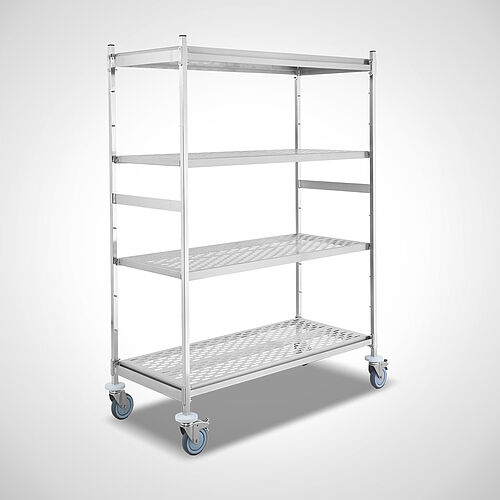

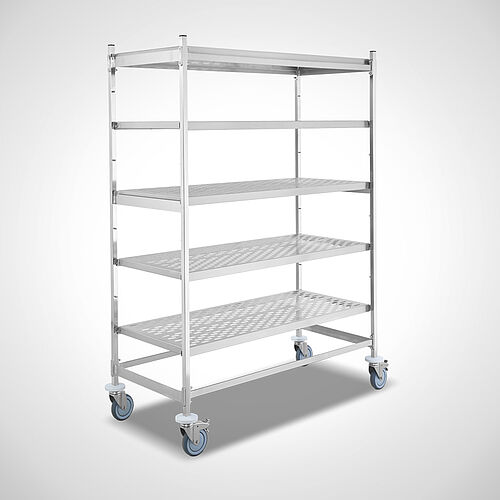

Shelf trolley Type MRW-O-100-140 (perforated shelf), with 1 additional shelf, art. no. 49.20.00.04+49.20.01.04 Shelf trolley Type MRW-O-100-140 (perforated shelf), with 1 additional shelf, art. no. 49.20.00.04+49.20.01.04
Shelf trolley Type MRW-O-100-140 (perforated shelf), with 1 additional shelf, art. no. 49.20.00.04+49.20.01.04 Shelf trolley Type MRW-O-100-140 (perforated shelf), with 1 additional shelf, art. no. 49.20.00.04+49.20.01.04

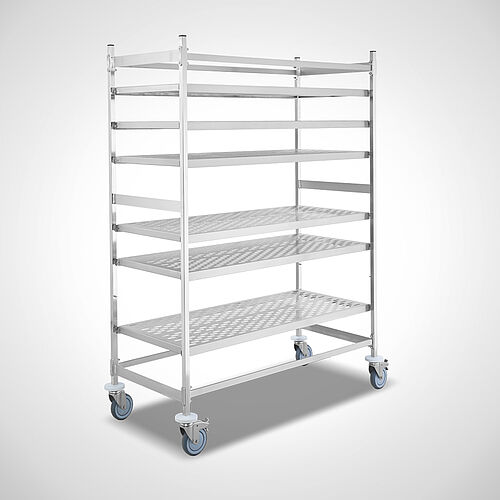

Shelf trolley Type MRW-O-100-140 (perforated shelf), with 3 additional shelves, art. no. 49.20.00.04+49.20.01.04 Shelf trolley Type MRW-O-100-140 (perforated shelf), with 3 additional shelves, art. no. 49.20.00.04+49.20.01.04
Shelf trolley Type MRW-O-100-140 (perforated shelf), with 3 additional shelves, art. no. 49.20.00.04+49.20.01.04 Shelf trolley Type MRW-O-100-140 (perforated shelf), with 3 additional shelves, art. no. 49.20.00.04+49.20.01.04

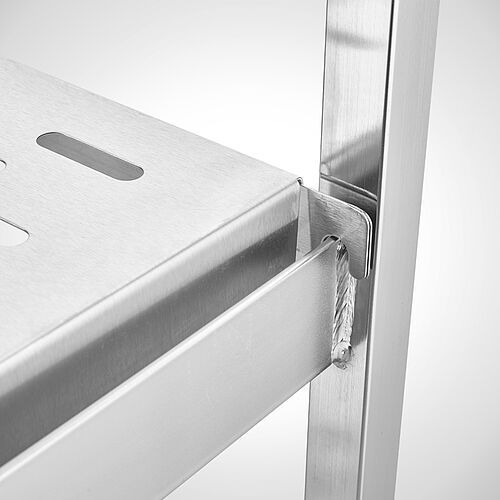

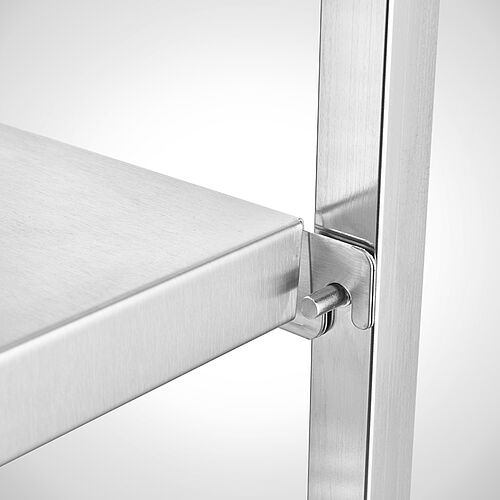

Detail: bolt-holder for shelf Detail: bolt-holder for shelf

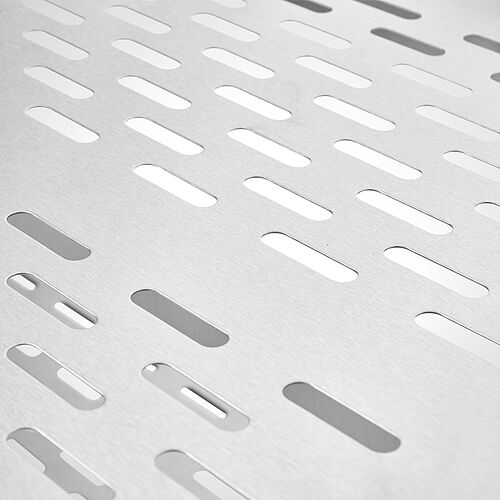

Detail: perforated shelf with long Detail: perforated shelf with long

Shelf trolley
Type MRW

OUR STANDARD SHELVING TROLLEY WITH HEIGHT-ADJUSTABLE SHELVES

  • 2 different shelf designs
  • Optionally closed shelf or with elongated holes
  • Shelf lengths: 600 mm to 1500 mm (in a 100 grid) *
  • Standard shelf depths: 400 mm to 600 mm
  • 3 shelves (closed or perforated) included
     (Number of shelves can optionally be expanded to up to 9 shelves)
  • Height adjustment grid of the shelves: 165 mm (hanging bolt)
  • Maximum total load per trolley: 400 kg
  • Shelf trolley height: 1830 mm
  • Mobile with 4 swivel castors Ø 125 mm, without brakes

TypeFloorsDescriptionDimensions
W x D x H in mm		PDF
Depth 400 mm*
MRW-O 60/403Perforated shelf600 x 400 x 183049.20.00.01
MRW-O 80/403Perforated shelf800 x 400 x 183049.20.00.02
MRW-O 90/403Perforated shelf900 x 400 x 183049.20.00.03
MRW-O 100/403Perforated shelf1000 x 400 x 183049.20.00.04
MRW-O 120/403Perforated shelf1200 x 400 x 183049.20.00.05
MRW-O 140/403Perforated shelf1400 x 400 x 183049.20.00.06
MRW-O 150/403Perforated shelf1500 x 400 x 183049.20.00.07
MRW-G 60/403Closed shelf600 x 400 x 183049.20.00.31
MRW-G 80/403Closed shelf800 x 400 x 183049.20.00.32
MRW-G 90/403Closed shelf900 x 400 x 183049.20.00.33
MRW-G 100/403Closed shelf1000 x 400 x 183049.20.00.34
MRW-G 120/403Closed shelf1200 x 400 x 183049.20.00.35
MRW-G 140/403Closed shelf1400 x 400 x 183049.20.00.36
MRW-G 150/403Closed shelf1500 x 400 x 183049.20.00.37
Depth 500 mm*
MRW-O 60/503Perforated shelf600 x 500 x 183049.20.00.11
MRW-O 80/503Perforated shelf800 x 500 x 183049.20.00.12
MRW-O 90/503Perforated shelf900 x 500 x 183049.20.00.13
MRW-O 100/503Perforated shelf1000 x 500 x 183049.20.00.14
MRW-O 120/503Perforated shelf1200 x 500 x 183049.20.00.15
MRW-O 140/503Perforated shelf1400 x 500 x 183049.20.00.16
MRW-O 150/503Perforated shelf1500 x 500 x 183049.20.00.17
MRW-G 60/503Closed shelf600 x 500 x 183049.20.00.41
MRW-G 80/503Closed shelf800 x 500 x 183049.20.00.42
MRW-G 90/503Closed shelf900 x 500 x 183049.20.00.43
MRW-G 100/503Closed shelf1000 x 500 x 183049.20.00.44
MRW-G 120/503Closed shelf1200 x 500 x 183049.20.00.45
MRW-G 140/503Closed shelf1400 x 500 x 183049.20.00.46
MRW-G 150/503Closed shelf1500 x 500 x 183049.20.00.47
Depth 600 mm*
MRW-O 60/603Perforated shelf600 x 600 x 183049.20.00.21
MRW-O 80/603Perforated shelf800 x 600 x 183049.20.00.22
MRW-O 90/603Perforated shelf900 x 600 x 183049.20.00.23
MRW-O 100/603Perforated shelf1000 x 600 x 183049.20.00.24
MRW-O 120/603Perforated shelf1200 x 600 x 183049.20.00.25
MRW-O 140/603Perforated shelf1400 x 600 x 183049.20.00.26
MRW-O 150/603Perforated shelf1500 x 600 x 183049.20.00.27
MRW-G 60/603Closed shelf600 x 600 x 183049.20.00.51
MRW-G 80/603Closed shelf800 x 600 x 183049.20.00.52
MRW-G 90/603Closed shelf900 x 600 x 183049.20.00.53
MRW-G 100/603Closed shelf1000 x 600 x 183049.20.00.54
MRW-G 120/603Closed shelf1200 x 600 x 183049.20.00.55
MRW-G 140/603Closed shelf1400 x 600 x 183049.20.00.56
MRW-G 150/603Closed shelf1500 x 600 x 183049.20.00.57
Special dimensions
Castor set with brake 39910014
Bumper roll for swivel castor 39910015
*Please note that the effective dimension is approx. 67 mm narrower than the nominal dimension!
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

* Except shelf lengths of 700, 1100 and 1300 mm.

Please note: The effective dimension is approx. 67 mm narrower than the nominal dimension.
Reserve technical changes.



MATERIAL

Rustproof stainless steel 1.4301
Stainless steel surfaces: Shelves: Grain 240 duplo finish
Shelving frame: Electrolytically polished



NOTE

Please note the load capacity of each shelf with an evenly distributed load according to the table.



Options

  • Castor set with brake, art. no. 39.91.00.14
  • Additional shelf (perforated or closed) for shelf trolleys on request
  • Bumper roll for swivel castor, art. no. 39.91.00.15



Description

Shelf stands

The shelf stands are made of square tubes 25 x 25 mm and are equipped with swivel castors in a stainless steel housing, diameter 125 mm and upper end caps made of plastic. To accommodate the unperforated shelves resp. perforated shelves are welded in a grid of 165 mm attachment pins. Depending on the rack height and field load, the rack stands are stiffened with 2 or 3 cross struts and completely electrolytically polished after production.

Straight connector

The straight connectors are made of rectangular tube 30 x 10 x 1.5 mm and have a flange plate made of flat material 85 x 20 x 5 mm on both sides for screw connection of the side parts (each flange plate with 2 screws and cap nuts). This ensures an extremely torsion-resistant overall construction of the shelf trolley.

Shelves and perforated shelves

Shelves made of CNS sheet metal, surface brushed, 40mm folded on all sides, the long sides have a complete folding inwards.

The 600 mm deep floors are reinforced from a length of 1200 mm with an additional beam. The shelf grates (perforated shelves) are made like the closed shelves and have slotted holes in the dimensions 45.5 x 10.5 mm. With corner mounting, the load of the load-bearing floors is reduced to 70% of the values ​​given below.



Load chart with evenly distributed load
Lengthclosed
shelf		perforated
shelf
  600 mm150 kg150 kg
  800 mm150 kg150 kg
  900 mm150 kg150 kg
1000 mm150 kg150 kg
1200 mm150 kg150 kg*
1400 mm150 kg150 kg*
1500 mm150 kg150 kg*
* at a depth of 600 mm, the load capacity is only 125 kg
