Sole-Master "Highline", wall-mounted, art. no. 10.00.00.24

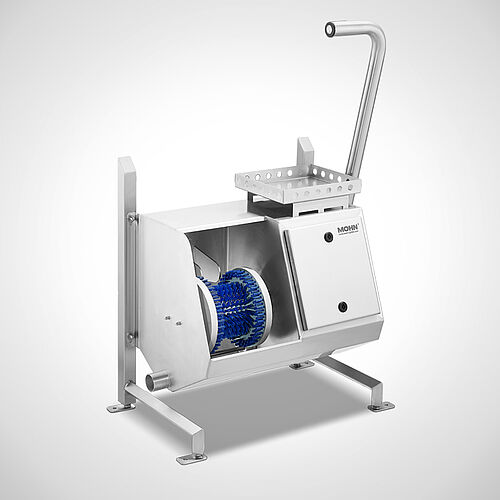

Sole-Master "Highline", art. no. 10.00.00.24 with optional rack

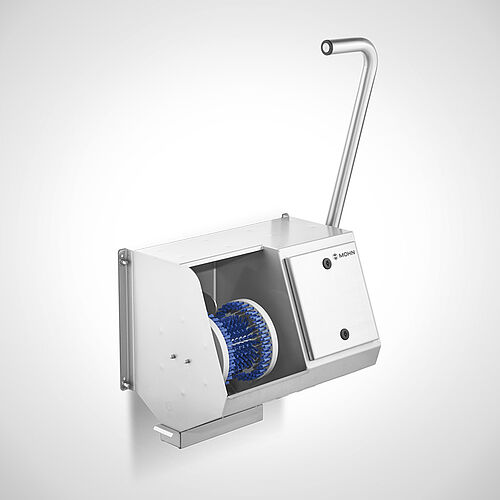

Sole-Master Dry "Highline", wall-mounted, art. no. 10.00.00.36 with dirt-drawer

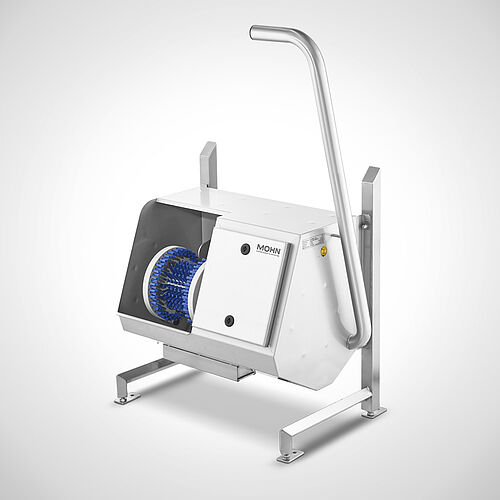

Sole-Master Dry "Highline", art. no. 10.00.00.36 with optional rack

Sole cleaning
Type Sole-Master Highline

Cleans soles + sole edges, as well as shoe upper leather

Hygienic-Design execution
Wall-mounted, optionally with feet
Brush roll with two additional lateral rotary-disk brushes
Adjustable dosing unit (not Type Sole-Master Dry)
Type Sole-Master Dry without water connection/-outlet
Type Sole-Master Dry with dirt-drawer
Integrated can holder

Type	Version	Dimensions W x D x H in mm	Compare	Art.-No. Please mark	PDF
Sole-Master	Wet	715 x 410 x 1025	10.00.00.24	10.00.00.2410000024	10.00.00.24
Sole-Master Dry	Dry	715 x 410 x 1025	10.00.00.36	10.00.00.3610000036	10.00.00.36
Special dimensions				00.00.00.1000000010

foot frame	49.10.01.06 49100106
We manufacture individually according to customer requirements

show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Comparedata

Material

Made of stainless steel 1.4301

Function

A horizontally positioned rotating brush with two laterally arranged disk-like brushes warrant a trouble-free cleaning of soles and sole edges.

Furthermore, the complete shaft leather can be systematically cleaned from contamination with the brush. Start of the brush roll rotation by manual button.

Through a nozzle unit sole and edge brushes are simultaneously sprayed with cleaning detergent and water in a well-aimed manner. Dosage of cleaning detergent is adjustable by means of a dosage system.

Design Sole-Master-Dry

The Sole-Master-Dry is especially released for food processing industries (e.g. bakeries) where no water spreading is allowed. This machine is equipped with a removable crumble-tray instead of the dosage system and the water inflow.
