Sink unit cabinet with drawers
Sink unit cabinet with drawers

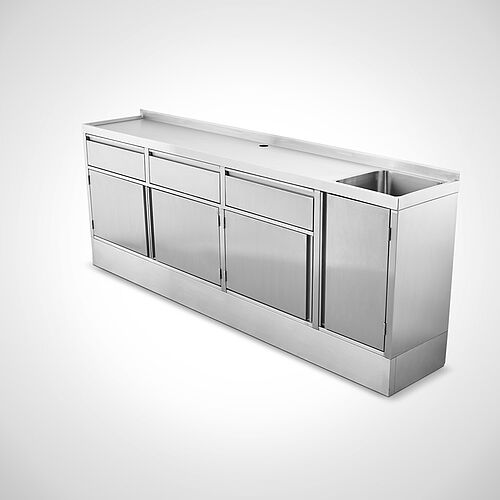

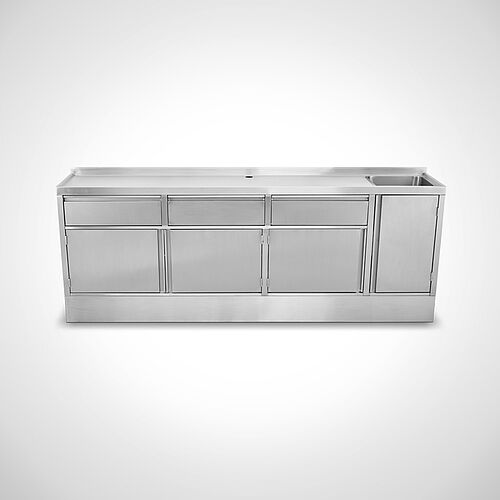

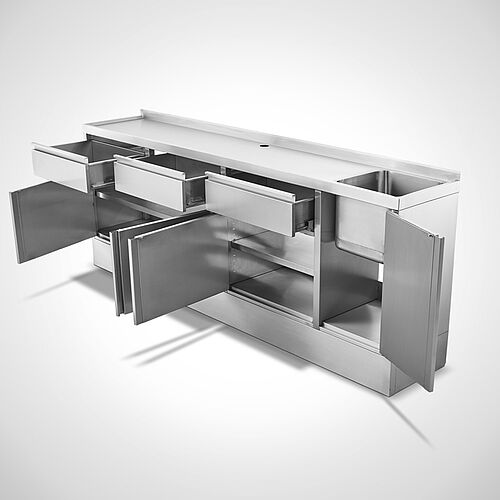

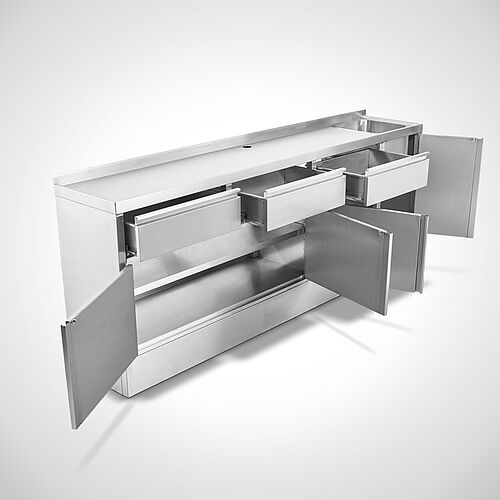

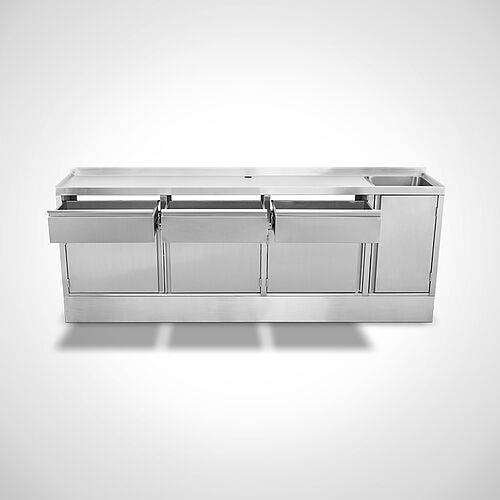

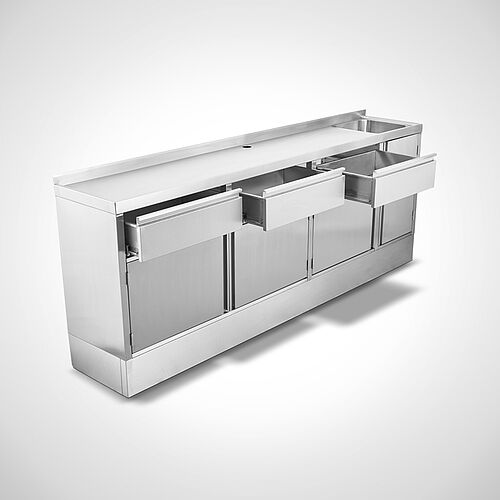

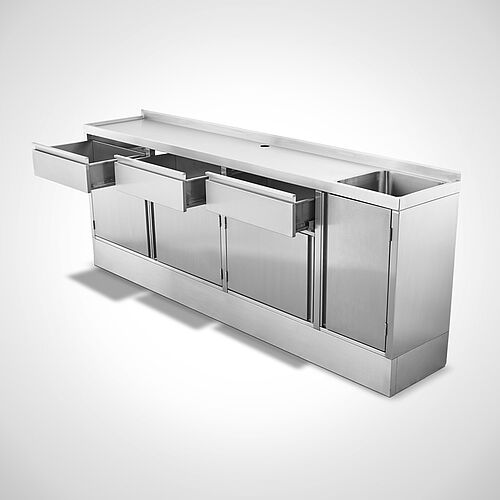

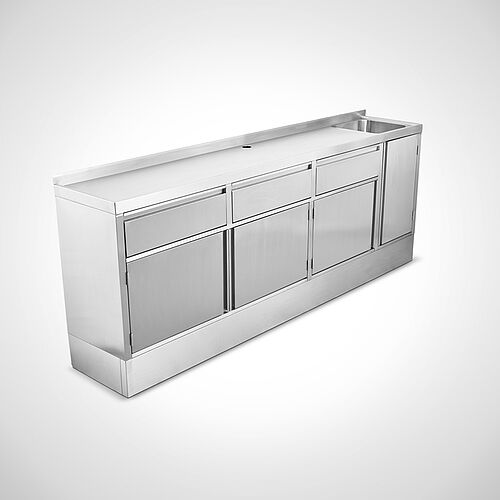

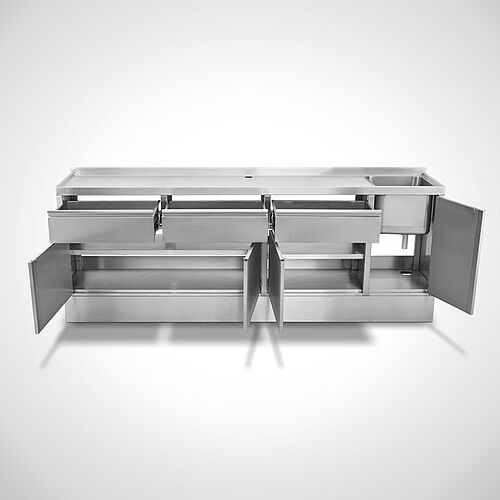

Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Stainless steel sink cabinet special design with drawers, hinged doors, 1 basin and baseboard, ID 21-63749.8
Sink cabinet
Type SPS-1B/MA-F SON
Robust Industrial CUSTOM MADE sink cabinet
- Robust design completely made of stainless steel
- Solid square profile tube frame (40 x 40 x 1,5 mm)

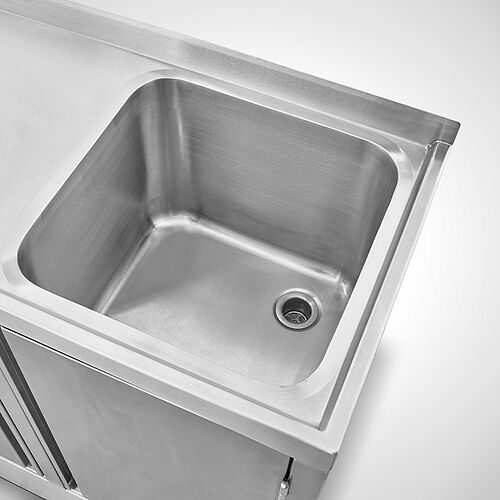

- Sink unit cabinet with 1 sink (left or right side) with standpipe + valve (2")
- Work top with backsplash, otherwise folded on 3 sides
- Worktop also available with beaded and circumferential, rounded edges
- Below the worktop optionally with drawers, height 200 mm
- Sink cover optionally with Ø hole for optional mixing tap / dishwashing shower
- Smooth drip-off surface area (standard) or coined (option) available
- Drip-off surface area available on the right or left
- Sink cabinet base 3-sided closed, backside open for utilities
- Frontside optional with double-walled hinged doors or sliding doors
- 3-sided plinth, 30mm indented, behind wit 4 height-adjustable plastic (level compensation +/- 15 mm)
- Ground clearance 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Sink cabinets are made to measure and your ideas.
Supplied without mixing taps, fittings, dishwashing shower and accessories, such as siphon, angle valves, supply lines, hoses, small parts, etc.
Material
Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish.
Options
- Coined dripping surface instead of smooth dripping surface on request
- Tap hole Ø (with mixing tap/ dishwashing shower on the building site) on request
- Mixing taps on request
- Dishwashing shower on request
