Type EHMB
SUITABLE FOR SINKS AND PART WASHBASINS
- 1-hole execution for stand-mounting
- Low pressure or high pressure mixing taps
- Faucet can be operated using manual lever operation
- Depending on the model with swivel spout or pull-out shower hose
- Depending on the model with long (elbow) or short operating lever
- Cold / warm adjustment, infinitely variable
- Incl. on-site water connection pipes in accordance with DVGW
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other versions (e.g. 2-hole faucets/mixer taps or for wall mounting) on request.
Material
Chromed brass
INFORMATIONS

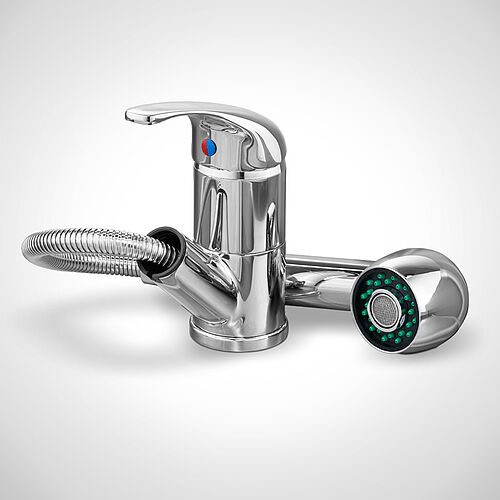

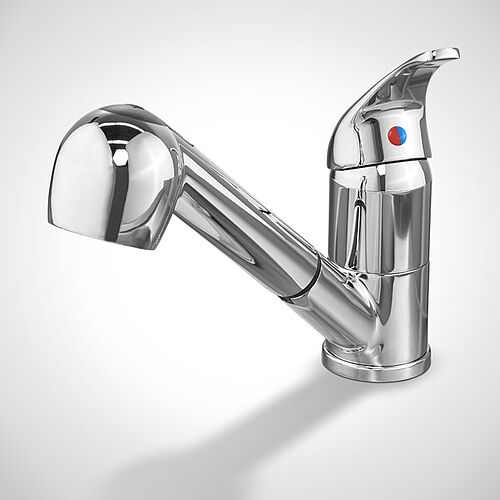

Type EHMB-1
- Low pressure tap with swivel spout
- Mixer tap with pull-out shower hose
- Brand cartrigde, outside diameter: 50mm

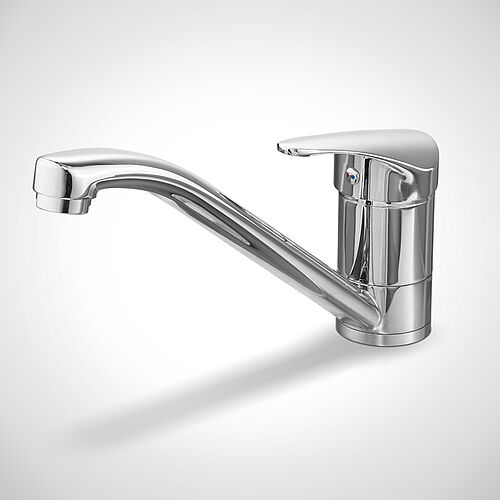

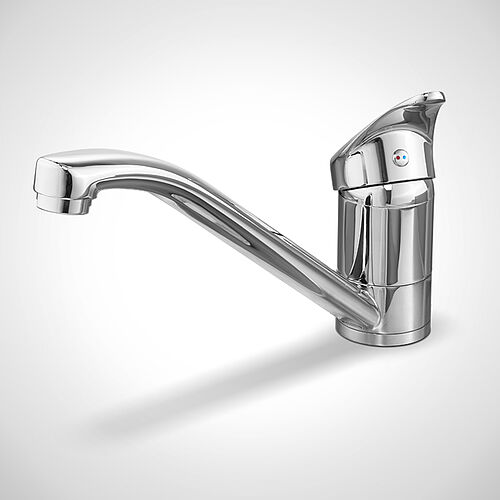

Type EHMB-2
- High pressure tap with swivel spout
- Hand-control lever, L: 100 mm
- Single hole installation, outside diameter: 48mm

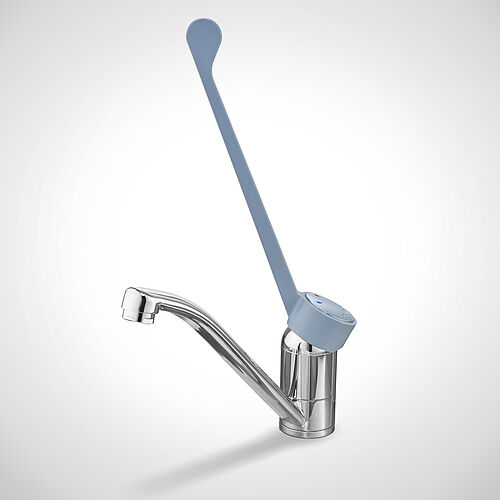

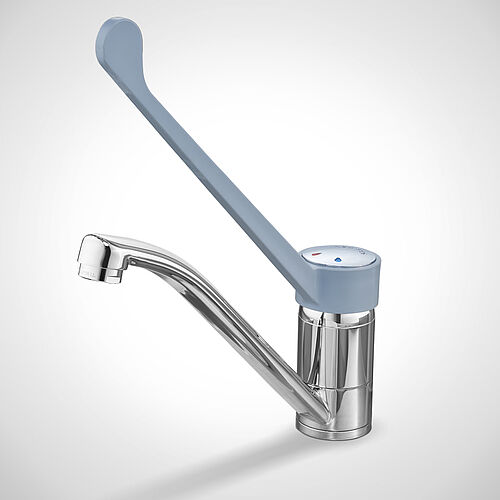

Type EHMB-3
- High pressure tap with swivel spout
- Elbow control lever made of plastic (PAH-free)
- Single hole installation, outside diameter: 50mm
- Water passage: 30 ltr./min
Technical Data
| Water outflow height | 130mm (EHMB-1)/ 145 mm (EHMB-2)/ 180 mm (EHMB-3) |
|---|---|
| Faucet width | 240mm (EHMB-1 + EHMB-3)/ 250mm (EHMB-2) |
| Faucet radius | 200mm |
| Faucet height | 180mm (EHMB-1)/ 145 mm (EHMB-2)/ 320 mm (EHMB-3) |
