Eccentric drain valve
Eccentric drain valve

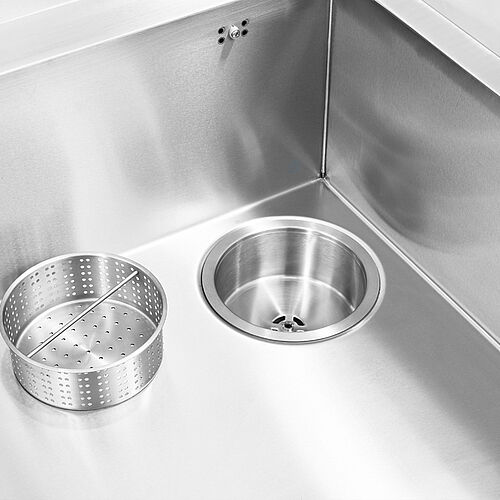

Eccentric drain valve with sieve basket for coarse dirt filtration Type ALV-EXZ, art. no. 93.00.00.04

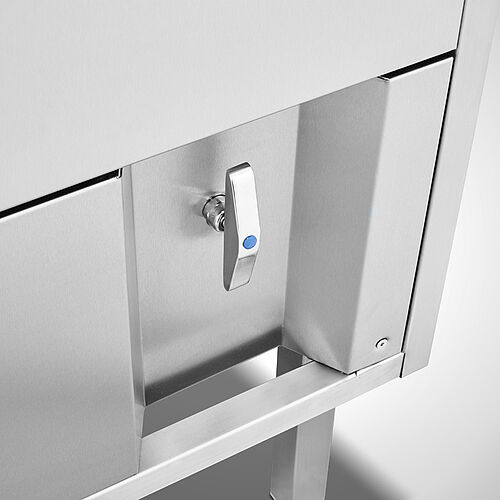

Eccentric drain valve ( Comfortable drain valve operation control ) Type ALV-EXZ, closed position, art. no. 93.00.00.04

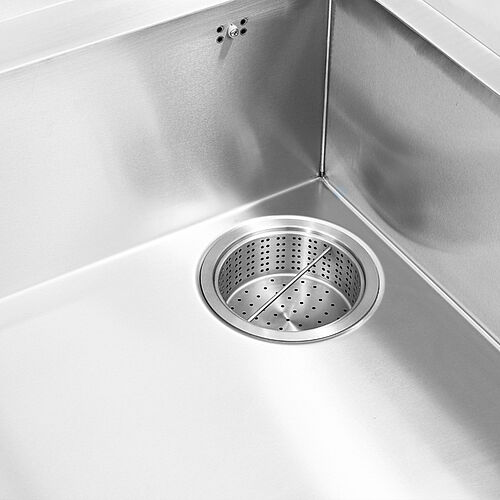

Eccentric drain valve with sieve basket for coarse dirt filtration Type ALV-EXZ, art. no. 93.00.00.04

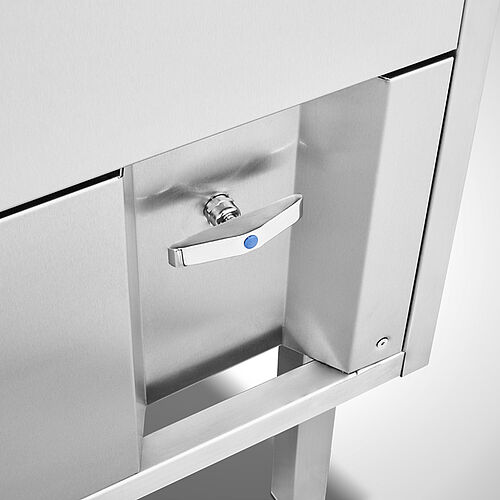

Eccentric drain valve ( Comfortable drain valve operation control ) Type ALV-EXZ, open position, art. no. 93.00.00.04
Eccentric drain valve set
Type ALV-EXZ
Comfortable drain valve operation control avoids contact with dirty water
- Including sieve basket for coarse dirt and drain valve
- Removable sieve basket with 1.6 l volume, Ø 169 mm
- Robust eccentric operation (drain valve operation)
- Eccentric rotary catch on the front of the sink unit body or sink panel
- Drain: 1 1/2"
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Delivery takes place without siphon and pipes.
Material
Partially made of stainless steel 1.4301
InformatioN
The water in the sink is dammed up or drained off with the valve ( sieve basket valve) in the bottom of the sink.
The eccentric actuation is the comfort solution: it can be recognised by the eccentric rotary bolt on the front body of the sink unit or the basin cover. A rotary movement opens or closes the valve in the basin bottom. This means you do not have to reach into the dirty water with your hand when you want to drain the water after rinsing or washing up.
Technical Data
| Drain | 1 1/2" |
|---|---|
| Volume | 1,6 Liter (sieve basket) |
Reference Photos
Downloads
Video
Function video eccentric drain valve type ALV-EXZ, art. no. 93.00.00.04
Function video eccentric drain valve type ALV-EXZ, art. no. 93.00.00.04
