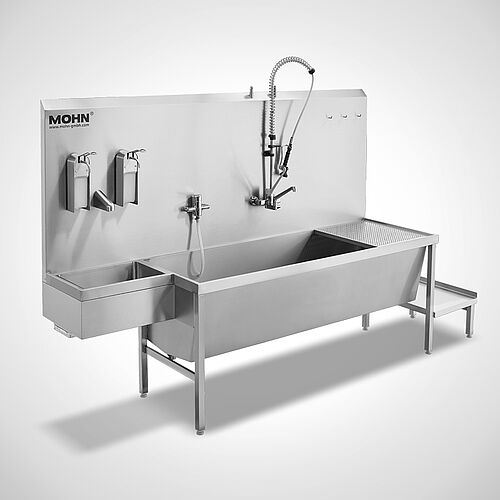

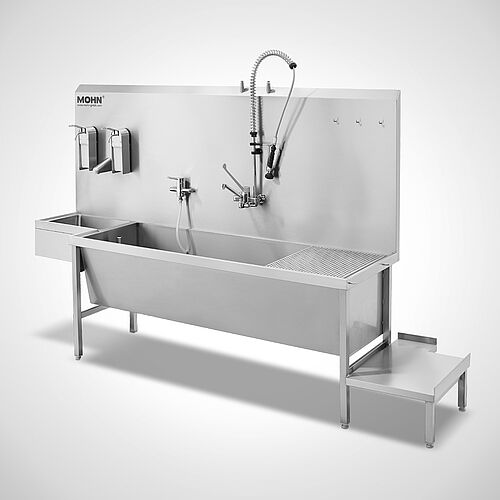

Parts washing station: large + washbasin
Parts washing station: large + washbasin
Parts washing station
Type TW-G/S HWB 270-75
For cleaning of knife baskets, stainless steel gloves and other small parts
- Firmly welded version
- Left-hand wash basin with sensor tap
- Right-hand washing trough, width approx. 2000 mm
- Basin below with sloping bottom, slope to the left
- Drain (1 1/2 "AG) on the basin bottom, on the left (therefore more gradient to the drain)
- Including 500 mm perforated drip tray, removable
- Drip tray lying on top by means of 4 bolts, placed on the construction
- Right side of the basin with suspension for perforated plate
- Rear wall: 1000 mm height
- 3 hooks for cleaning utensils on the rear wall
- With an open hygienic stand construction, floor clearance 300 mm
- Height-adustable screwing feet for level compensation
- Base frame right hand with additional shelf W 500 x D 750 x H 300 mm
- Media connections from above (cold + warm water)
>> Internal distribution to extraction points for dish washer and single-lever mixer
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
8254
5071
8
Show Lightbox Compare Comparedata
Delivery without 2-hole mixing tap, dish shower, fittings and soap- and disinfection dispenser (optional).
Other dimensions or designs on request. We manufacture individually according to customer requirements
Material
Made of rustproof stainless steel 1.4301
Options
- Dish shower, 2-hole wall, art. no. 93.00.00.36
- 2-hole single-lever mixer (wall) on request
- Soap and disinfection dispenser Type USP-O, art. no. 18.00.00.15
