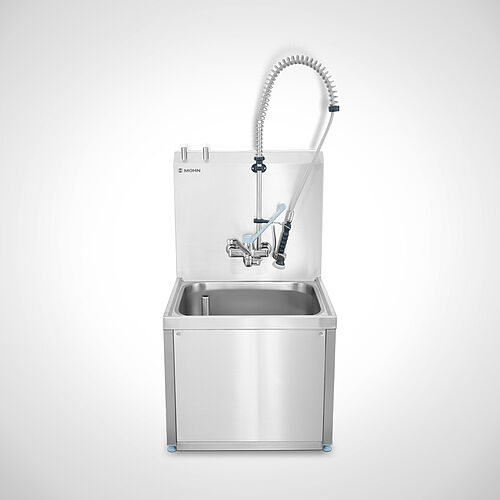

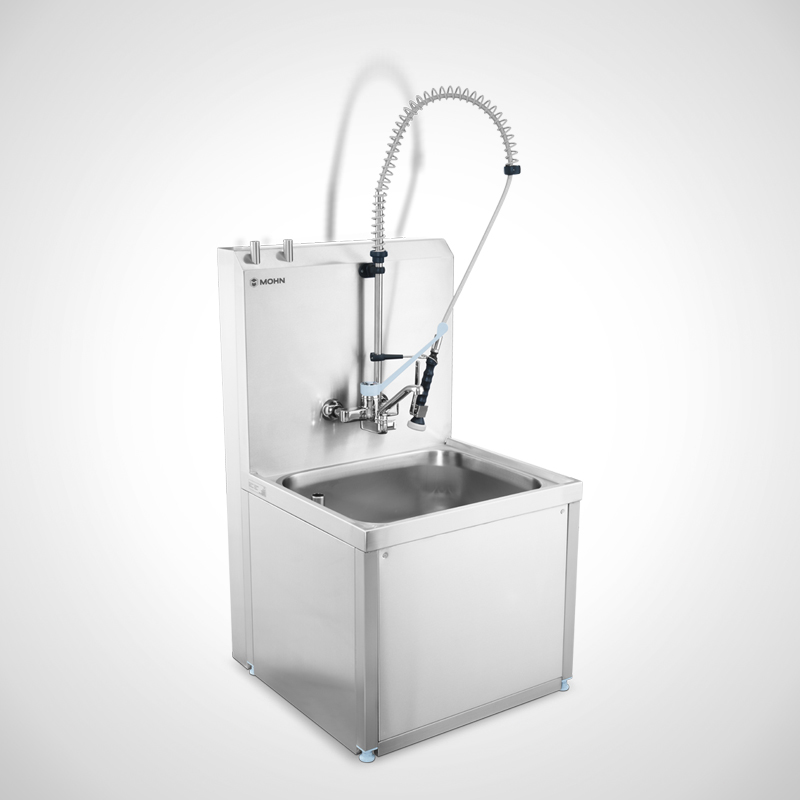

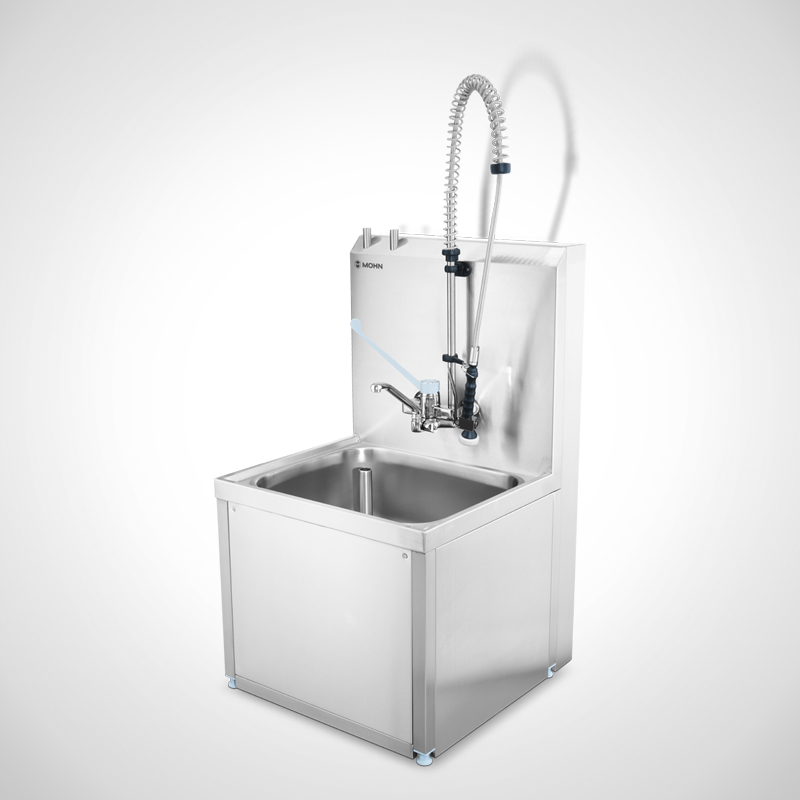

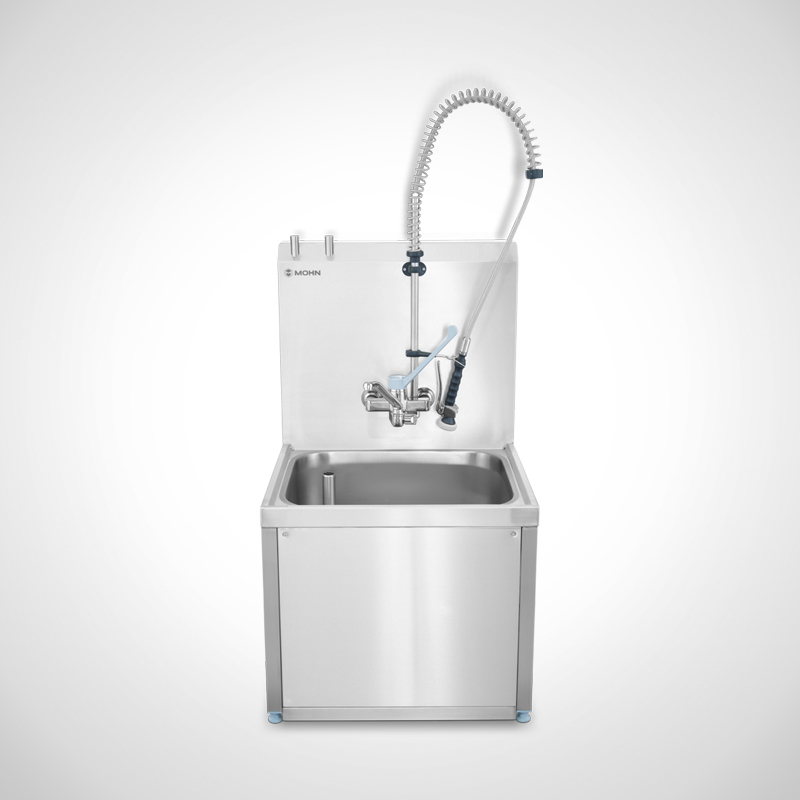

Parts washing station with feet, fully covered Type TW-S 60-50 SON with optionally dish shower, art. no. 22-65037-3.1+93.00.00.36
Parts washing station with feet, fully covered Type TW-S 60-50 SON with optionally dish shower, art. no. 22-65037-3.1+93.00.00.36
Parts washing station
Type TW-S 60-50 SON
For cleaning of knife baskets, stainless steel gloves and other small parts
- Stable, firmly welded industrial version

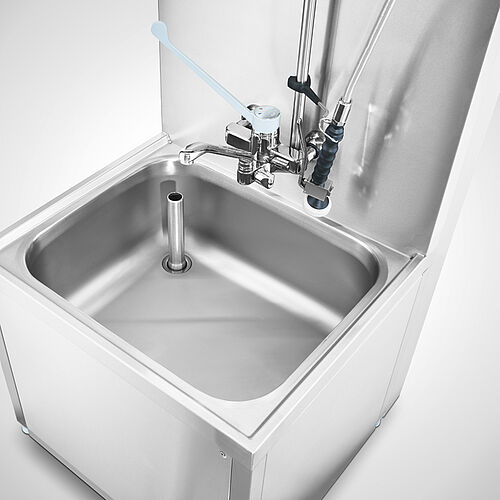

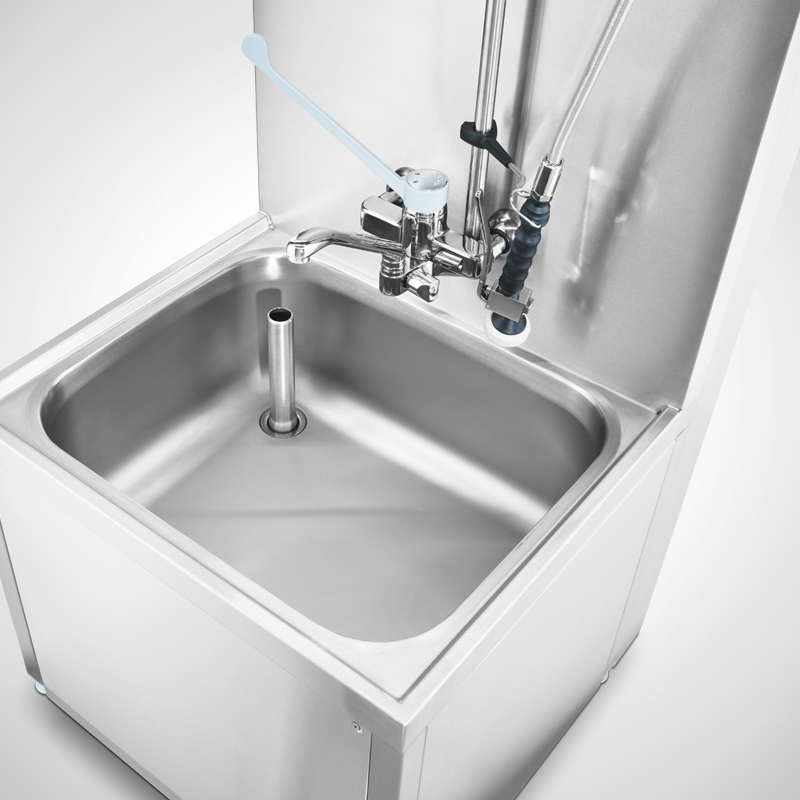

- Stainless steel basins, W 600 x D 500 x H 200 mm, 3-sides covered
- Drain 2" (back right)
- Rear wall: 600 mm height with 2 drillings, Ø 21 mm
for optional dish shower - Rear side with permanently welded wall spacers (100 mm)
- Wall spacers covered with stainless steel sheet
- Media connections 1/2" from above (cold + warm water)
>> Internal distribution to extraction points for dish washer - 4 height-adustable screwing feet for level compensation
- Feet rear 50 mm indented
- Substructure or basin covered on 3 sides up to the floor area,
front side with unscrewable inspection plate - Delivery without dish shower and fittings (optional)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
8711
4619
8
Show Lightbox Compare Comparedata
Other dimensions or designs on request. Delivery without accessoires.
Material
Made of rustproof stainless steel 1.4301
Option
- Dish shower, 2-hole wall, art. no. 93.00.00.36
Technical Data
| Drain | 2" outer thread (back right) |
|---|---|
| Water supply | Cold water + hot water (1/2" inside thread ) |

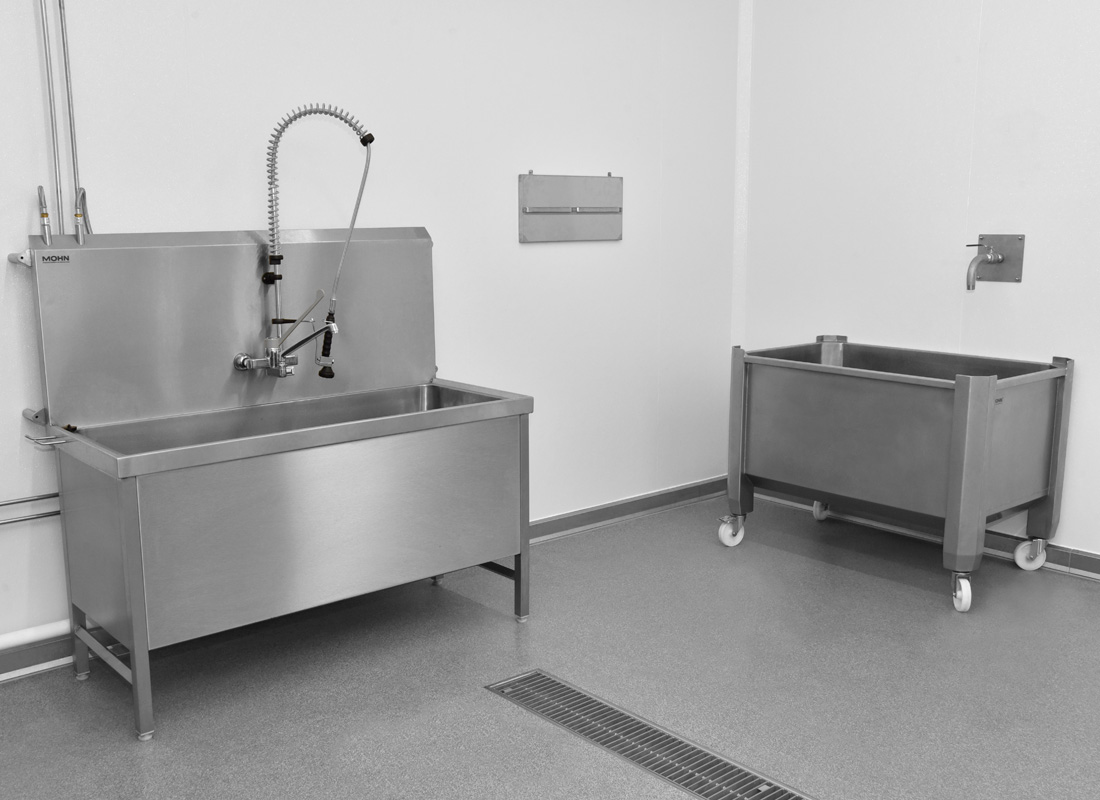

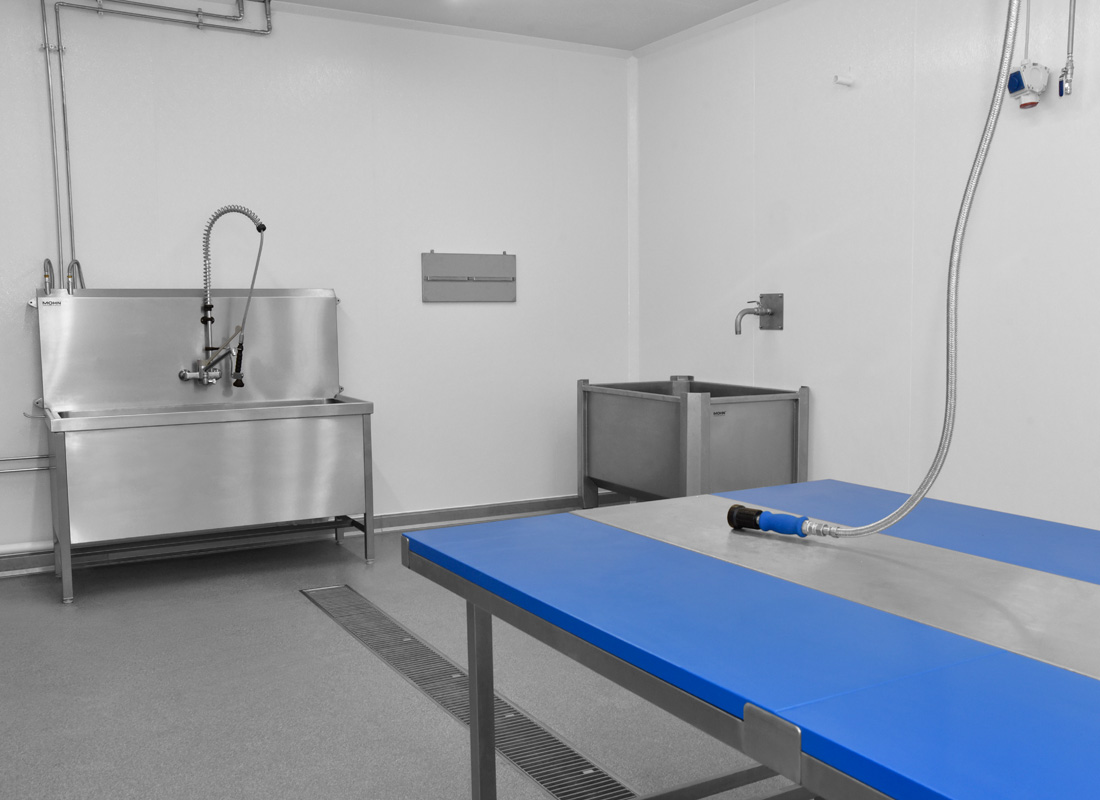

Reference Photos
