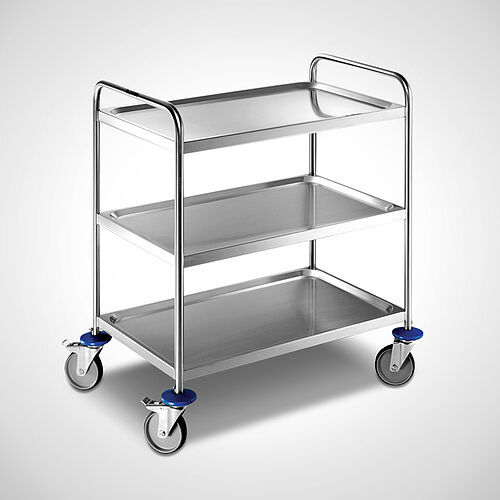

Type SW 10/6-3, art. no. 43.00.01.11

Type SW 10/6-3, art. no. 43.00.01.11

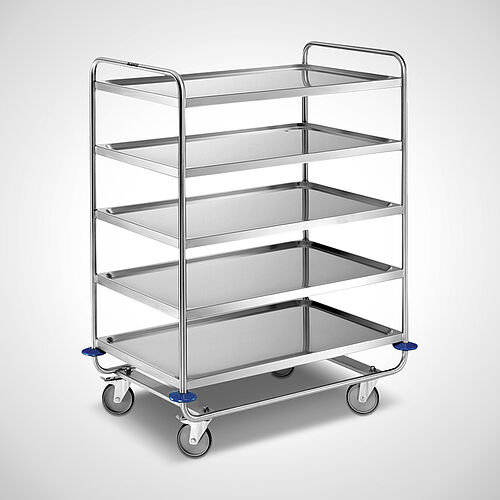

Type SW 10/6-5, art. no. 43.00.01.13

Type SW 10/6-5, art. no. 43.00.01.13

Serving trolley
Type SW "Highline"

ROBUST HIGHLINE DESIGN for a long life

Robust Highline versions with 2 or 3 moulded shelves
Various moulded shelves dimensions available
Moulded shelves with revolving, increased edge
Noise impairding, anti-drone sheet below every moulded shelves
Moulded shelves with rolled-up edges to avoid injuries
Moulded shelves with tubular-frame, fully welded
4 steering rolls with skirting protection, Ø 125mm, 2 with stops

Type	shelves	shelf dimensions in mm	floors distance	Dimensions W x D x H in mm	Compare	Art.-No. Please mark	PDF
SW 6/4-2	2	600 x 400	585 mm	700 x 500 x 950	43.00.01.00	43.00.01.0043000100	43.00.01.00
SW 6/4-3	3	600 x 400	275 mm	700 x 500 x 950	43.00.01.01	43.00.01.0143000101	43.00.01.01
SW 8/5-2	2	800 x 500	585 mm	900 x 600 x 950	43.00.01.02	43.00.01.0243000102	43.00.01.02
SW 8/5-3	3	800 x 500	275 mm	900 x 600 x 950	43.00.01.03	43.00.01.0343000103	43.00.01.03
SW 9/5-2	2	900 x 550	585 mm	1000 x 650 x 950	43.00.01.06	43.00.01.0643000106	43.00.01.06
SW 9/5-3	3	900 x 550	275 mm	1000 x 650 x 950	43.00.01.07	43.00.01.0743000107	43.00.01.07
SW 10/6-2	2	1000 x 600	585 mm	1100 x 700 x 1000	43.00.01.10	43.00.01.1043000110	43.00.01.10
SW 10/6-3	3	1000 x 600	275 mm	1100 x 700 x 1000	43.00.01.11	43.00.01.1143000111	43.00.01.11

Board reinforcement, bracing underneath the board for maximum stability	43.00.01.21 43000121
Ergonomic push-handle on request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Comparedata

Other executions on request.

Material

Made of stainless steel 1.4301

Options

Ergonomic push-handle on request
Nodal-sheets for max. stability on request

Technical Data

Loading capacity	120 kg / 160 kg (SW 10/6-2) / 200 kg (SW 10/6-3 up to 10/6-5)
