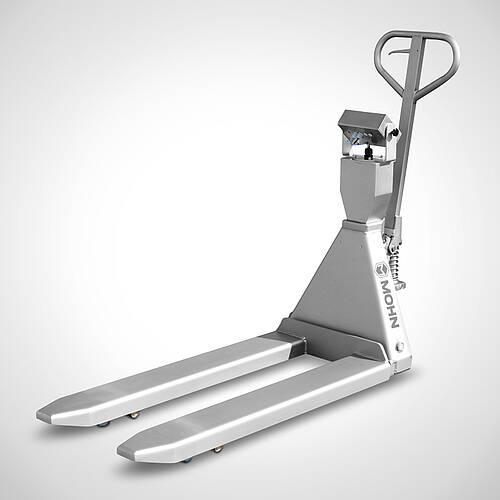

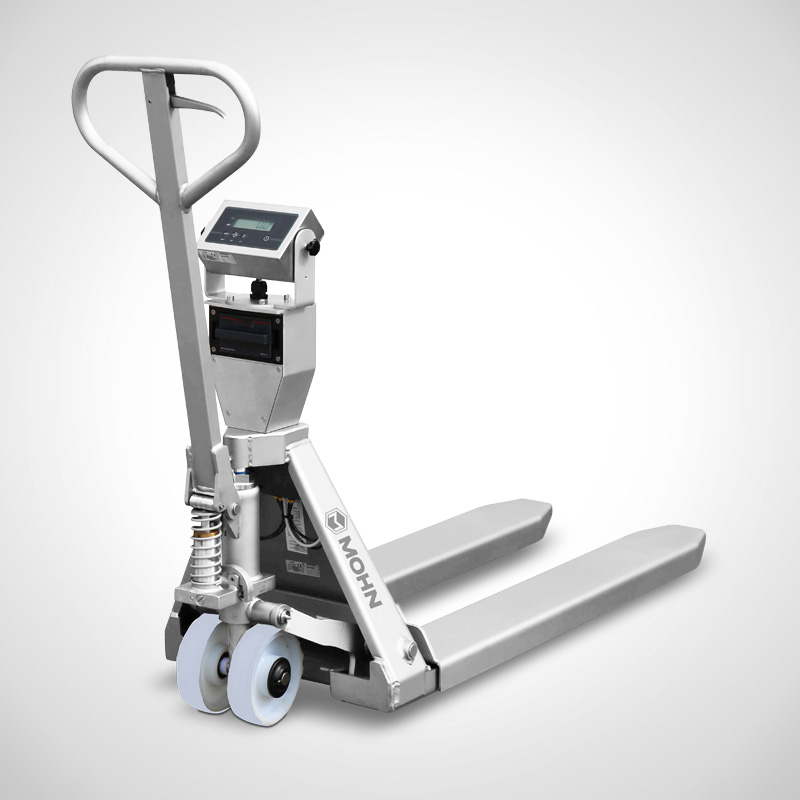

Hand pallet truck with scale -100% stainless steel

Hand pallet truck with scale -100% stainless steel

Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56 Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56
Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56 Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56
Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56 Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56
Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56 Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56

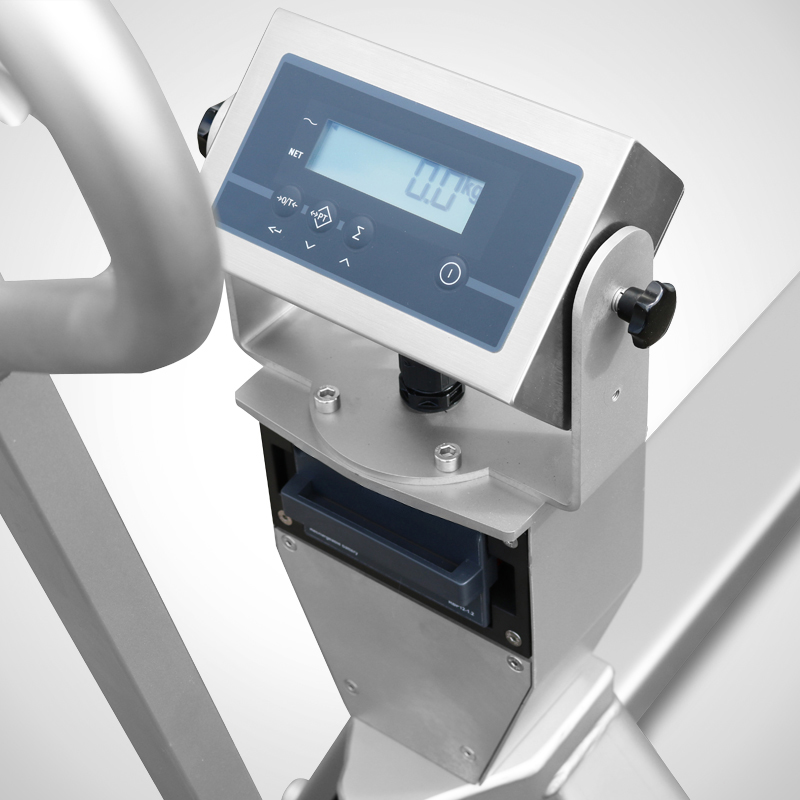

Scale with LCD display at an ergonomic height Scale with LCD display at an ergonomic height
Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56 Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56
Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56 Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56
Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56Stainless steel hand pallet truck with scale Type GHW-HPS V2A, art. no. 30.00.00.56

Hand pallet truck
Type GHW-HPS

The workhorse made of stainless steel with scale

  • 2 different types of hand pallet trucks available
  • Reliable hydraulics, robustly processed
  • 3-point manual release with release
  • Nylon steering and tandem fork rollers
  • Optimum cleaning and resistance
  • Wear resistant surface
  • Scale with LCD display at an ergonomic height

TypeLoading capacityFork lengthTotal heightPDF
GHW-HPS SEMI-V2A2.000 kg1130 mm1140 mm30.00.00.55
GHW-HPS V2A2.000 kg1130 mm1140 mm30.00.00.56
Printer for Type GHW-HPS 30000057
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material



Type GHW-HPS V2A

  • Fork chassis made of V4A as standard
  • All other parts made of stainless steel 1.4301 (V2A)
  • Stainless steel surface, glass bead blasted and electropolished



Type GHW-HPS Semi

  • Stainless steel chassis, handle / drawbar, axle, piston, bearings and bolts
  • Hot-dip galvanized rocker arm, rods
  • Cast zinc pump and front rocker arm





Technical Data

Weight~ 76 kg
Loading capacity2.000 kg
Lifting height200 mm
Fork length1130 mm
Fork width520 mm
Total length1480 mm

You could also be interested in these products:

Details
Hand pallet truck
Type GHW OA-Semi IIFURTHER
Details
Hand pallet truck
Type GHW-VFURTHER
Details

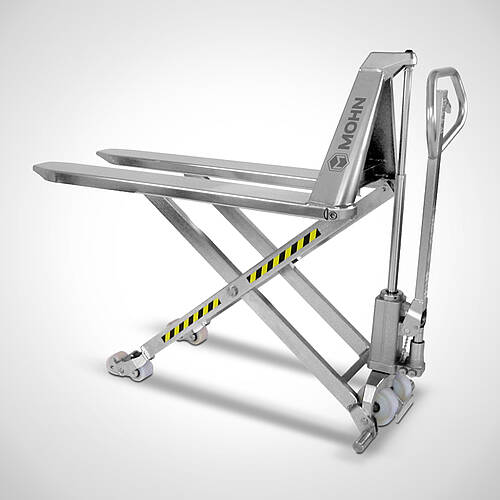

Scissors pallet truck
