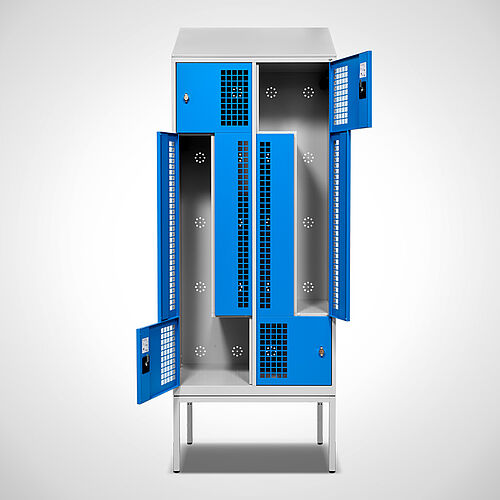

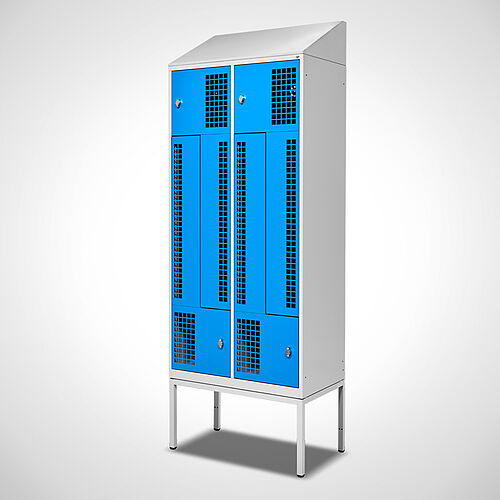

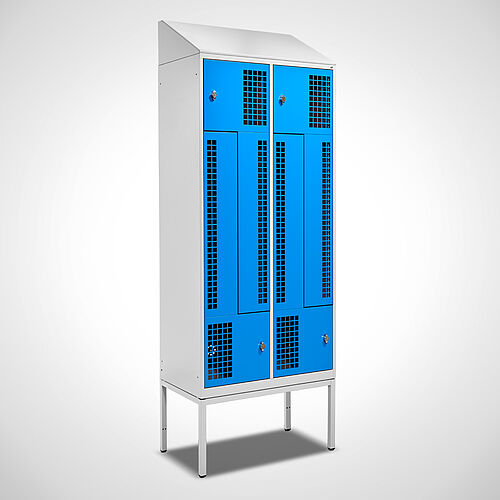

Z-locker with base frame

Z-shape locker
Type GSZ-UG-ST-EU

Self-ventilation concept according to EU Directive and §34 Workplace Ordinance

  • Execution with elevated base frame, ground clearance 420 mm
  • Each compartment with 2 doors in Z-shape
  • Various body and door colors available according to color overview
  • Right respectively left hinged doors, mounted on pivot pins
  • Doors perforated (square perforation)
  • Twist-lock catch for padlock (on the part of the building site)
  • With pitched roof attachment, at the back 230 mm higher
  • Rear wall with ventilation holes
  • Clear measure per compartment:
    • W 160/350 x D 480 x H 1,225 mm
    • Height of the wide area H 340 mm
  • Every compartment with 3 hooks
  • Smooth shelf for easy interior cleaning

TypeCompartment
persons
Dimensions
W x D x H in mm
ComparePDF
GSZ-UG-ST-EU 1/41x 400 mm420 x 510 x 2090/ 231045.00.07.0445.00.07.04
GSZ-UG-ST-EU 2/42x 400 mm810 x 510 x 2090/ 231045.00.07.0545.00.07.05
Mechan. combination lock 04800704
Cylinder lock, simple 00000870
Cylinder lock locking system 00010010
Main key locking system 00001200
Shoe rack for 400 mm compartment width 80527010
Number plate sticker 04800701
Number plate made of plastic 85020611
Number plate made of stainless steel 85010611
Damp interiors version (body electrolytically galvanised) 00800020

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1743
1301
8
Show Lightbox Compare
Comparedata

Material

Scratch-resistant powder-coated sheet steel



Options

  • Shoe rack for 400 mm compartment width, art.-no. 80.52.70.10
  • Padlock (brass), art.-no. 00.00.02.10
  • Mechan. combination lock, art.-no. 04.80.07.04
  • Cylinder lock, simple, art.-no. 00.00.08.70
  • Cylinder lock locking system, art.-no. 00.01.00.10
  • Main key locking system, art.-no. 00.00.12.00
  • Number plate sticker, art.-no. 04.80.07.01
  • Number plate made of plastic, art.-no. 85.02.06.11
  • Number plate made of stainless steel, art.-no. 85.01.06.11
  • Damp interiors version (body electrolytically galvanised), art.-no. 00.80.00.20**

**Damp interiors version:
for furniture in rooms with high humidity (class II). Design sheet steel electrolytically galvanized and powder coated. 5 years corrosion protection guarantee.

Color group I

without surcharge

Light grey

RAL 7035


Black grey

RAL 7021


Anthracite grey

RAL 7016


Volcanic grey

RDS 000 50 00

Grey metallic
Grey metallic

DB 703 glatt


Light blue

RAL 5012


Distant blue

RAL 5023

Color group II

without surcharge for fronts, if body belongs to color group I*

Gentian blue

RAL 5010


Lapis blue

RDS 270 20 29


Flame red

RAL 3000


Ruby red

RAL 3003


Pearl white

RAL 1013


Light green

RAL 6027


Water blue

RAL 5021


Moss green

RAL 6005

Color group III

without surcharge for fronts, if body belongs to colour group I*

Pastel yellow

RDS 095 90 30


Sulphur yellow

RDS 095 90 59


Sunny yellow

RDS 080 80 60


Yellow-orange

RAL 2000


Pastel green

RDS 110 90 20


Viridian green

RDS 110 80 60


Traffic white

RAL 9016


White aluminium

RAL 9006


Grey aluminium

RAL 9007

* Steel body: light grey RAL 7035 = door color without surcharge.
  Other color combinations at an additional charge: on request.

INFO The real colors could differ from the representations shown here.
