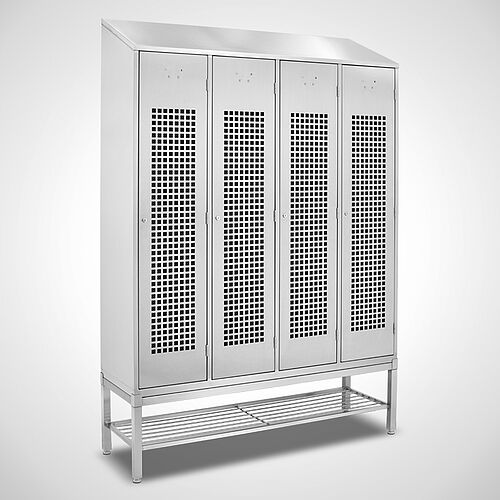

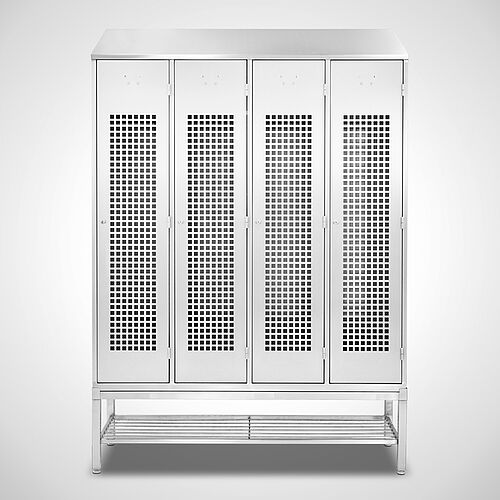

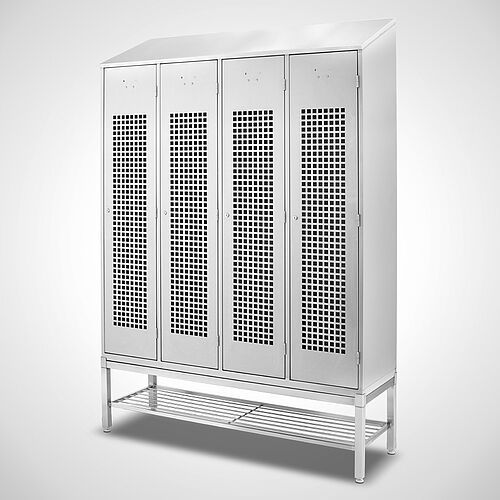

Locker with base frame

Locker
Type GS1-UG-VA-EU

Self-ventilation concept according to EU Directive and §34 Workplace Ordinance

  • Execution with elevated base frame and 4 height-adjustable feet (+/- 15 mm), ground clearance 420 mm
  • Robust construction completely made of stainless steel
  • 2 compartment width (300 respectively 400 mm) available
  • Integrated pitched roof (200 mm higher at the back)
  • Outside of the door with imprint for name plate
  • Inside door with box profile reinforcement for maximum stability
  • Doors perforated (square perforation)
    (Hole pattern beginning underneath the hat shelf › private area!)
  • Right hinged doors, mounted on pivot pins
  • Twist-lock catch for padlock (on the part of the building site)
  • Every compartment with hat shelf, clothes rail + 3 slide bars
  • With centre partition for S/W separation
    (only with compartment width 400 mm)
  • Smooth shelf with ventilation holes

TypeCompartment
persons
Compartment
partition
Dimensions
W x D x H in mm
ComparePDF
GS1-UG-VA-EU 1/31x 300 mmNo320 x 500 x 2090/ 229045.10.00.7045.10.00.70
GS1-UG-VA-EU 1/41x 400 mmYes420 x 500 x 2090/ 229045.10.00.7145.10.00.71
GS1-UG-VA-EU 2/32x 300 mmNo610 x 500 x 2090/ 229045.10.00.7245.10.00.72
GS1-UG-VA-EU 2/42x 400 mmYes810 x 500 x 2090/ 229045.10.00.7345.10.00.73
GS1-UG-VA-EU 3/33x 300 mmNo900 x 500 x 2090/ 229045.10.00.7445.10.00.74
GS1-UG-VA-EU 3/43x 400 mmYes1200 x 500 x 2090/ 229045.10.00.7545.10.00.75
GS1-UG-VA-EU 4/34x 300 mmNo1190 x 500 x 2090/ 229045.10.00.7645.10.00.76
GS1-UG-VA-EU 4/44x 400 mmYes1590 x 500 x 2090/ 229045.10.00.7745.10.00.77
GS1-UG-VA-EU 5/35x 300 mmNo1480 x 500 x 2090/ 229045.10.00.7845.10.00.78
Special dimensions
Mechan. combination lock  04800704
Cylinder lock, simple 00000870
Cylinder lock locking system 00010010
Main key locking system 00001200
Plastic shoe shell 04500707
Number plate sticker 04800701
Number plate made of plastic 85020611
Number plate made of stainless steel 85010611
Damp interiors version (body electrolytically galvanised) 00800020
Shoe rack for 300 mm compartment width 45107010
Shoe rack for 400 mm compartment width 45127010
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1728
606
8
Show Lightbox Compare
Comparedata

Material

Stainless steel furniture made of chrome-nickel steel 18/10 material no. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish



Options

  • Shoe rack for 300 mm compartment width, art.-no. 45.10.70.10
  • Shoe rack for 400 mm compartment width, art.-no. 45.12.70.10
  • Padlock (brass), art.-no. 00.00.02.10
  • Mechan. combination lock, art.-no. 04.80.07.04
  • Cylinder lock, simple, art.-no. 00.00.08.70
  • Cylinder lock locking system, art.-no. 00.01.00.10
  • Main key locking system, art.-no. 00.00.12.00
  • Plastic shoe shell, art.-no. 04.50.07.07
  • Number plate sticker, art.-no. 04.80.07.01
  • Number plate made of plastic, art.-no. 85.02.06.11
  • Number plate made of stainless steel, art.-no. 85.01.06.11
