Laundry output cupboard with feet

Laundry output cupboards
Type WAS-AF-VA-EU

Execution according to DIN 10524 and food hygiene regulation

  • Robust construction completely made of stainless steel

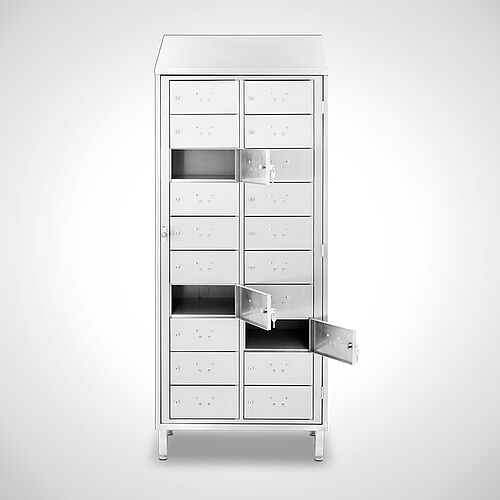

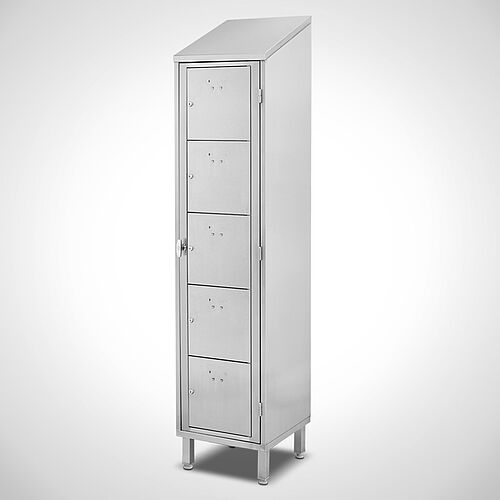

  • 1 or 2 compartments with 5 or 10 overlying compartments

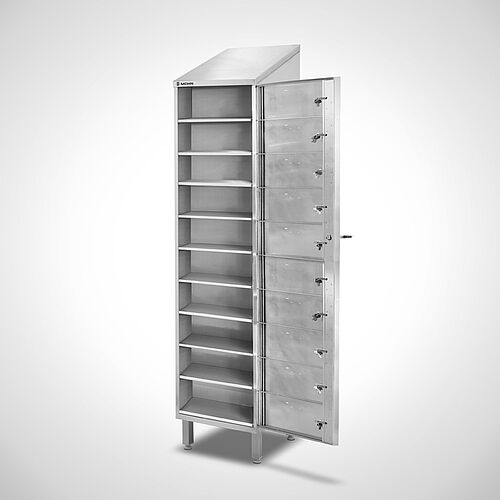

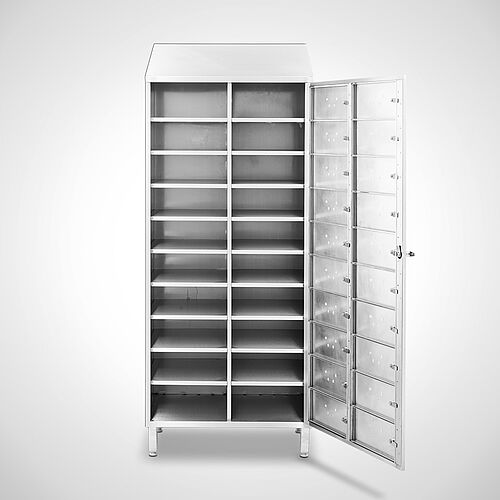

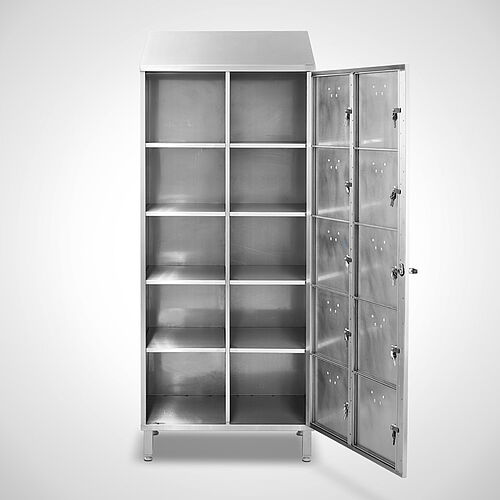

  • One central door with T-handle locking
    (for simple feeding of all compartments at once)
  • Compartment dimensions:
    • 5 doors each compartment: W 295 x D 475 x H 269 mm
    • 10 doors each compartment: W 251 x D 475 x H 126 mm
  • Smooth door, without label frame
  • Right hinged doors, mounted on pivot pins
  • Shelves and central door with cylinder locks incl. each 2 keys
  • With pitched roof attachment, 200 mm higher at the back
  • Smooth shelves for easy interior cleaning
  • Execution with 4 height-adjustable feet
  • Ground clearance 150 mm

TypeCompartmentsDimension
of compartment
Dimensions
W x D x H in mm
ComparePDF

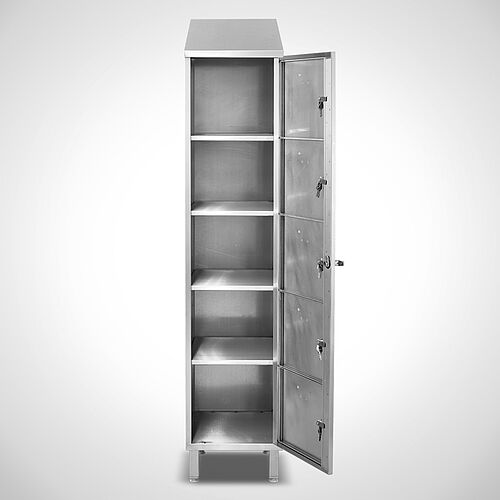

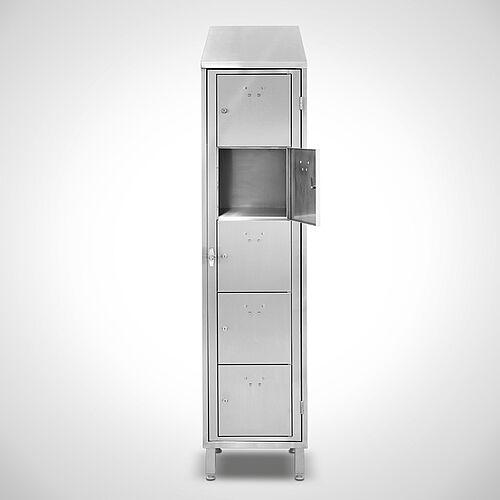

WAS-AF-VA-EU 1/55B 251 x T 475 x H 269 mm420 x 500 x 1850/ 205045.10.07.5445.10.07.54

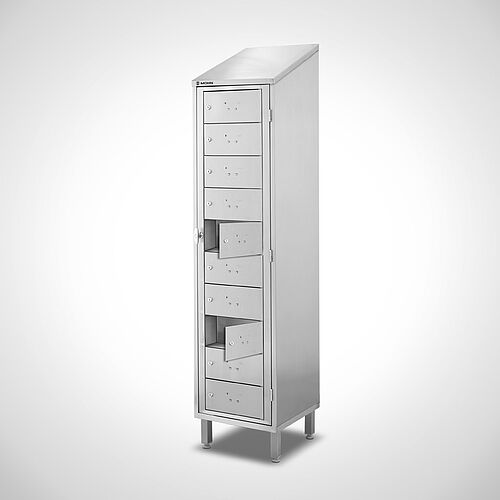

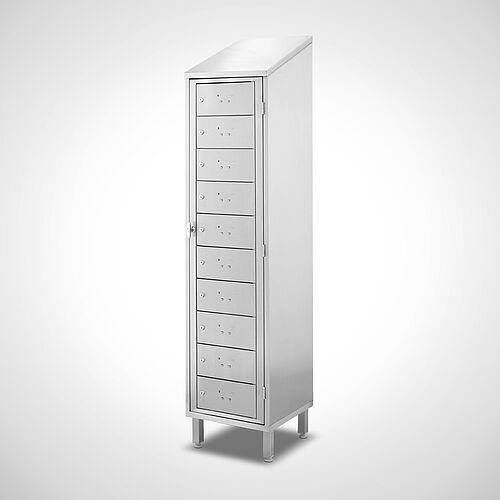

WAS-AF-VA-EU 1/1010B 295 x T 475 x H 126 mm420 x 500 x 1850/ 205045.10.07.5645.10.07.56

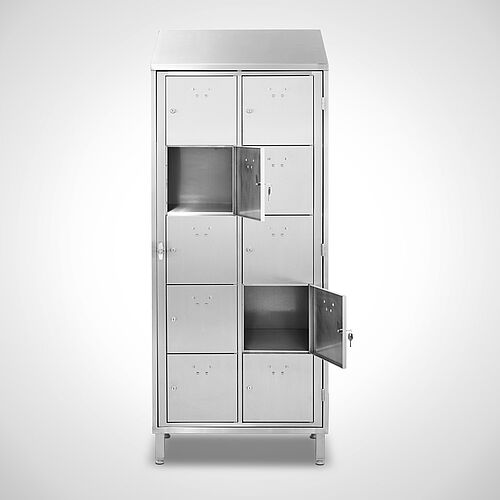

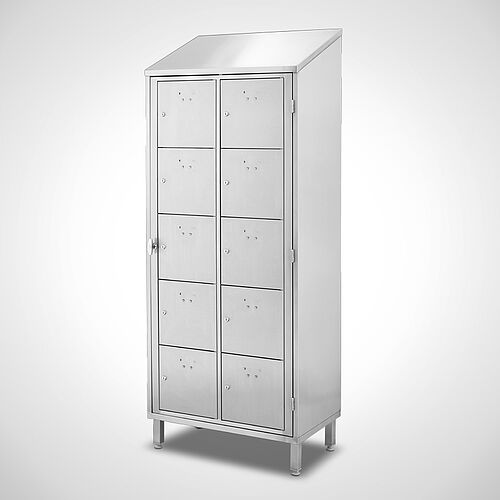

WAS-AF-VA-EU 2/510 (2 x 5)B 251 x T 475 x H 269 mm810 x 500 x 1850/ 205045.10.07.5545.10.07.55

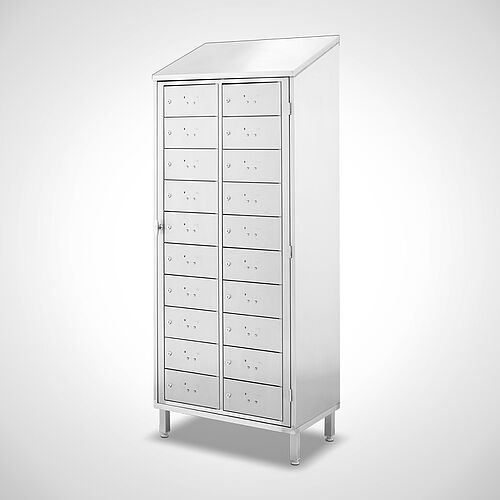

WAS-AF-VA-EU 2/1020 (2 x 10)B 295 x T 475 x H 126 mm810 x 500 x 1850/ 205045.10.07.5745.10.07.57
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1800
1332
8
Show Lightbox Compare
Comparedata

Material

Stainless steel furniture made of chrome-nickel steel 18/10 material no. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish



Options

  • Number plate sticker, art.-no. 04.80.07.01
  • Number plate made of plastic, art.-no. 85.02.06.11
  • Number plate made of stainless steel, art.-no. 85.01.06.11
  • Cylinder lock locking system, art.-no. 00.01.00.10
  • Main key locking system, art.-no. 00.00.12.00
