Laundry trolley
Laundry trolley
Laundry trolley

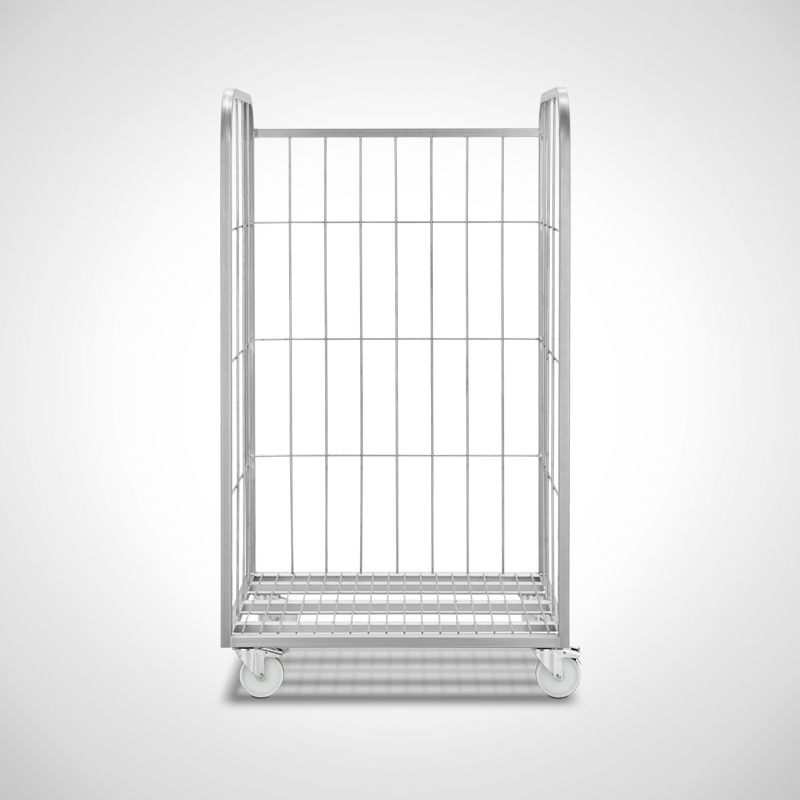

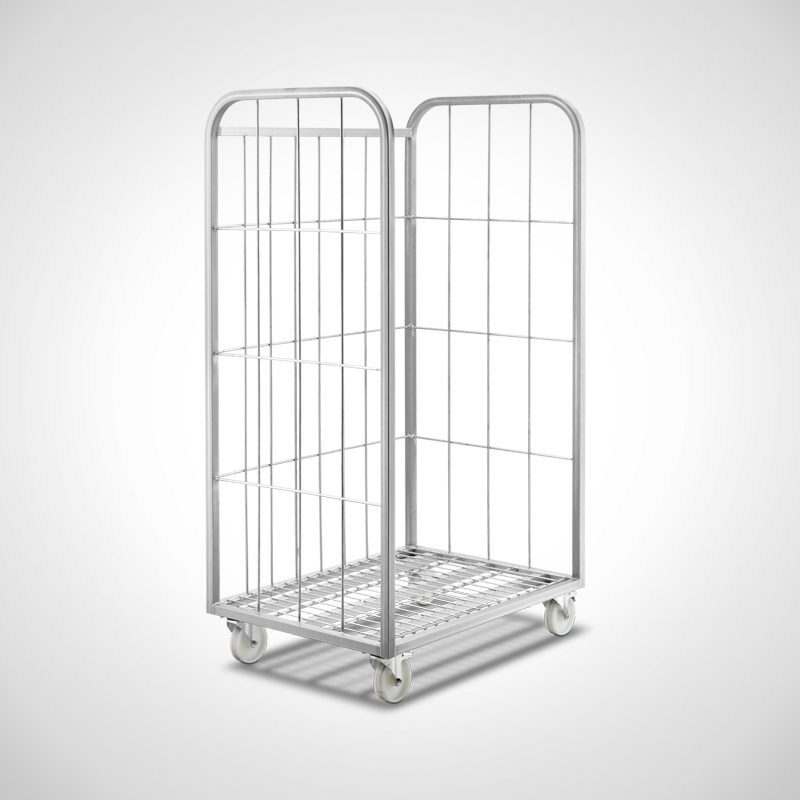

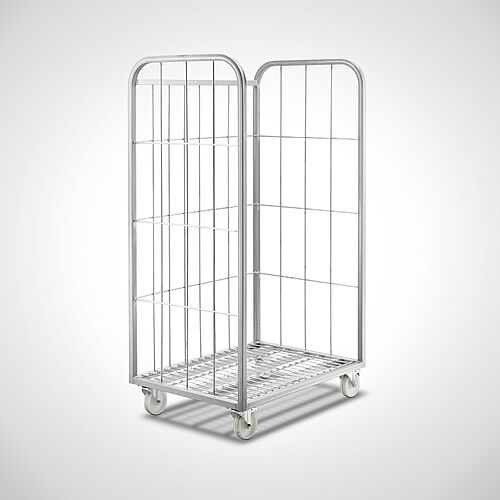

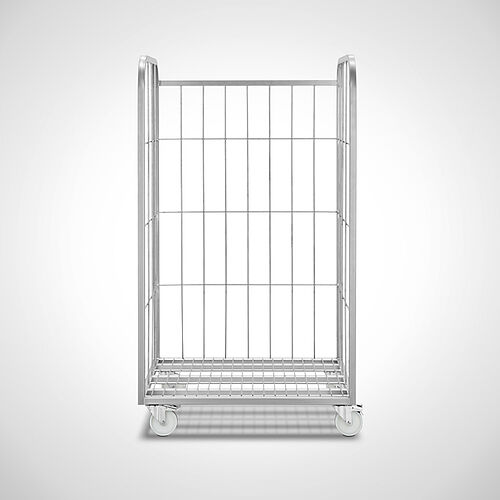

Type WAEW
FOR THE TRANSPORT OF EMPLOYEES' LAUNDRY
- Firmly welded stainless steel design
- Removal/loading on one open long side
- Side parts as square frame (30 x 30 x 2) in hygienic round arch design R70
- Side sections designed with Ø8 wire mesh frame (MW 160 x 370 mm)
- Long side with upper connecting strut to the side panels
- Long side with Ø8 wire mesh frame (MW 112 x 370 mm)

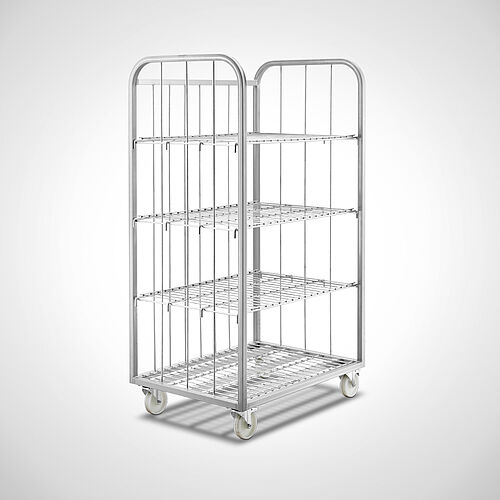

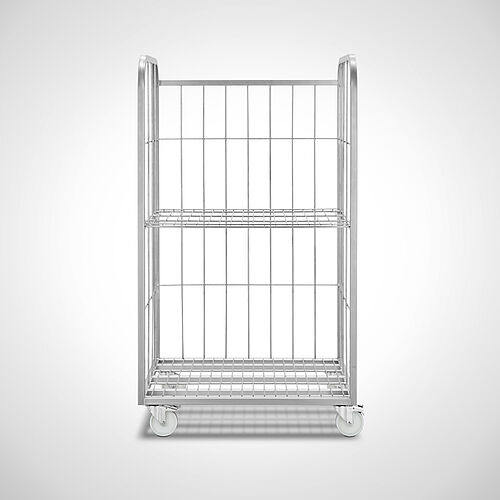

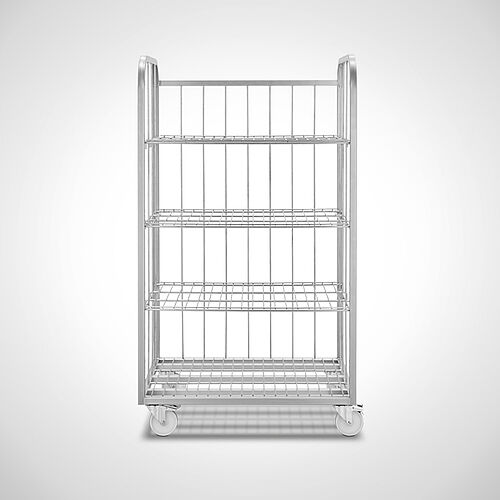

- 3 side-hinged wire mesh intermediate shelves (W 960 x D 630 mm)

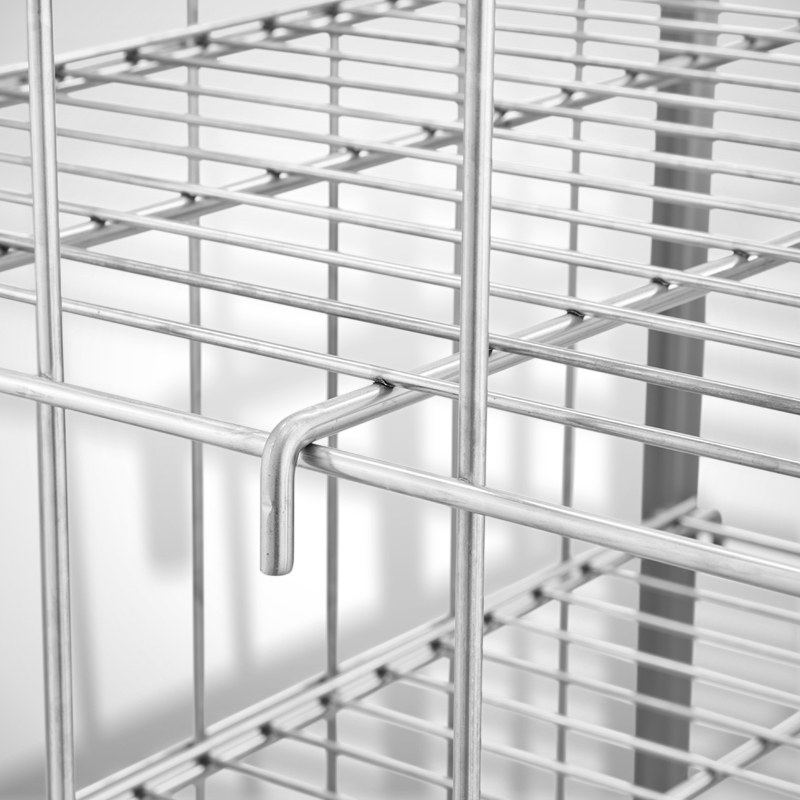

- Intermediate shelves with Ø5 round steel (50 mm grid) & 4 support struts (Ø 10 mm)
- Trolley base made of square tube frame profiles (30 x 30 x 2) and 2 support struts (Ø10)
- Base frame also made of Ø5 round steel at 50 mm intervals
- Mobile by means of 4 polyamide swivel castors, 2 with brakes (Ø 125 mm)
- Wheel housings/carriers made of stainless steel firmly welded to the base frame
- Ground clearance: 158 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Delivery without accessoires. We manufacture individually according to customer requirements
Material
Made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as square tubes have a uniform brushed finish
