Laundry output cupboard, wall-mounted

Laundry output cupboard, wall-mounted

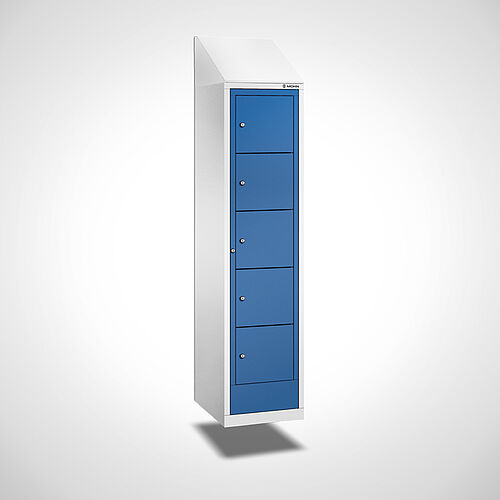

Wall-mounted laundry output cupboard Type WAS-AF-ST-EU-1-5 (5 compartments), art. no. 45.00.07.50 Wall-mounted laundry output cupboard Type WAS-AF-ST-EU-1-5 (5 compartments), art. no. 45.00.07.50

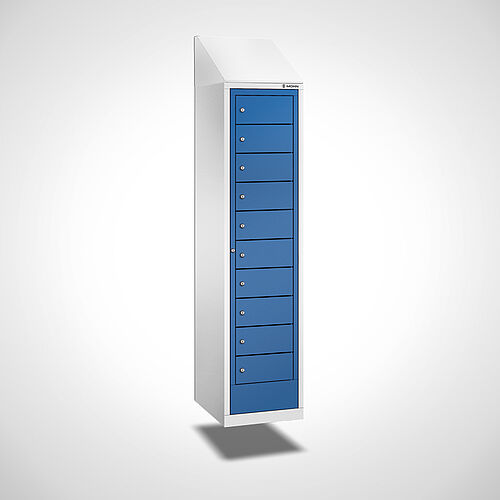

Wall-mounted Laundry output cupboard Type WAS-AF-ST-EU-1-10 (10 compartments), art. no. 45.00.07.52 Wall-mounted Laundry output cupboard Type WAS-AF-ST-EU-1-10 (10 compartments), art. no. 45.00.07.52

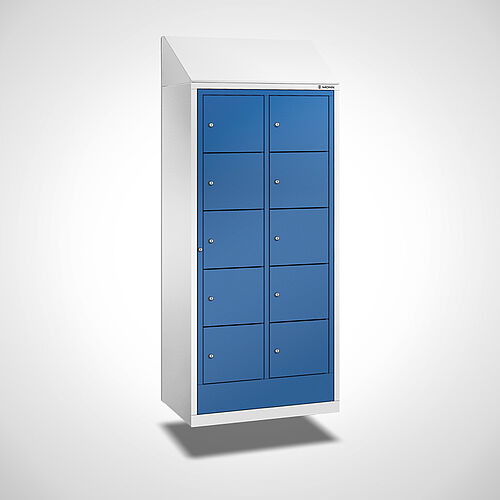

Wall-mounted Laundry output cupboard Type WAS-AF-ST-EU-2-5 (10 compartments), art. no. 45.00.07.51 Wall-mounted Laundry output cupboard Type WAS-AF-ST-EU-2-5 (10 compartments), art. no. 45.00.07.51

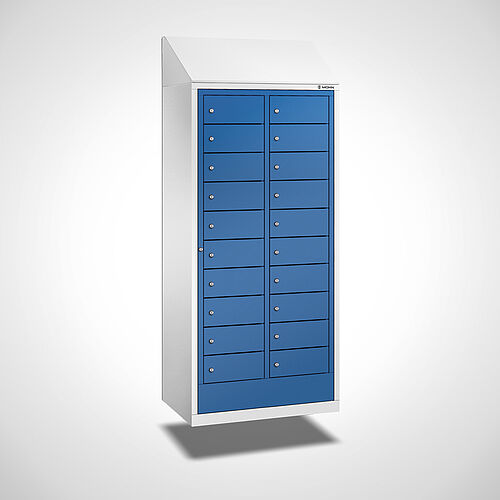

Wall-mounted Laundry output cupboard Type WAS-AF-ST-EU-2-10 (20 compartments), art. no. 45.00.07.53 Wall-mounted Laundry output cupboard Type WAS-AF-ST-EU-2-10 (20 compartments), art. no. 45.00.07.53

Laundry output cupboards
Type WAS-WH-ST-EU

Execution according to DIN 10524 and food hygiene regulation
  • Robust construction completely made of coated steel
  • Wall-mounting execution with angle section
  • 1 or 2 compartments with 5 or 10 overlying compartments
  • One central door with cylinder locking
  • Compartment dimensions:
    • 5 doors each compartment: W 251 x D 475 x H 269 mm
    • 10 doors each compartment: W 295 x D 475 x H 126 mm
  • Smooth door, without label frame
  • Right hinged doors, mounted on pivot pins
  • Shelves and central door with cylinder locks incl. each 2 keys
  • With pitched roof attachment, 230 mm higher at the back
  • Smooth shelves for easy interior cleaning

TypeCompartmentsDimension
of compartment		Dimensions
W x D x H in mm		ComparePDF
WAS-WH-ST-EU 1/55B 251 x T 475 x H 269 mm420 x 500 x 1700/ 193045.00.07.5045.00.07.50
WAS-WH-ST-EU 2/510 (2 x 5)B 251 x T 475 x H 269 mm810 x 500 x 1700/ 193045.00.07.5145.00.07.51
WAS-WH-ST-EU 1/1010B 295 x T 475 x H 126 mm420 x 500 x 1700/ 193045.00.07.5245.00.07.52
WAS-WH-ST-EU 2/1020 (2 x 10)B 295 x T 475 x H 126 mm810 x 500 x 1700/ 193045.00.07.5345.00.07.53


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
8456
2269
8
Show Lightbox Compare
Comparedata

Material

Powder-coated steel sheet
