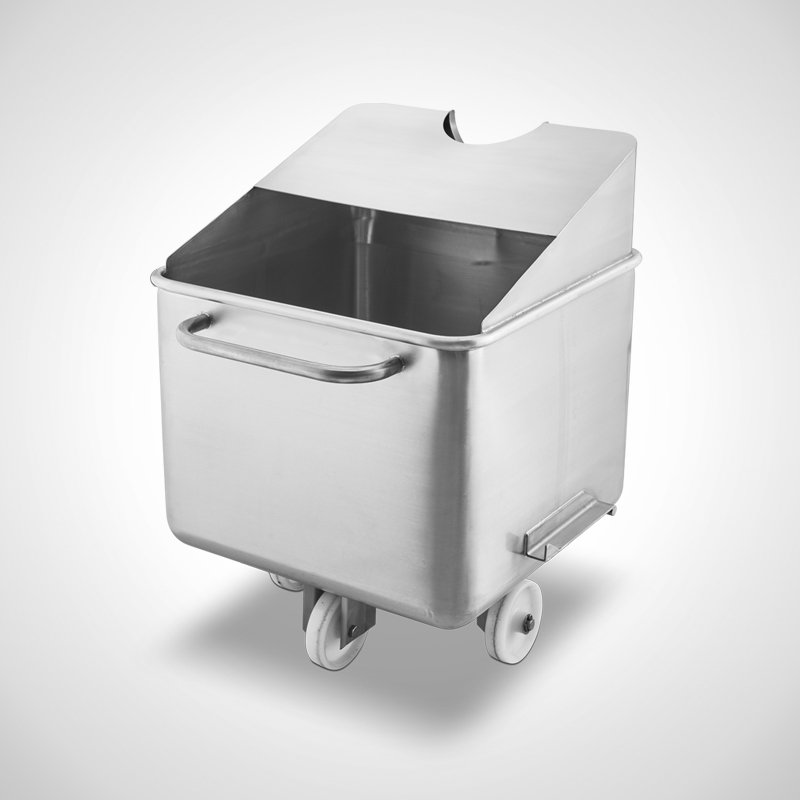

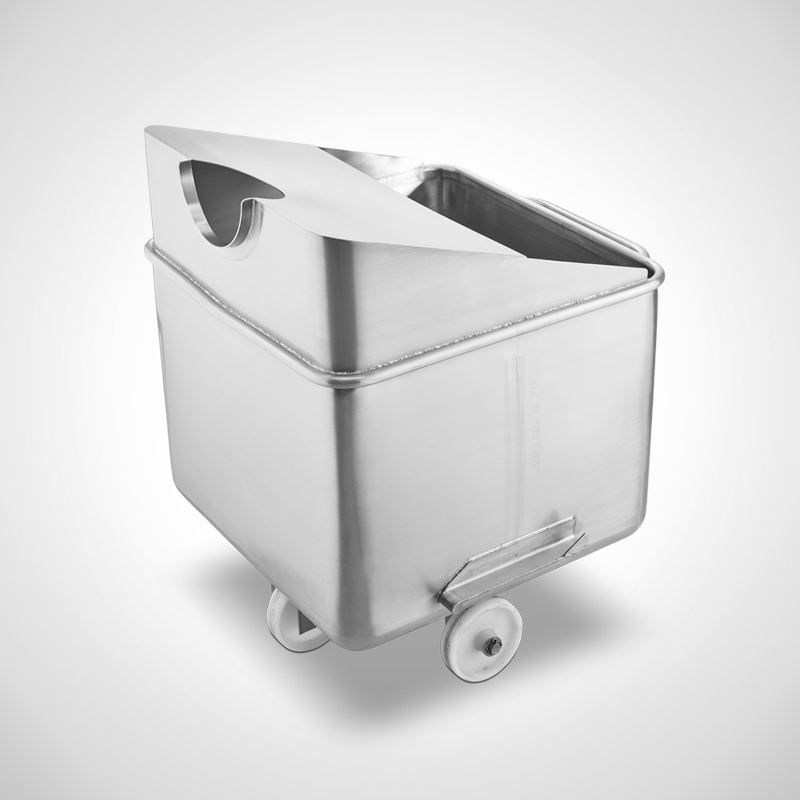

Bin trolley, with pouring funnel
Bin trolley, with pouring funnel
Lifting + feeding trolley
Type HBW-S with pouring funnel

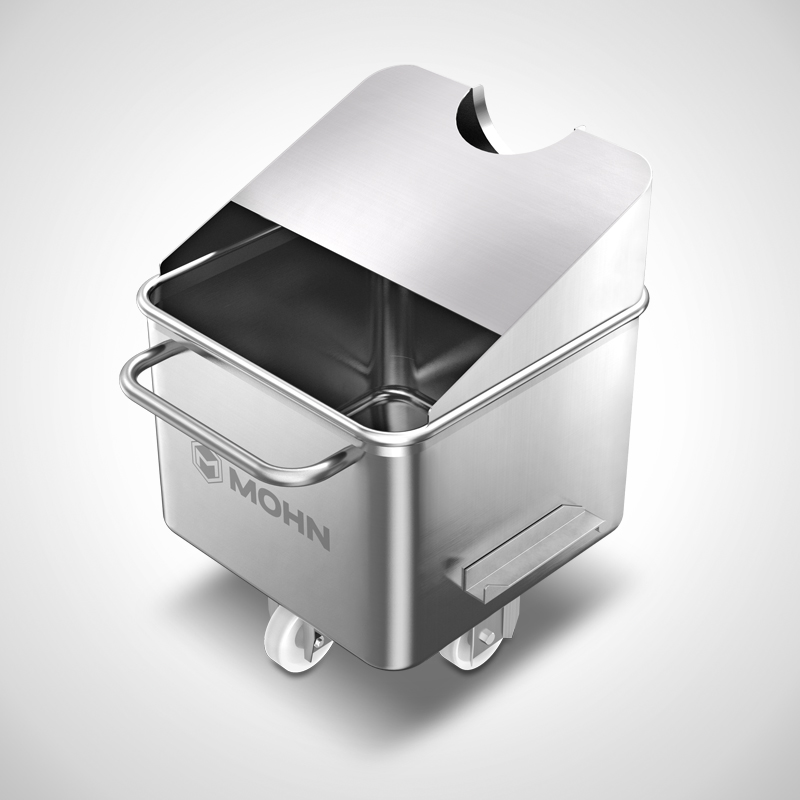

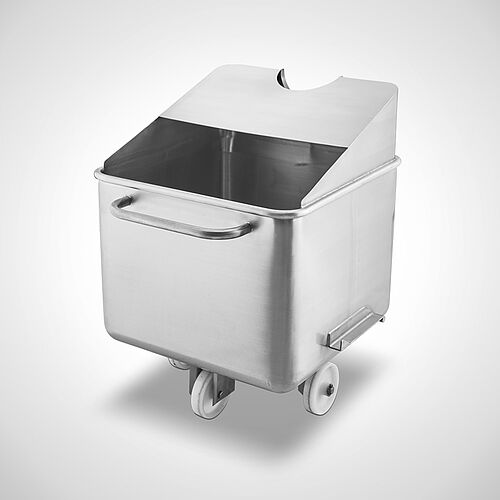

Lifting + feeding trolley with pouring funnel
- Capacity: 120 liter respectively 200 liter
- All-round tightly welded beaded rim

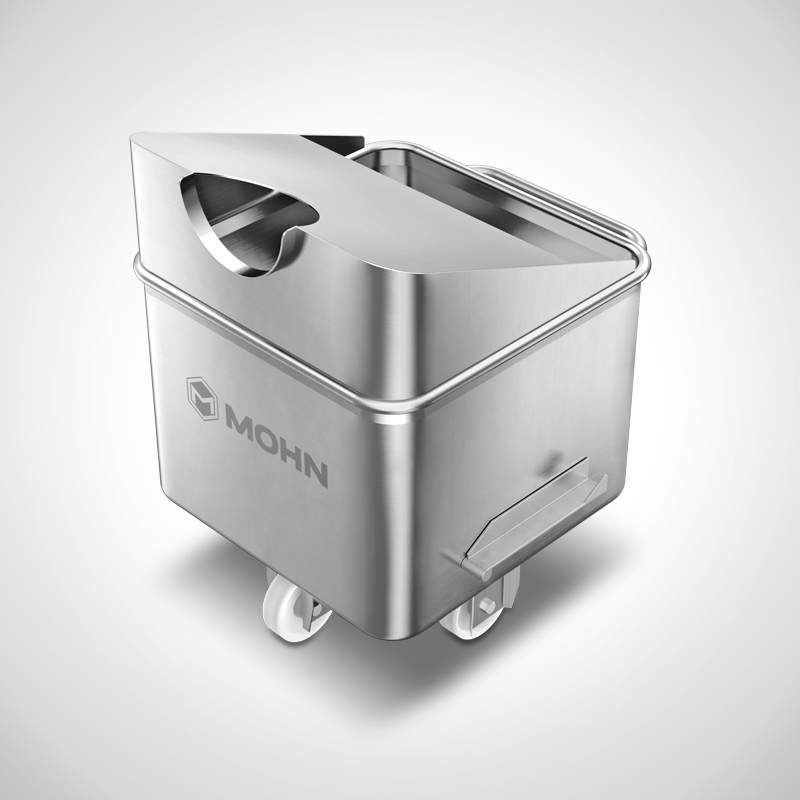

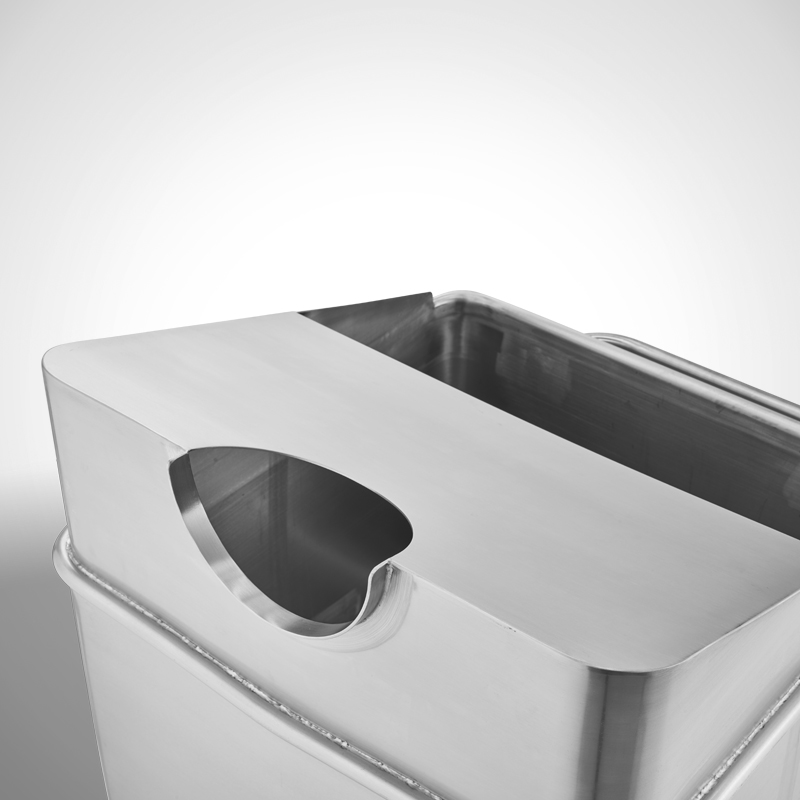

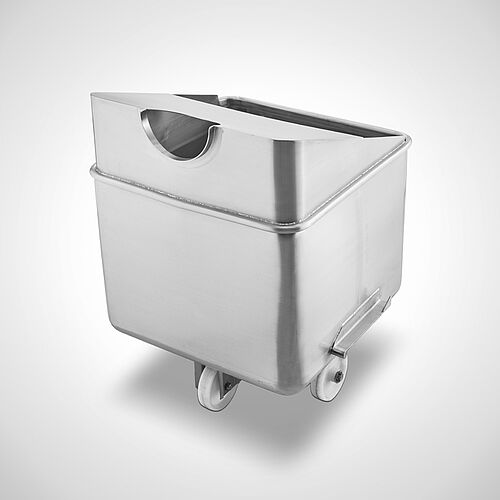

- Top front with welded-on pouring funnel (discharge funnel)
- Outlet opening of the funnel Ø 200 mm
- Wall thickness 2 mm with 3 mm bottom reinforcement
- Two-sided lifting claws made of 4 mm stainless steel
- Push handle made of round steel
- 4 polyamide wheels with plain bearings, Ø 150 mm with tilting momentum
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of stainless steel 1.4301
Description
These transport trolleys are also known under the terms: Standard trolley (according to DIN 9797), cutter trolley or container trolley. The design complies with DIN standard 9797 except for the weight of 43 kg and is suitable for the food industry.
Options
- Shim valve (DN50), article no. 99.80.01.65
- Milk screw cap (DN 50), article no. 15.00.00.09

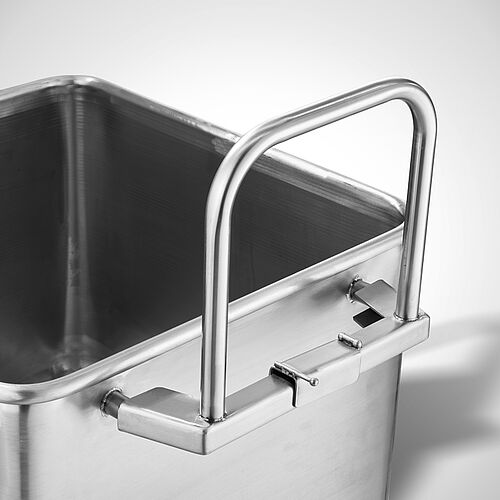

- Ergo push handle, article no. 16.00.00.18

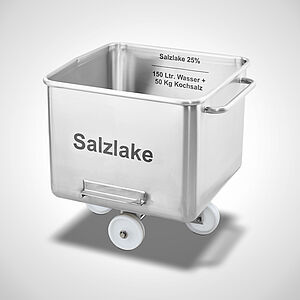

- Labeling, H: 90 mm (max. 10 letters or numbers) , article no. 90.00.00.91
- Cleaning rack for bins type HBW-S 200, article no. 41.00.00.12
- USDA-execution with drip edge on request
