Bin trolley with hopper bottom
Bin trolley with hopper bottom

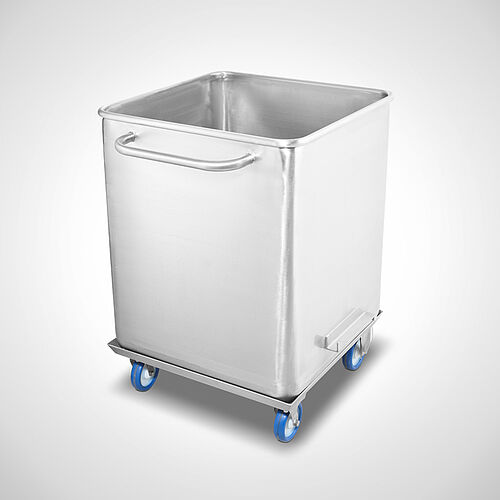

Lift- and tilting bin with hopper bottom type HBW-S-300-2-SON, Id. No. 22-62012-1 with trolley, Id. No. 22-62012-2

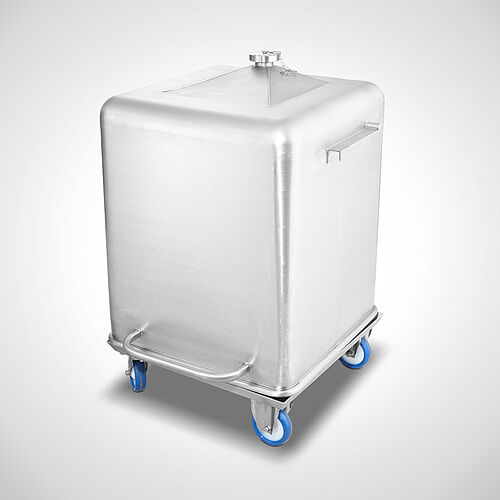

Lift- and tilting bin with hopper bottom type HBW-S-300-2-SON, Id. No. 22-62012-1 upside down on trolley, Id. No. 22-62012-2

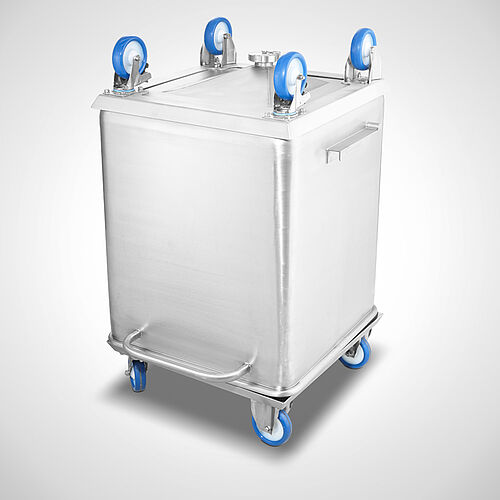

Lift- and tilting bin with hopper bottom type HBW-S-300-2-SON, Id. No.. 22-62012-1 upside down on bin, Id. No. 22-62012-2 with additional trolley

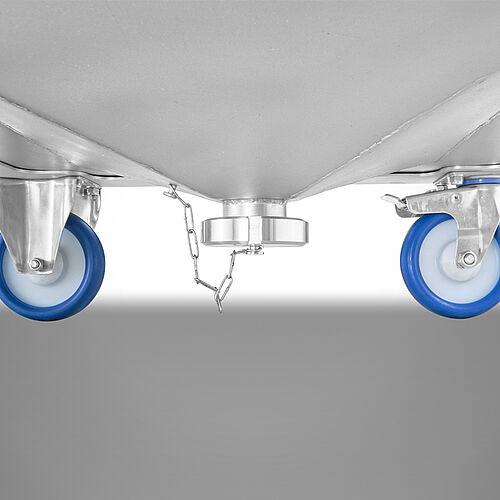

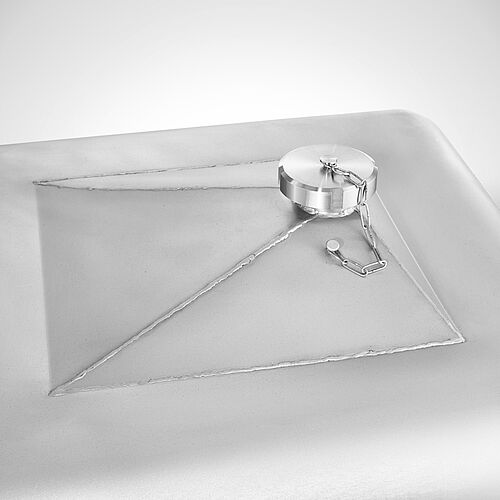

Lift- and tilting bin with hopper bottom type HBW-S-300-2-SON, Id. No.. 22-62012-1, detail hopper bottom
Bin trolley with hopper bottom
Type HBW-S-300-2-SON
2-divided execution - bin and trolley separateLY
- Bin capacity 300 litres
- Bin with all-round tightly welded beaded rim
- Bin rim without pouring spout
- Wall thickness 2 mm with 3 mm bottom reinforcement
- Bin bottom in the middle with conical drain (hopper)
- Milk screw cap DN 50 with lid attached to chain
- Two-sided lifting claws made of 4 mm stainless steel
- Push handle made of round steel

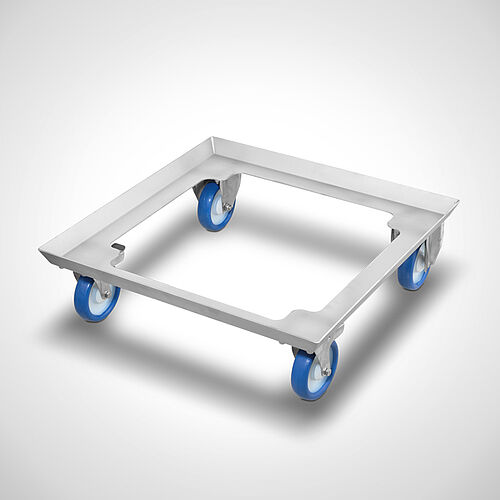

- Trolley consisting of V2A angular frame with 2 fixed and 2 swivel castors
- 4 polyurethane wheels, Ø 150 mm for quiet, non-marking running
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of stainless steel 1.4301
Options
- Container lid for HBW-300, article no. 41.00.00.05
- Divided container lid for 300, article no. 41.00.00.16
- Cover made of polyprophylen-fleece, article no. 99.90.00.01
- Labeling, H: 90 mm (max. 10 letters or numbers) , article no. 90.00.00.91
