Bin trolley, with ball valve
Bin trolley, with ball valve

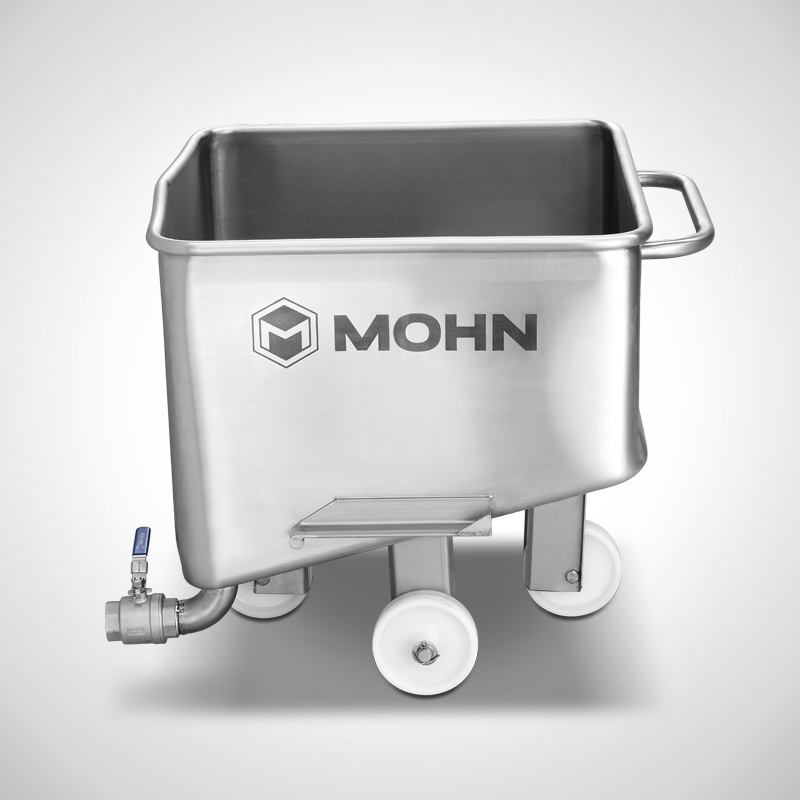

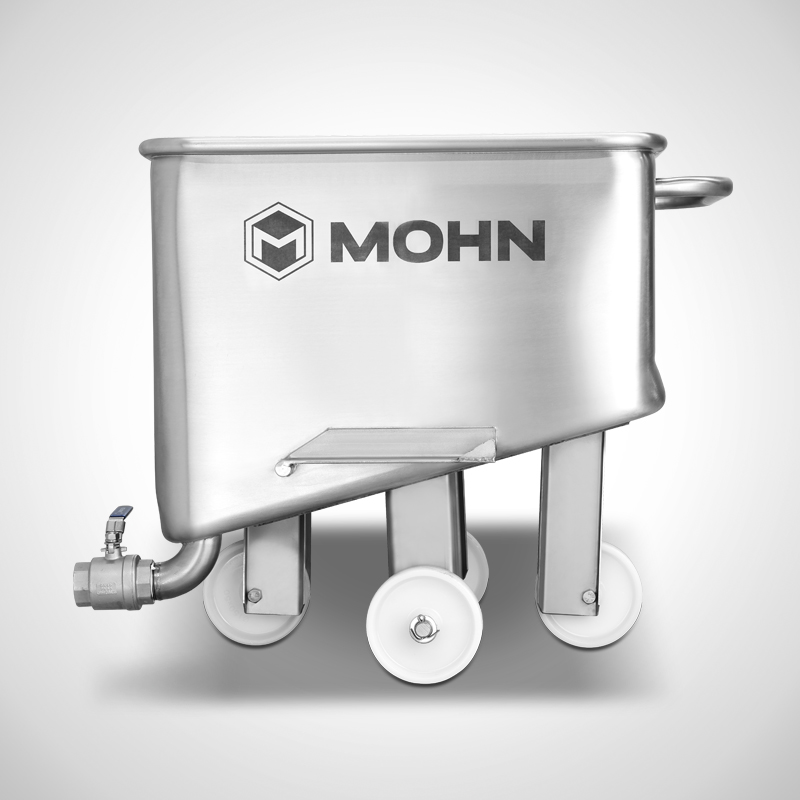

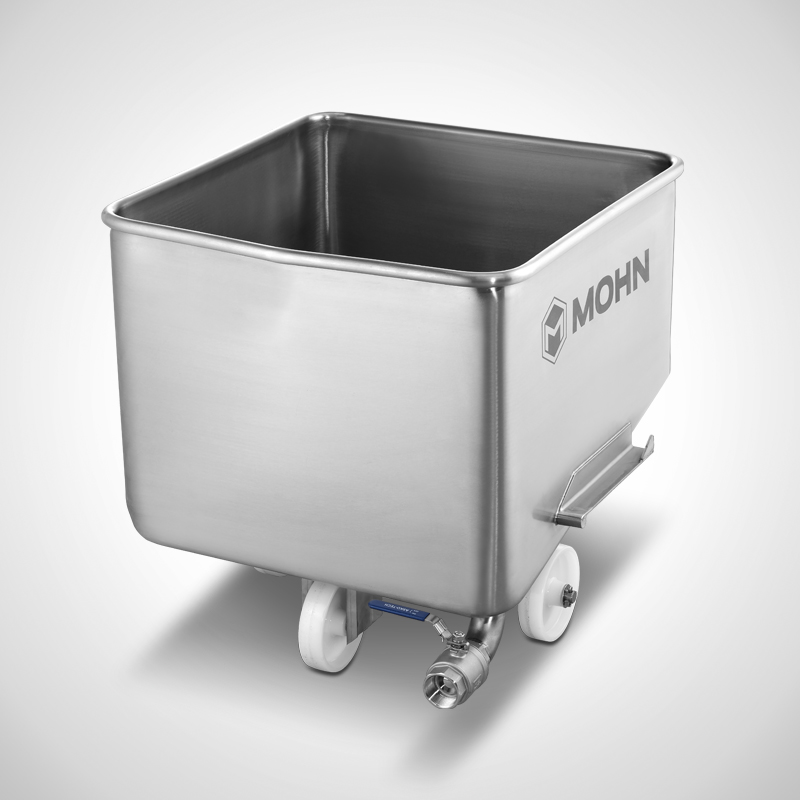

Lifting and loading trolley with ball valve and 15° container base slope Type HBW-KH 200, Id-No. 23-62172
Lifting and loading trolley with ball valve and 15° container base slope Type HBW-KH 200, Id-No. 23-62172
Bin trolley
Type HBW-KH 200
LIFTING + FEEDING TROLLEY WITH ball valve
- Capacity: approx. 175 litres
- All-round tightly welded beaded rim
- Wall thickness 2 mm with 3 mm bottom reinforcement
- Two-sided lifting claws made of 4 mm stainless steel
- Push handle made of round steel
- Ball valve DN 40 incl. reducer, front left

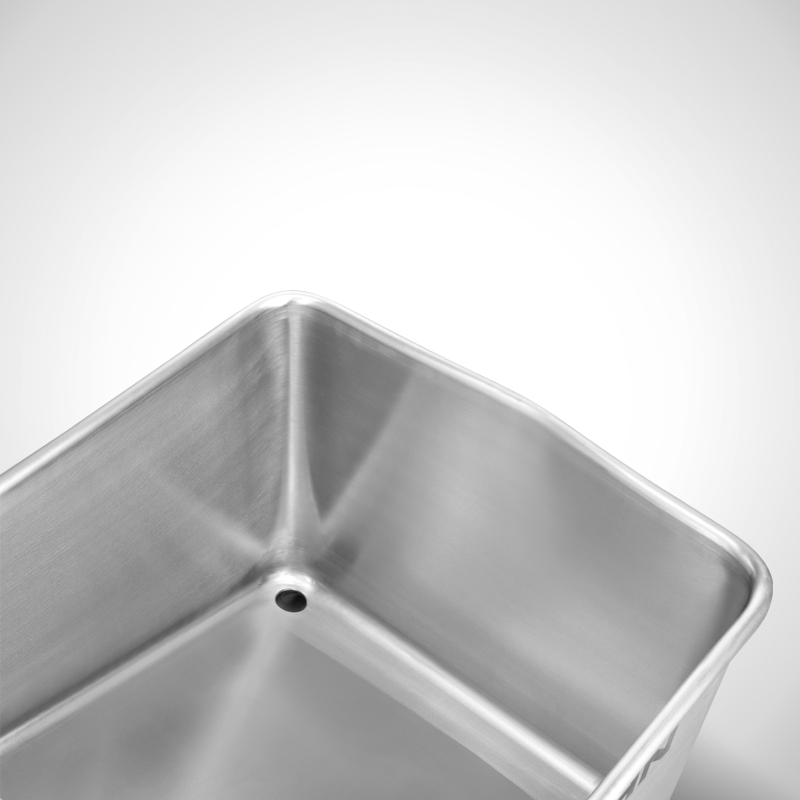

Tank base with 15° slope to the ball valve - 4 polyamide wheels with plain bearings, Ø 150 mm with tilting momentum
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of stainless steel 1.4301
DESCRIPTION
These transport trolleys are also known under the terms: Standard trolley (according to DIN 9797), cutter trolley or container trolley.
OPTIONS
- Disc valve (DN50), article no. 99.80.01.65
- Milk screw cap (DN 50), article no. 15.00.00.09
- Ergo push handle, article no. 16.00.00.18

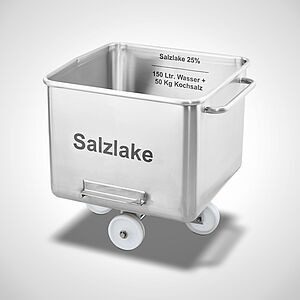

- Labeling, H: 90 mm (max. 10 letters or numbers) , article no. 90.00.00.91
- Cleaning rack for bins type HBW-S 200, article no. 41.00.00.12
- USDA-execution with drip edge on request
Labeling (H 75 mm), art. no. 90.00.00.91
