Depot trolley

Depot trolley

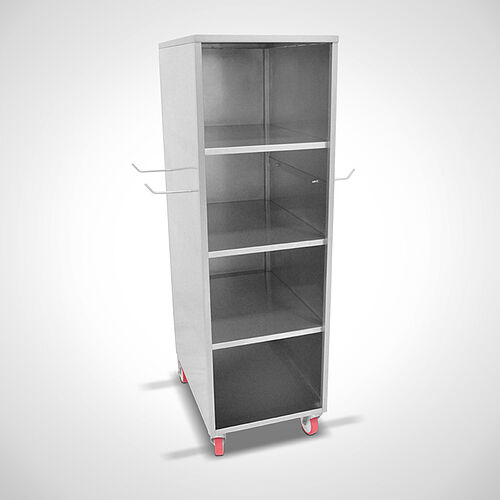

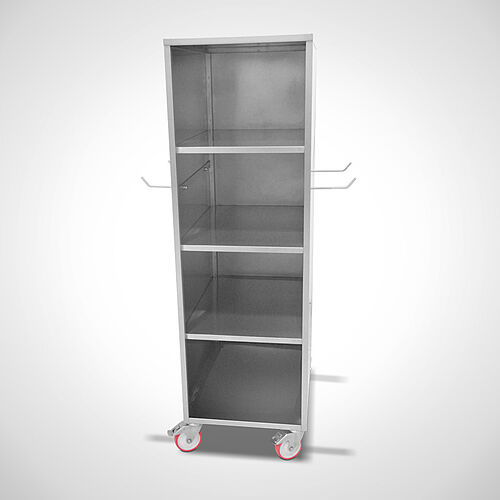

Depot trolley Type ABW-50-80-SON, ID 13-63949 Depot trolley Type ABW-50-80-SON, ID 13-63949
Depot trolley Type ABW-50-80-SON, ID 13-63949 Depot trolley Type ABW-50-80-SON, ID 13-63949

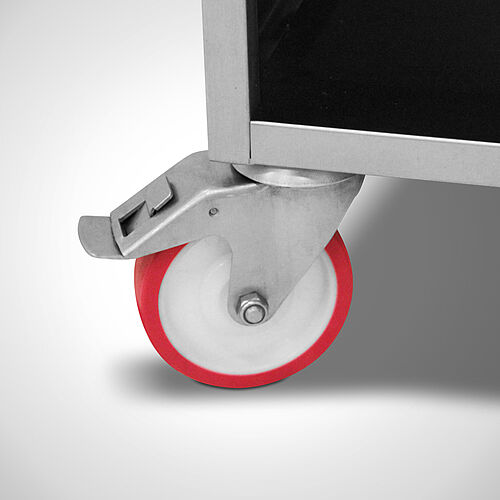

Depot trolley Type ABW-50-80-SON, Detail swivel castor with brake Depot trolley Type ABW-50-80-SON, Detail swivel castor with brake

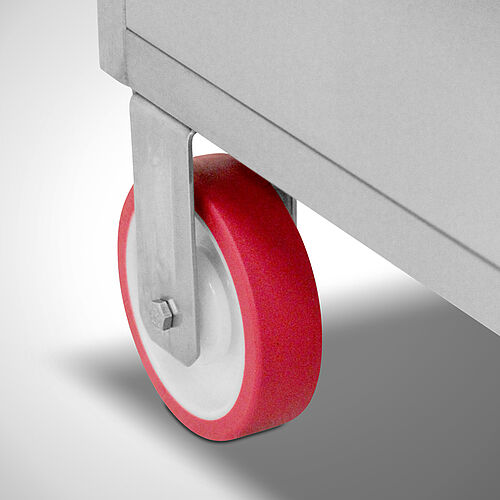

Depot trolley Type ABW-50-80-SON, Detail fixed castor Depot trolley Type ABW-50-80-SON, Detail fixed castor

Depot trolley
Type ABW

HOUSING TROLLEY E FOR STORAGE OF MACHINE PARTS

  • Stable, permanently welded design
  • Cabinet body closed on 3 sides
  • Removal / loading on the narrow side
  • Interior with 3 closed shelves
  • Outside left and right with 2 hooks each, Ø 10 mm
  • Distance between hooks: 450 mm, at a height of 1200 mm
  • Mobile with 2 fixed and 2 swivel castors with brakes
  • Vulkollan castors Ø 125 mm, wheel carriers made of stainless steel

TypeVersionDimensions
W x D x H in mm		PDF
ABW-50x80xSONVulkollan wheels500 x 800 x 175013-63949.4
Special dimensions
We manufacture individually according to customer requirements
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery without accessoires.



Material

Made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as square tubes have a uniform brushed finish



Options

  • Mobile by means of 4 vullkollan steering rolls, 2 with stops on request
