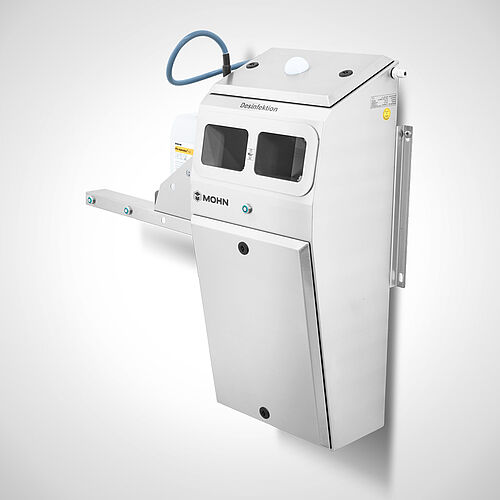

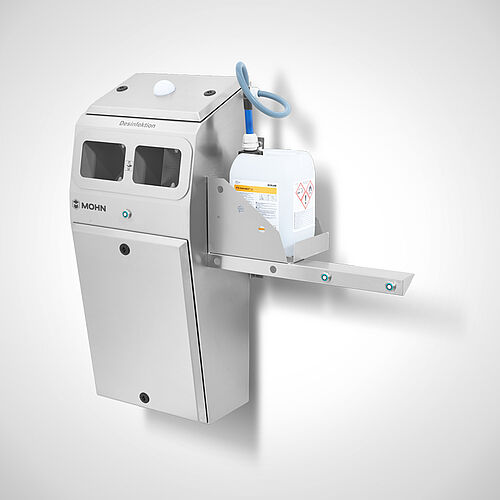

Sensor "Highline" (2 hand)

Disinfection unit
Type Desi-Star Highline

"Highline"-with non-finessing sensor operation

  • Hygienic-Design
  • Wall-mounted version, optinal with feet
  • Tamper-proof 2-hand sensor control
  • Multi-LED signal display
  • Canister empty signal
  • Lockable canister storage
  • Scrap collection container
  • Alarm function with 2 sensor + 1 bugle

TypeVersionDimensions
W x D x H in mm
PDF
Desi-Star "Highline"Wall-mounted - Disinfection405 x 310 x 92010.00.02.22
Desi-Star A-R* "Highline"Wall-mounted - Disinfection with alarm function (right to left)700 x 310 x 92010.00.22.22
Desi-Star A-L* "Highline"Wall-mounted - Disinfection with alarm function (left to right)700 x 310 x 92010.00.22.23
Special dimensions
Rack (feet) made of stainless steel12000048
*Alarm function with 2 sensor + 1 bugle
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Made of stainless steel 1.4301



Description

After both hands got detetcted by the sensors the wetting of both hands with soap or disinfectant is activated. If adjusted a door-opener which is connected to the potential-free contact of the device is activated (access control).

Soap-Star-A / Desi-Star-A are additionally equiped with a sensor-operated alarm-function (bugle). If soap or disinfectant dispensing was not activated (in direction to production area) a spezial sensor releases a bugle. A second sensor detects people on the way-back so that the bugle isn’t activated on mistake.

Technical Data

Power supply230V /N/PE; 50-60 Hz
Operating voltage24 V DC
Performance0,2 kW

Reference Photos

Video

Hand disinfection unit with alert function Type Desi-Star ALARAM Highline, item no. 10.00.22.23
Hand disinfection unit with alert function Type Desi-Star ALARAM Highline, item no. 10.00.22.23
