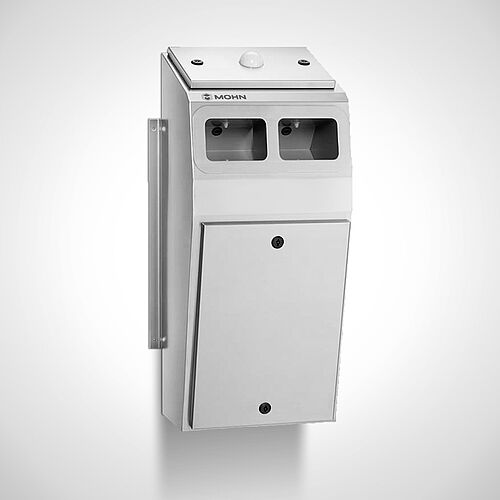

Hand soap dispenser Type Soap-Star Highline, art. no. 10.00.22.21

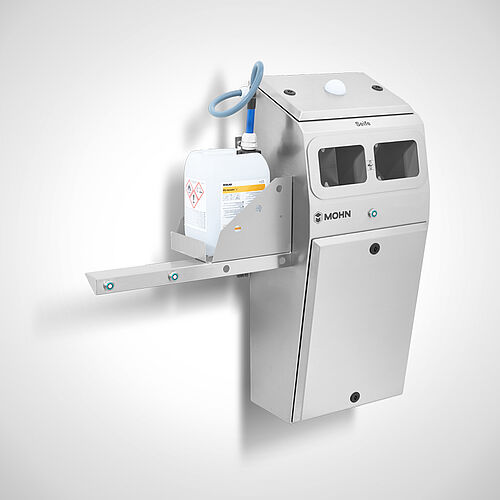

Soap dispenser with sensor-operated alarm-function, art. no. 10.00.33.31, passage direction from left to right

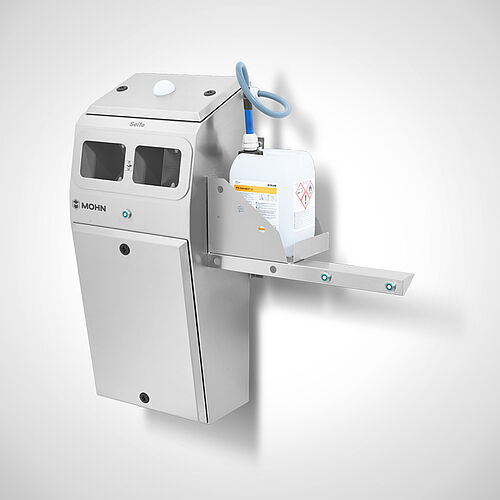

Soap dispenser with sensor-operated alarm-function, art. no. 10.00.33.32, passage direction from right to left

Soap dispenser
Type Soap-Star Highline

"Highline"-with non-finessing sensor operation

Hygienic-Design
Wall-mounted version, optional with feet
Tamper-proof 2-hand sensor control
Multi-LED signal display
Canister empty signal
Lockable canister storage
Scrap collection container
Optional: Alarm function with SIEMENS Logo control

Type	Version	Dimensions W x D x H in mm	Compare	Art.-No. Please mark	PDF
Soap-Star	Wall-mounted - Soap	405 x 310 x 920	10.00.22.21	10.00.22.2110002221	10.00.22.21
Soap-Star A-R*	Wall-mounted - Alarmfunction (passage direction right to left)	700 x 310 x 920	10.00.33.31	10.00.33.3110003331	10.00.33.31
Soap-Star A-L*	Wall-mounted - Alarmfunction (passage direction left to right)	700 x 310 x 920	10.00.33.32	10.00.33.3210003332	10.00.33.32
Special dimensions				00.00.00.1000000010

Rack (feet) made of stainless steel	12.00.00.48 12000048
Time- and Data-detection on request
Optical alarm by means of signal-light
*Alarm function with 2 sensor + 1 bugle We manufacture individually according to customer requirements

show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

Comparedata

Material

Made of stainless steel 1.4301

Description

After both hands got detetcted by the sensors the wetting of both hands with soap or disinfectant is activated. If adjusted a door-opener which is connected to the potential-free contact of the device is activated (access control).

Soap-Star-A / Desi-Star-A are additionally equiped with a sensor-operated alarm-function (bugle). If soap or disinfectant dispensing was not activated (in direction to production area) a spezial sensor releases a bugle. A second sensor detects people on the way-back so that the bugle isn’t activated on mistake.
