Hygiene wall with highline wash basin

Hygiene wall with highline wash basin

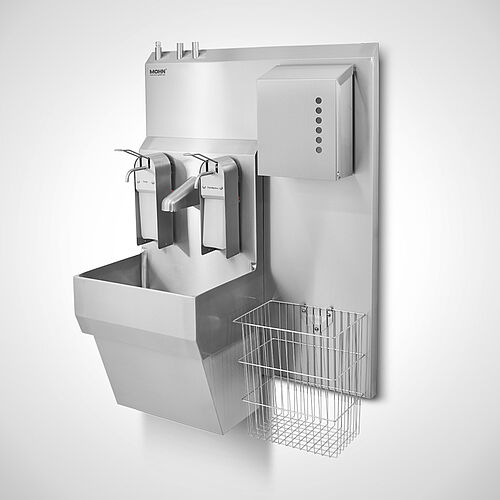

Hygiene wall for high risk areas with highline wash basin Type HW-HWB-HL-1, art. no. 11.00.00.37 with optional medium cover facing, art. no. 12.00.01.41, medium supply „Power“ and "water" from top, art. no. 12.00.01.37 resp. 12.00.01.38 Hygiene wall for high risk areas with highline wash basin Type HW-HWB-HL-1, art. no. 11.00.00.37 with optional medium cover facing, art. no. 12.00.01.41, medium supply „Power“ and "water" from top, art. no. 12.00.01.37 resp. 12.00.01.38

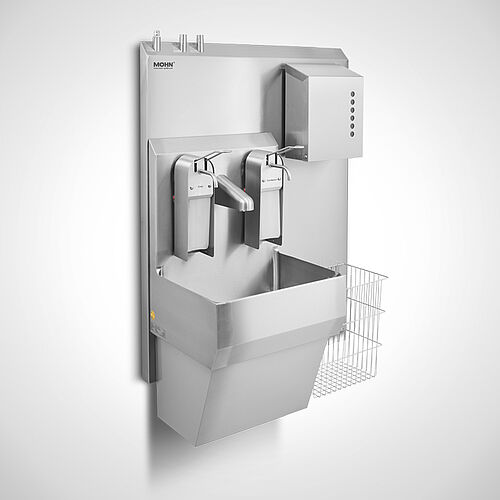

Hygiene wall for high risk areas with highline wash basin Type HW-HWB-HL-1, art. no. 11.00.00.37 with optional medium cover facing, art. no. 12.00.01.41, medium supply „Power“ and "water" from top, art. no. 12.00.01.37 resp. 12.00.01.38Hygiene wall for high risk areas with highline wash basin Type HW-HWB-HL-1, art. no. 11.00.00.37 with optional medium cover facing, art. no. 12.00.01.41, medium supply „Power“ and "water" from top, art. no. 12.00.01.37 resp. 12.00.01.38

Hygiene wall
Type HW-HWB-HL 1

Hand hygiene solution made of stainless steel high-risk areas

Hygiene wall type HW-HWB-HL 1 standard consisting of:

  • Real wall with pitched roof (Hygienic-Design)
  • 1 Hand wash basin with sensor-operation Type HWB-HL 1
  • Highline hand wash basin with integrated rear wall
  • 1 Soap liquid dispenser type USP-O
  • 1 Disinfectant liquid dispenser type USP-O
  • 1 Paper towel dispenser type HTSP-O
  • 1 Waste paper basket type PK-D 40 liter

Hygiene wall type HW-HWB-HL 1/L additionally consisting of:

  • Siemens Logo control unit with legionella flushing function

TypeVersionDimensions
W x D x H in mm		ComparePDF
HW-HWB-HL 1Sensor wash basin without legionella flushing function960 x 450 x 110011.00.00.3711.00.00.37
HW-HWB-HL 1/LSensor wash basin with legionella flushing function960 x 450 x 110011.00.01.3711.00.01.37
Special dimensions
Foot frame 18000179
Medium cover facing for Type HW-HWB-HL 1  12000141
Medium supply „Power“ from top for Type HW-HWB-HL 1  12000137
Medium supply „Water“ from top for Type HW-HWB-HL 1  12000138
Other executions on request!
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
8537
2353
8
Show Lightbox Compare
Comparedata

(Non-return or pressure relief valves, siphon, sealing and small parts are not included)



Material

Partly made of stainless steel 1.4301, hygienic stainless steel outlet tap with built-in sensor technology 24 V DC

Hand-washing basin: Solenoid valve made of plastic and add-on parts made of brass (partly chrome-plated)

Refillable plastic containers for soap or disinfectant



Information

basin dimensions: ca. W 490 x D 450 x H 156 mm



Technical Data

Power supply230 V, 50/60 Hz (sensor-operated)
Performance3,2 kw (only type HW-J)
Drain1 1/2"
Water connection1/2" (cold + warm water)
Line pressuremin. 2,5 bar - max. 6 bar
Control voltage24 V DC (sensor-operated)

Accessories

Sole cleaning
Type Sole-Master Highline
FURTHER
Roll box
Type RB-E
FURTHER
Paper baskets
Type PK-D
FURTHER
Multi-mix dispenser for disposable clothing
Type MMS V2
FURTHER
Apron dispenser
Type ESS-1
FURTHER
Apron dispenser
Type ESS-2
FURTHER
Disposable glove dispenser
Type EHS
FURTHER
Disposable paper dispenser
Type EPA
FURTHER
Disposable protective goggle dispenser
Type EBS
FURTHER
Disposable workcoat / overall dispenser
Type EKS
FURTHER
Disposable Multi dispenser
Type EMS
FURTHER
Roll holder
Type RH-W 1
FURTHER
Waste Baskets
Type PK-E
FURTHER
Towel dispenser
Type HTSP-E-VA
FURTHER
Glove dispenser
Type HSD
FURTHER
Utensil dispenser
Type US
FURTHER
