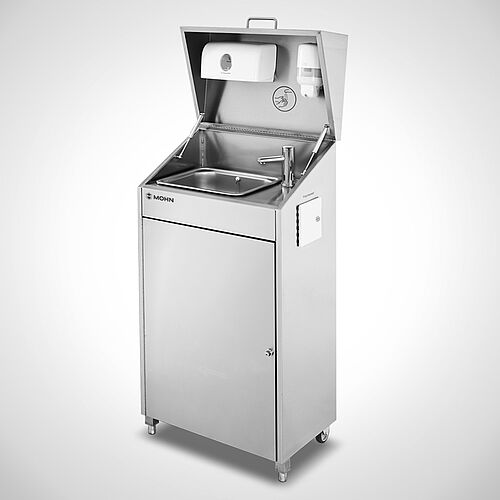

Mobile Hygiene Station
Typ MHS-1

"Highline"-Version: Partly self-sufficient

  • Solid stainless steel cabinet
  • Mobile with handle on 2 fixed castors
  • 1 hand wash basin with mono-lever mixer tap
  • Paper towel and soap dispenser integrated in cover of cabinet
  • Type MHS-1c: additionally with sensor faucet and contactless soap dispenser
  • Cover easy opened by pressure cylinder

    TypeVersionAssembly basin
    (W x D x H)    		Dimensions
    W x D x H in mm    		PDF
    MHS-1Partially self-sufficient400 x 325 x 120640 x 400 x 120090.00.00.16
    MHS-1aNo self-sufficient400 x 325 x 120640 x 400 x 120090.00.01.16
    MHS-1cNo self-sufficient resp. self-sufficient400 x 325 x 120640 x 400 x 120090.00.03.16
    Special dimensions
    Dimensions with lid closed
    We manufacture individually according to customer requirements


    Quick request

    No product in the request list!

    Please select the desired article on the gray field next to the article no. by clicking the mouse.

    Material

    Rustproof stainless steel 1.4301

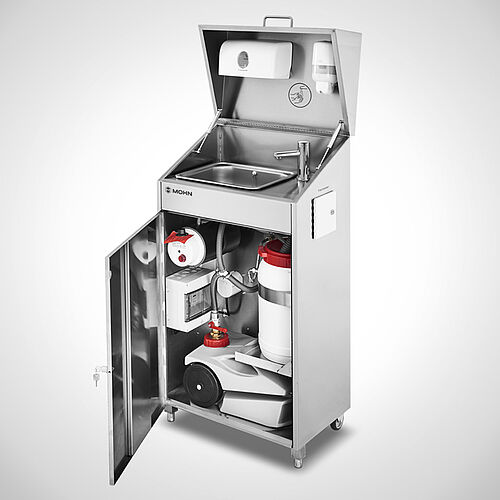

    TYPE MHS-1

    • Integrated drink water bin (19 Liter):
      manual filling or by fix water connection.
    • Filling by fix water connection:
      Float valve prevented the water overflow of the bin
    • Warm water processing: 3-Liter low-pressure reservoir
    • More necessary water pressure for mixing tape
      are regulated by microswitch-controlled pump
    • Sewage-disposal takes place by an integrated
      sewage bin (22 Liter) or by fix sewage connection



    Type MHS-1a

    • As Type MHS-1 but without integrated drink water bin and sewage bin as well as pump:
      The suplly of drink water and sewage disposal takes place by fix drink water and sewage connection
      (drink water pipe and sewage pipe - pipes with GEKA-coupling - must be provided on site)
    • Warm water processing by 5 Liter low-pressure reservoir



    Type MHS-1a

    This mobile hygiene station offers the possibility of supply and disposal, flexibly according to location to undertake. Depending on the situation, the supply via the tank system or via the fixed connections is possible. Supply via the permanent connection and disposal via tank is also possible (and vice versa).

    Technical Data

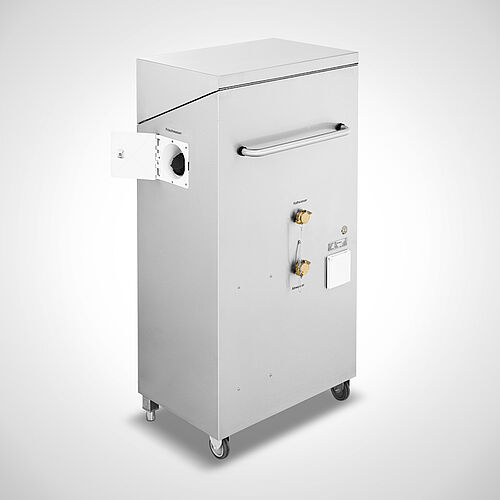

    Power supply230 V (2 mtr. connector cable incl.)
    Drain1/2 " (Geka-coupling) by fix connection
    Water connection1/2 " (Geka-coupling) by fix connection
    Filler neck on the right sideManual drink water filling (only type MHS-1)
    Fresh water tank capacity19 ltr. (Type MHS-1)
    Waste water tank capacity22 ltr. (Type MHS-1)
