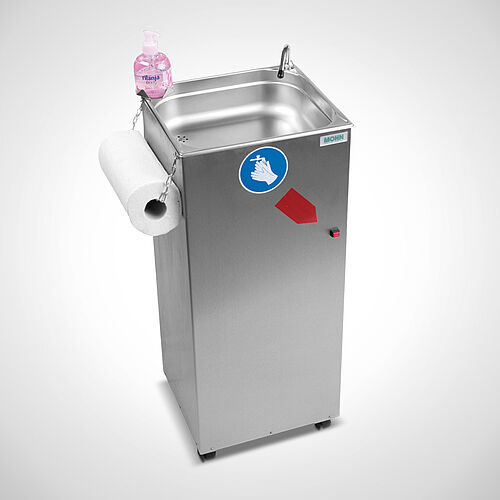

Mobile Hygiene station
Type MHS-Eco
"Ecoline"-version: completely self-sufficient
- Stainless steel carcass, open at back
- Mobile version with 4 steering roller
- Wash basin with drain and water supply
- Knee contact switch on frontside
- Fresh water tank with 25 Liter volume
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Rustproof stainless steel 1.4301
Information
- 12 Volt submersible pump incl. 6 V-battery
- Plastic tank with 25 Liter volume and with integrated separation of sewage and drink water;
manually fill and empty - Warm water conditioning by heating element (option)
Description
If the knee switch is touched, water - by means of a submersible pump - flows from the inlet tube into the pelvis for hand washing.
For hot water preparation, an optionally available immersion heater is available. The dirty water runs through the drain and flows back through a hose back into the tank.
However, the fresh water in the container is separated from the sewage by foil pouch, this means 25 liters of dirty water slowly replaces 25 liters of fresh water.
Refill tank:
Remove tank, pour out foil pouch with waste water, refill tank with warm or hot water.
Easy cleaning:
Wash basin and connection hoses are removable.
The towel roll is hung on the side. The soap dispenser holder is screwed.
Technical Data
Power supply | 230 V, 50 Hz. (only with heating element) |
---|---|
Weight | appr. 11 kg |
Tank capacity | 25 Ltr. |
Basin capacity | 25 ltr. |
