4 drawers

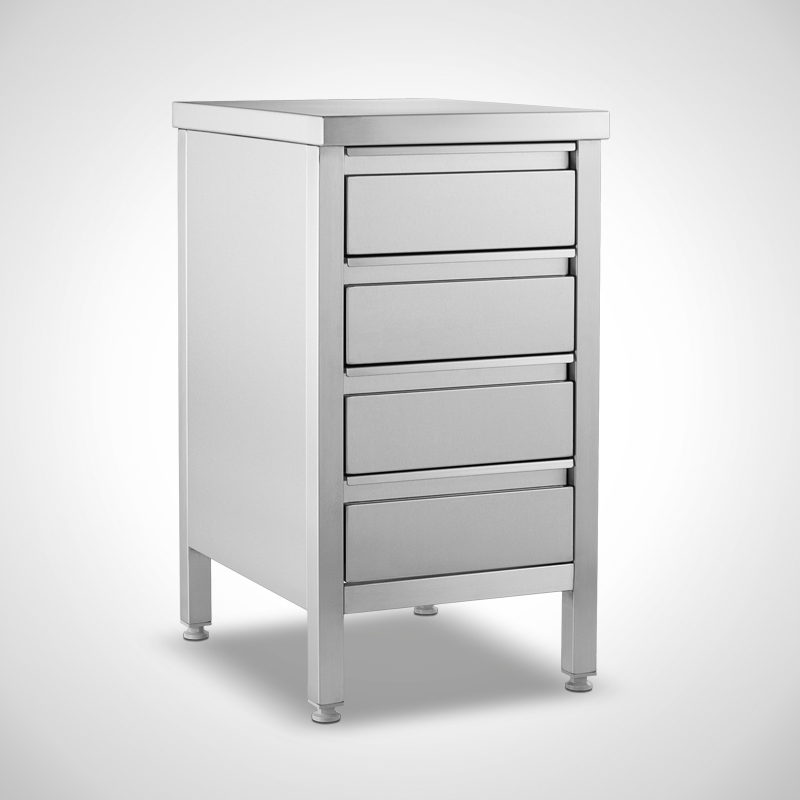

Drawers block
Type ASL-4

Drawer blocks are applicable for all kinds of industry and product-ranges

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • Worktop in 1.5 mm material thickness
  • Worktop smoothly chamfered on all sides
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • With 4 box drawers with partial pull-out (2/3) on the operator side, drawers in H: 155 mm
  • 4 height-adjustable (+/- 30 mm) plastic screwfeet
  • Standard ground clearance: 150 mm
  • Overall height: 850 mm

TypeDepth
in mm
Dimensions
W x D x H in mm
PDF
Depth: 600 mm

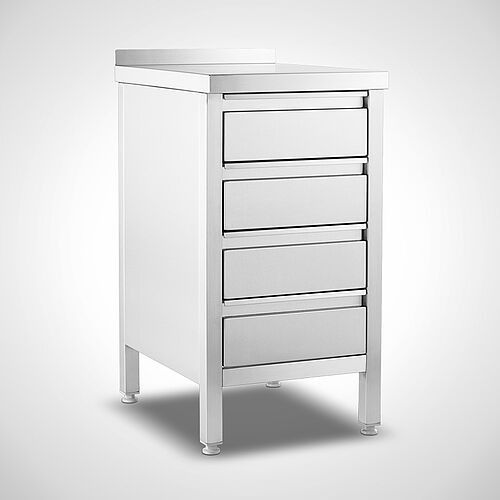

ASL-4 445-600600 mm445 x 600 x 85021.00.08.71
ASL-4 655-600600 mm655 x 600 x 85021.00.08.72
ASL-4 775-600600 mm775 x 600 x 85021.00.08.73
Depth: 700 mm
ASL-4 445-700700 mm445 x 700 x 85021.00.08.74
ASL-4 655-700700 mm655 x 700 x 85021.00.08.75
ASL-4 775-700700 mm775 x 700 x 85021.00.08.76
Depth: 800 mm
ASL-4 445-800800 mm445 x 800 x 85021.00.08.77
ASL-4 655-800800 mm655 x 800 x 85021.00.08.78
ASL-4 775-800800 mm775 x 800 x 85021.00.08.79
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions in mm. Other designs on request!



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish



Options

  • Drawers, lockable by means of profile cylinder lock
  • Box drawers with full pull-out
