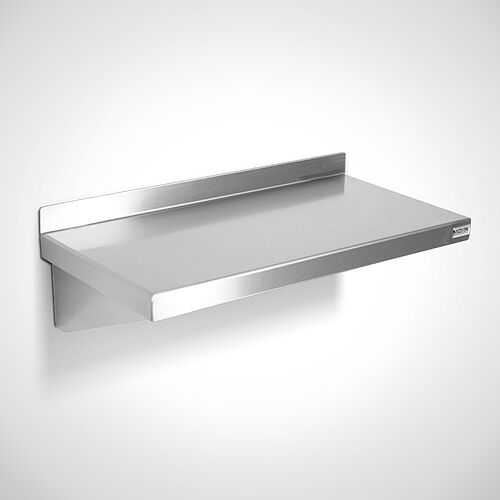

Fixed welded wall board Type WB-AFixed welded wall board Type WB-A

Wall board
Type WB-A

Applicable for all kinds of industry
  • Boards, chamfered on 3 sides, rear backsplash
  • Board underside open
  • Fixed welded wall board, not height-adjustable
  • With 2 consoles with key-hole drilling for wall mounting
  • Different Widths and depths available
  • Special dimensions on request

TypeVersionDimensions
W x D x H in mm		PDF
Depth 200 mm
WB-A 50-201-level/ fixed welded500 x 200 x 7020.00.60.01
WB-A 60-201-level/ fixed welded600 x 200 x 7020.00.60.04
WB-A 70-201-level/ fixed welded700 x 200 x 7020.00.60.07
WB-A 80-201-level/ fixed welded800 x 200 x 7020.00.60.10
WB-A 90-201-level/ fixed welded900 x 200 x 7020.00.60.13
WB-A 100-201-level/ fixed welded1000 x 200 x 7020.00.60.16
WB-A 110-201-level/ fixed welded1100 x 200 x 7020.00.60.19
WB-A 120-201-level/ fixed welded1200 x 200 x 7020.00.60.22
WB-A 130-201-level/ fixed welded1300 x 200 x 7020.00.60.25
WB-A 140-201-level/ fixed welded1400 x 200 x 7020.00.60.28
WB-A 150-201-level/ fixed welded1500 x 200 x 7020.00.60.31
WB-A 160-201-level/ fixed welded1600 x 200 x 7020.00.60.34
WB-A 170-201-level/ fixed welded1700 x 200 x 7020.00.60.37
WB-A 180-201-level/ fixed welded1800 x 200 x 7020.00.60.40
WB-A 190-201-level/ fixed welded1900 x 200 x 7020.00.60.43
WB-A 200-201-level/ fixed welded2000 x 200 x 7020.00.60.46
WB-A 210-201-level/ fixed welded2100 x 200 x 7020.00.60.49
WB-A 220-201-level/ fixed welded2200 x 200 x 7020.00.60.52
WB-A 230-201-level/ fixed welded2300 x 200 x 7020.00.60.55
WB-A 240-201-level/ fixed welded2400 x 200 x 7020.00.60.58
WB-A 250-201-level/ fixed welded2500 x 200 x 7020.00.60.61
WB-A 260-201-level/ fixed welded2600 x 200 x 7020.00.60.64
WB-A 270-201-level/ fixed welded2700 x 200 x 7020.00.60.67
WB-A 280-201-level/ fixed welded2800 x 200 x 7020.00.60.70
WB-A 290-201-level/ fixed welded2900 x 200 x 7020.00.60.73
WB-A 300-201-level/ fixed welded3000 x 200 x 7020.00.60.76
Depth 300 mm
WB-A 50-301-level/ fixed welded500 x 300 x 7020.00.60.02
WB-A 60-301-level/ fixed welded600 x 300 x 7020.00.60.05
WB-A 70-301-level/ fixed welded700 x 300 x 7020.00.60.08
WB-A 80-301-level/ fixed welded800 x 300 x 7020.00.60.11
WB-A 90-301-level/ fixed welded900 x 300 x 7020.00.60.14
WB-A 100-301-level/ fixed welded1000 x 300 x 7020.00.60.17
WB-A 110-301-level/ fixed welded1100 x 300 x 7020.00.60.20
WB-A 120-30 1-level/ fixed welded1200 x 300 x 7020.00.60.23
WB-A 130-301-level/ fixed welded1300 x 300 x 7020.00.60.26
WB-A 140-301-level/ fixed welded1400 x 300 x 7020.00.60.29
WB-A 150-301-level/ fixed welded1500 x 300 x 7020.00.60.32
WB-A 160-301-level/ fixed welded1600 x 300 x 7020.00.60.35
WB-A 170-301-level/ fixed welded1700 x 300 x 7020.00.60.38
WB-A 180-301-level/ fixed welded1800 x 300 x 7020.00.60.41
WB-A 190-301-level/ fixed welded1900 x 300 x 7020.00.60.44
WB-A 200-301-level/ fixed welded2000 x 300 x 7020.00.60.47
WB-A 210-301-level/ fixed welded2100 x 300 x 7020.00.60.50
WB-A 220-301-level/ fixed welded2200 x 300 x 7020.00.60.53
WB-A 230-301-level/ fixed welded2300 x 300 x 7020.00.60.56
WB-A 240-301-level/ fixed welded2400 x 300 x 7020.00.60.59
WB-A 250-301-level/ fixed welded2500 x 300 x 7020.00.60.62
WB-A 260-301-level/ fixed welded2600 x 300 x 7020.00.60.65
WB-A 270-301-level/ fixed welded2700 x 300 x 7020.00.60.68
WB-A 280-301-level/ fixed welded2800 x 300 x 7020.00.60.71
WB-A 290-301-level/ fixed welded2900 x 300 x 7020.00.60.74
WB-A 300-301-level/ fixed welded3000 x 300 x 7020.00.60.77
Depth 400 mm
WB-A 50-401-level/ fixed welded500 x 400 x 7020.00.60.03
WB-A 60-401-level/ fixed welded600 x 400 x 7020.00.60.06
WB-A 70-401-level/ fixed welded700 x 400 x 7020.00.60.09
WB-A 80-401-level/ fixed welded800 x 400 x 7020.00.60.12
WB-A 90-401-level/ fixed welded900 x 400 x 7020.00.60.15
WB-A 100-401-level/ fixed welded1000 x 400 x 7020.00.60.18
WB-A 110-401-level/ fixed welded1100 x 400 x 7020.00.60.21
WB-A 120-401-level/ fixed welded1200 x 400 x 7020.00.60.24
WB-A 130-401-level/ fixed welded1300 x 400 x 7020.00.60.27
WB-A 140-401-level/ fixed welded1400 x 400 x 7020.00.60.30
WB-A 150-401-level/ fixed welded1500 x 400 x 7020.00.60.33
WB-A 160-401-level/ fixed welded1600 x 400 x 7020.00.60.36
WB-A 170-401-level/ fixed welded1700 x 400 x 7020.00.60.39
WB-A 180-401-level/ fixed welded1800 x 400 x 7020.00.60.42
WB-A 190-401-level/ fixed welded1900 x 400 x 7020.00.60.45
WB-A 200-401-level/ fixed welded2000 x 400 x 7020.00.60.48
WB-A 210-401-level/ fixed welded2100 x 400 x 7020.00.60.51
WB-A 220-401-level/ fixed welded2200 x 400 x 7020.00.60.54
WB-A 230-401-level/ fixed welded2300 x 400 x 7020.00.60.57
WB-A 240-401-level/ fixed welded2400 x 400 x 7020.00.60.60
WB-A 250-401-level/ fixed welded2500 x 400 x 7020.00.60.63
WB-A 260-401-level/ fixed welded2600 x 400 x 7020.00.60.66
WB-A 270-401-level/ fixed welded2700 x 400 x 7020.00.60.69
WB-A 280-401-level/ fixed welded2800 x 400 x 7020.00.60.72
WB-A 290-401-level/ fixed welded2900 x 400 x 7020.00.60.75
WB-A 300-401-level/ fixed welded3000 x 400 x 7020.00.60.78
Special dimensions
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.



Options

  • Board underside closed, for “High Risk” areas on request

Reference Photos

Mini-wall board type WB-A for example knife-baskets
