Sliding doors

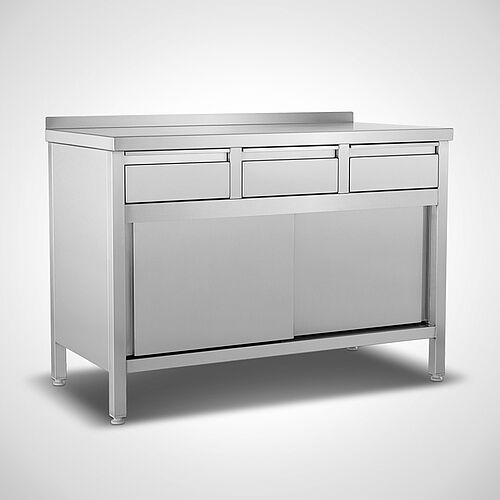

Work cupboard
Type AS-KS

Work cupboards are applicable for all kinds of industry and product-ranges

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • With double-walled sliding doors on the operator side, Material thickness 1.0 mm
  • Worktop in 1.5 mm material thickness
  • Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile
  • Cupboard interior with 1 height-adjustable storage shelf (50 mm) in 1.0 mm material thickness
  • Drawers with partial pull-out below the worktop (quantity depending on length)
  • Drawer dimension: H: 150 mm x W 400 mm
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • 4 or 6 height-adjustable plastic screw feet (+/- 30 mm)
  • From 2,500 mm length with 6 supporting feet
  • Standard ground clearance: 150 mm

TypeDepth
in mm
DrawerDimensions
W x D x H in mm
PDF
Table depth: 600 mm
AS-KS 100-60600 mm2 drawers1000 x 600 x 85022.00.08.33
AS-KS 110-60600 mm2 drawers1100 x 600 x 85022.00.08.34
AS-KS 120-60600 mm2 drawers1200 x 600 x 85022.00.08.35
AS-KS 130-60600 mm2 drawers1300 x 600 x 85022.00.08.36
AS-KS 140-60600 mm3 drawers1400 x 600 x 85022.00.08.37
AS-KS 150-60600 mm3 drawers1500 x 600 x 85022.00.08.38
AS-KS 160-60600 mm3 drawers1600 x 600 x 85022.00.08.39
AS-KS 170-60600 mm3 drawers1700 x 600 x 85022.00.08.40
AS-KS 180-60600 mm3 drawers1800 x 600 x 85022.00.08.41
AS-KS 190-60600 mm4 drawers1900 x 600 x 85022.00.08.42
AS-KS 200-60600 mm4 drawers2000 x 600 x 85022.00.08.43
AS-KS 210-60600 mm4 drawers2100 x 600 x 85022.00.08.44
AS-KS 220-60600 mm4 drawers2200 x 600 x 85022.00.08.45
Table depth: 700 mm
AS-KS 100-70700 mm2 drawers1000 x 700 x 85022.00.08.46
AS-KS 110-70700 mm2 drawers1100 x 700 x 85022.00.08.47
AS-KS 120-70700 mm2 drawers1200 x 700 x 85022.00.08.48
AS-KS 130-70700 mm2 drawers1300 x 700 x 85022.00.08.49
AS-KS 140-70700 mm3 drawers1400 x 700 x 85022.00.08.50
AS-KS 150-70700 mm3 drawers1500 x 700 x 85022.00.08.51
AS-KS 160-70700 mm3 drawers1600 x 700 x 85022.00.08.52
AS-KS 170-70700 mm3 drawers1700 x 700 x 85022.00.08.53
AS-KS 180-70700 mm3 drawers1800 x 700 x 85022.00.08.54
AS-KS 190-70700 mm4 drawers1900 x 700 x 85022.00.08.55
AS-KS 200-70700 mm4 drawers2000 x 700 x 85022.00.08.56
AS-KS 210-70700 mm4 drawers2100 x 700 x 85022.00.08.57
AS-KS 220-70700 mm4 drawers2200 x 700 x 85022.00.08.58
Table depth: 800 mm
AS-KS 100-80800 mm2 drawers1000 x 800 x 85022.00.08.59
AS-KS 110-80800 mm2 drawers1100 x 800 x 85022.00.08.60
AS-KS 120-80800 mm2 drawers1200 x 800 x 85022.00.08.61
AS-KS 130-80800 mm2 drawers1300 x 800 x 85022.00.08.62
AS-KS 140-80800 mm3 drawers1400 x 800 x 85022.00.08.63
AS-KS 150-80800 mm3 drawers1500 x 800 x 85022.00.08.64
AS-KS 160-80800 mm3 drawers1600 x 800 x 85022.00.08.65
AS-KS 170-80800 mm3 drawers1700 x 800 x 85022.00.08.66
AS-KS 180-80800 mm3 drawers1800 x 800 x 85022.00.08.67
AS-KS 190-80800 mm4 drawers1900 x 800 x 85022.00.08.68
AS-KS 200-80800 mm4 drawers2000 x 800 x 85022.00.08.69
AS-KS 210-80800 mm4 drawers2100 x 800 x 85022.00.08.70
AS-KS 220-80800 mm4 drawers2200 x 800 x 85022.00.08.71
Special dimensions
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism, for profile 40x40x1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Drawer with full extension 99800288
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions in mm. Other designs on request.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Informations

Drawer quantity (drawer width : 400 mm):

  • from a length of 500 mm - 1 drawer
  • from a length of 950 mm - 2 drawers
  • from a length of 1,400 mm - 3 drawers
  • from a length of 1,850 mm - 4 drawers

For cleanrooms we also deliver cupboard-interiors in very hygienic-executions H1-3 according to DIN 18865-9



Options

  • Doors lockable by means of profile cylinder lock on request
  • Corner work cupboards, open on the operator side or with hinged door on request
  • Mobile version (2 fixed rollers and 2 castors with locking mechanism), Ø125 mm Article no. 99.90.01.50
  • Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm Article no. 99.90.01.99
