Double-stage worktable with H-strutting
Double-stage worktable with H-strutting
Double-stage work table
Type DST-H
Two sides operated stage work table withH-shape strutted
- Fully welded execution made of stainless steel
- Centre stainless steel table top in 2 mm material thickness
- 2 incorporated steps in dimension (D 400 x T 30 mm)
- 2 or 4 cutting plates on the operator side (HDPE-500) inserted in stainless steel frame
- Lower structure with stable square pipe frame construction (40x40x1.5 mm)
- Plastic cutting plate in 30 mm material thickness
- Colour of the plastic cutting plate in white (standard)
- Optionally also available in red-brown without additional charge, or in
blue, for example, against additional charge - Lower structure in H-form design 3-sided stainless steel profiles - center with profile in "hygienic-design"
- Supporting feet, 100 mm shifted inwards on the side and back
- 4 height-adjustable plastic screw feet (+/- 30 mm)
- Standard ground clearance: 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other executions on request.
Material
Made of chrome-nickel steel 18/10 material No. 1.4301
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as Table legs have a uniform brushed finish
Options
- PE-plastic cutting plate in color red-brown, Article no.22.00.02.50
- Mobile version (2 fixed rollers and 2 castors with locking mechanism), Ø125 mm, Article no. 99.90.01.50
- Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm, Article no. 99.90.01.99
- Manual or electric height adjustment (ERGO) on request
- Built-in box drawer, W 400 x D 500 x H 200 mm on request
- Built-in box drawer, W 400 x D 500 x H 200 mm lockable on request
- Drawers with full pull-out on request
- Lower structure with storage grate, longitudinal on request

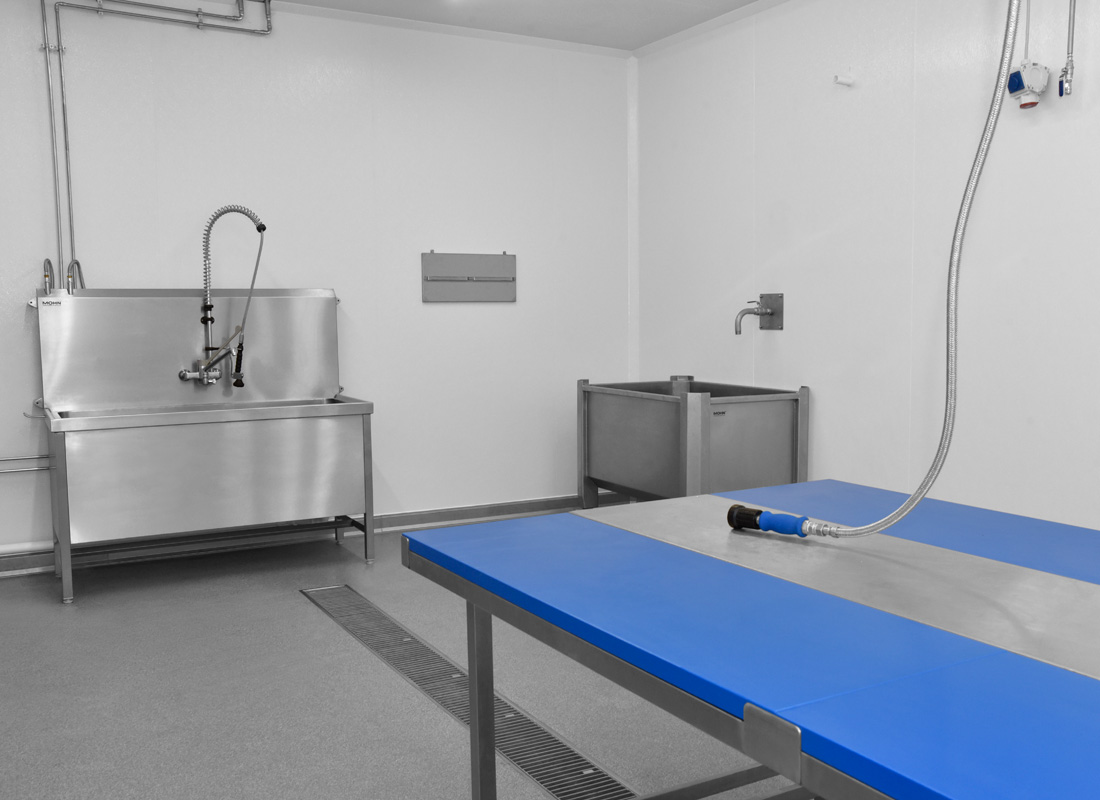

Reference Photos
HDPE/ Food-safe (current)
Signal white
RAL 9003
Light grey
RAL 7035
Dusty grey
RAL 7037
Anthracite grey
RAL 7016
Signal black
RAL 9004
Traffic white
RAL 9016
Pure green
RAL 6037
Mint green
RAL 6029
Light blue
RAL 5012
Sky blue
RAL 5015
Rape yellow
RAL 1021
Pastel-orange
RAL 2003
Telemagenta
RAL 4010
Traffic red
RAL 3020
Red brown
RAL 3011
Granite-bright
HDPE/ Food-safe (expiring colors)
Sulphur-yellow
RAL 1016
Signal green
RAL 6032
Telegrey
RAL 7046
Mouse-grey
RAL 7005
(While stocks last)
INFO The real colors could differ from the representations shown here
