Arbeitstisch-base frame: H-strutting

Buldge-edge tables
Type WRT-H

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel
  • Table top with 1.5 mm material thickness

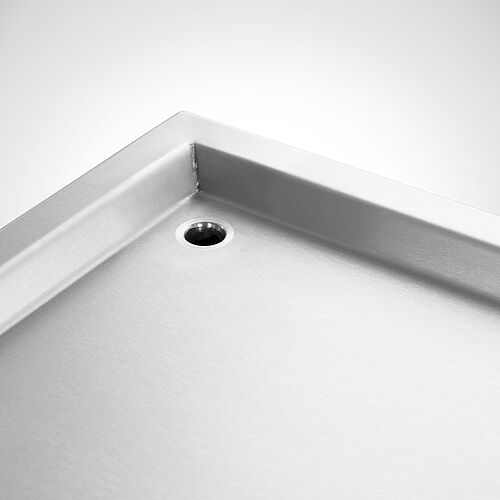

  • Table top with surrounding buldge edge, with discharge opening on the back left
  • Table top, underneath reinforced with surrounding square pipe profile frame
  • Lower structure with stable square pipe frame construction (40 x 40 x 1.5 mm)
  • Lower structure in H-form design 3-sided stainless steel profiles
  • Lower structure - center with profile in "hygienic-design"
  • Supporting feet, shifted inwards on the side and back
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeDepth
in mm
Dimensions
W x D x H in mm
PDF
Table depth: 900 mm
WRT-H 140-90900 mm1400 x 900 x 85020000446
WRT-H 150-90900 mm1500 x 900 x 85020000447
WRT-H 160-90900 mm1600 x 900 x 85020000448
WRT-H 170-90900 mm1700 x 900 x 85020000449

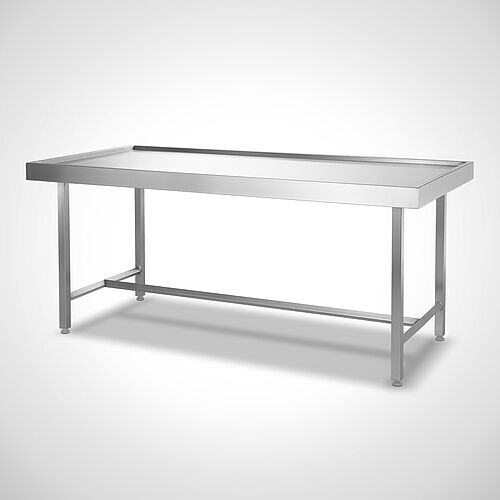

WRT-H 180-90900 mm1800 x 900 x 85020000450
WRT-H 190-90900 mm1900 x 900 x 85020000451
WRT-H 200-90900 mm2000 x 900 x 85020000452
WRT-H 210-90900 mm2100 x 900 x 85020000453
WRT-H 220-90900 mm2200 x 900 x 85020000454
WRT-H 230-90900 mm2300 x 900 x 85020000455
WRT-H 240-90900 mm2400 x 900 x 85020000456
Table depth: 1000 mm
WRT-H 140-1001000 mm1400 x 1000 x 85020000400
WRT-H 150-1001000 mm1500 x 1000 x 85020000401
WRT-H 160-1001000 mm1600 x 1000 x 85020000402
WRT-H 170-1001000 mm1700 x 1000 x 85020000403
WRT-H 180-1001000 mm1800 x 1000 x 85020000404
WRT-H 190-1001000 mm1900 x 1000 x 85020000405
WRT-H 200-1001000 mm2000 x 1000 x 85020000406
WRT-H 210-1001000 mm2100 x 1000 x 85020000407
WRT-H 220-1001000 mm2200 x 1000 x 85020000408
WRT-H 230-1001000 mm2300 x 1000 x 85020000409
WRT-H 240-1001000 mm2400 x 1000 x 85020000410
Table depth: 1100 mm
WRT-H 140-1101100 mm1400 x 1100 x 85020000481
WRT-H 150-1101100 mm1500 x 1100 x 85020000482
WRT-H 160-1101100 mm1600 x 1100 x 85020000483
WRT-H 170-1101100 mm1700 x 1100 x 85020000484
WRT-H 180-1101100 mm1800 x 1100 x 85020000485
WRT-H 190-1101100 mm1900 x 1100 x 85020000486
WRT-H 200-1101100 mm2000 x 1100 x 85020000487
WRT-H 210-1101100 mm2100 x 1100 x 85020000488
WRT-H 220-1101100 mm2200 x 1100 x 85020000489
WRT-H 230-1101100 mm2300 x 1100 x 85020000490
WRT-H 240-1101100 mm2400 x 1100 x 85020000491
Special dimensions
Table leg height adjustment "Easy"  21000886
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions in mm. Other designs on request.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Options

  • Mobile version, Ø125 mm, Art. no. 99.90.01.50
  • Manual resp. electrical height-adjustable on request
