2 drawers

2 drawers

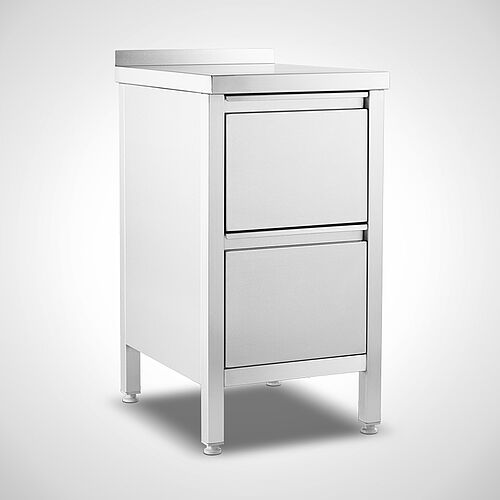

Drawers block made of stainless steel Type ASL-2, art. no. 21.00.02.70Drawers block made of stainless steel Type ASL-2, art. no. 21.00.02.70

Drawers block
Type ASL-2

Drawer blocks are applicable for all kinds of industry and product-ranges

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • Worktop in 1.5 mm material thickness
  • Worktop smoothly chamfered on all sides
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • With 2 box drawers with partial pull-out (2/3) on the operator side, drawers in H: 310 mm
  • 4 height-adjustable (+/- 30 mm) plastic screwfeet
  • Standard ground clearance: 150 mm
  • Overall height: 850 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Depth: 600 mm
ASL-2 445-600600 mm445 x 600 x 85021000270
ASL-2 665-600600 mm665 x 600 x 85021000271
ASL-2 775-600600 mm775 x 600 x 85021000272
Depth: 700 mm
ASL-2 445-700700 mm445 x 700 x 85021000273
ASL-2 665-700700 mm665 x 700 x 85021000274
ASL-2 775-700700 mm775 x 700 x 85021000275
Depth: 800 mm
ASL-2 445-800800 mm445 x 800 x 85021000276
ASL-2 665-800800 mm665 x 800 x 85021000277
ASL-2 775-800800 mm775 x 800 x 85021000278
Special dimensions
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Drawer with full extension 99800288
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism, for profile 40x40x1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions in mm. Other designs on request!



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish



Options

  • Drawers, lockable by means of profile cylinder lock
  • Box drawers with full pull-out
