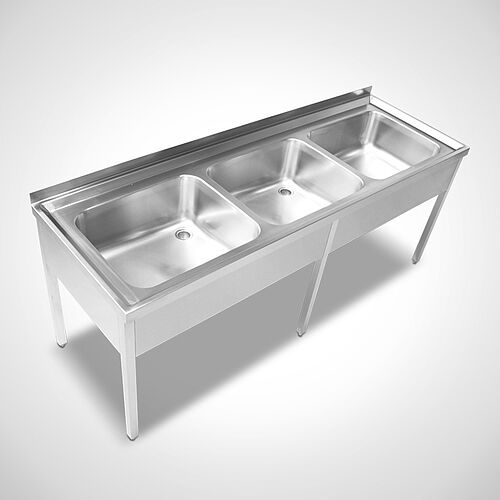

Sink with 3 basins

Sink unit
Type SPT-3B

Robust Industrial sink unit with 3 sinks

  • Robust design completely made of stainless steel
  • Sink unit: 3 sinks with standpipe + valve (2")
  • Optionally with or without sink facing
  • Sink cover with backsplash (50 mm), otherwise folded on 3 sides
  • Standard with beaded and circumferential, rounded edges
  • Sink cover optionally with Ø hole for optional mixing tap / dishwashing shower
  • Smooth drip-off surface area (standard) or coined (option) available
  • Drip-off surface area available on the right or left
  • Sink base optionally strutted, with intermediate shelf or grate, across
  • 4 height-adjustable plastic (level compensation +/- 15 mm)
  • Solid square profile tube frame (40 x 40 x 1,5 mm)
  • Ground clearance 150 mm

TypeVersionBasin size (w x d x h)Dimensions
W x D x H in mm
PDF
SPT-3B/ OA3 sinks without drip-off surface areaaccording to customer requirementsaccording to customer requirements99.10.30.00
SPT-3B/ MA3 sinks with drip-off surface areaaccording to customer requirementsaccording to customer requirements99.10.30.20
Special dimensions
Eccentric drain valve set with sieve basket  93000004
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Sink units are made to measure and your ideas.
Supplied without mixing taps, fittings, dishwashing shower and accessories, such as siphon, angle valves, supply lines, hoses, small parts, etc.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish.



Options

  • Coined dripping surface instead of smooth dripping surface on request
  • Tap hole Ø  (with mixing tap/ dishwashing shower on the building site) on request
  • Mixing taps on request
  • Dishwashing shower on request
