Parts washing place +dishwashing shower

Parts washing place +dishwashing shower

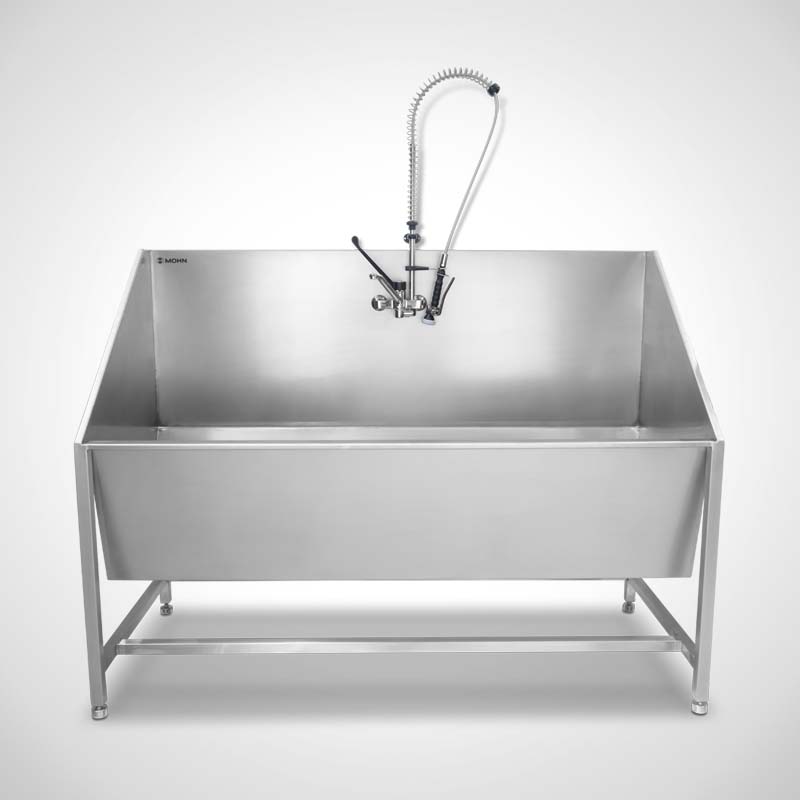

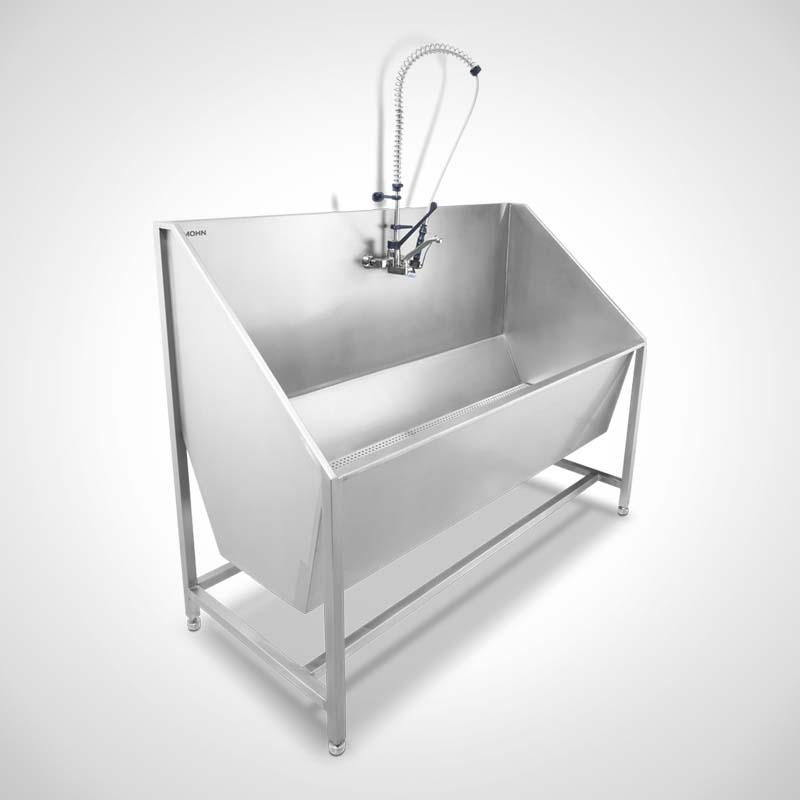

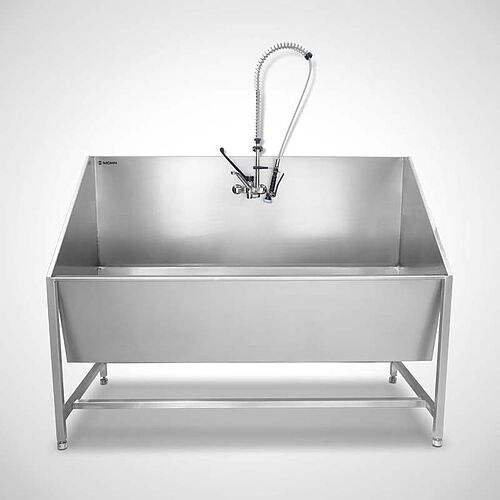

Parts washing station with feet Type TW-S 200x80 SON with optionally dish shower, art. no. 22-65135 +93.00.00.36 Parts washing station with feet Type TW-S 200x80 SON with optionally dish shower, art. no. 22-65135 +93.00.00.36
Parts washing station with feet Type TW-S 200x80 SON with optionally dish shower, art. no. 22-65135 +93.00.00.36 Parts washing station with feet Type TW-S 200x80 SON with optionally dish shower, art. no. 22-65135 +93.00.00.36
Parts washing station with feet Type TW-S 200x80 SON with optionally dish shower, art. no. 22-65135 +93.00.00.36 Parts washing station with feet Type TW-S 200x80 SON with optionally dish shower, art. no. 22-65135 +93.00.00.36

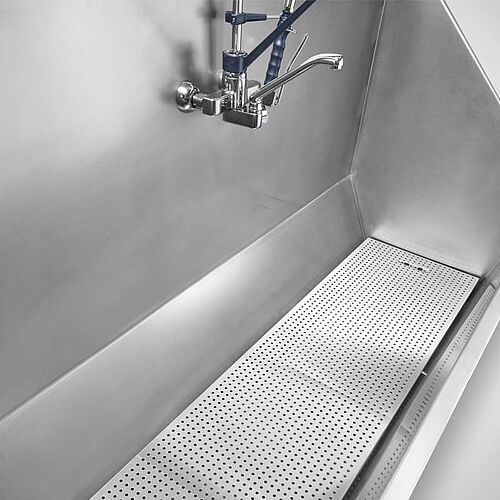

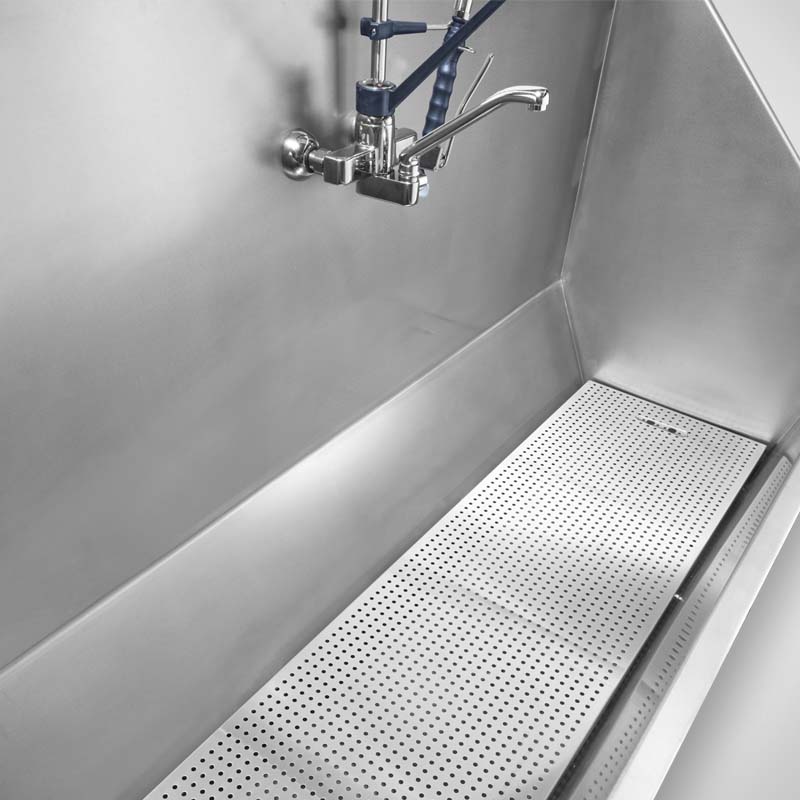

Parts washing station with feet Type TW-S 200x80 SON, Detail washing trough with perforated sheet Parts washing station with feet Type TW-S 200x80 SON, Detail washing trough with perforated sheet

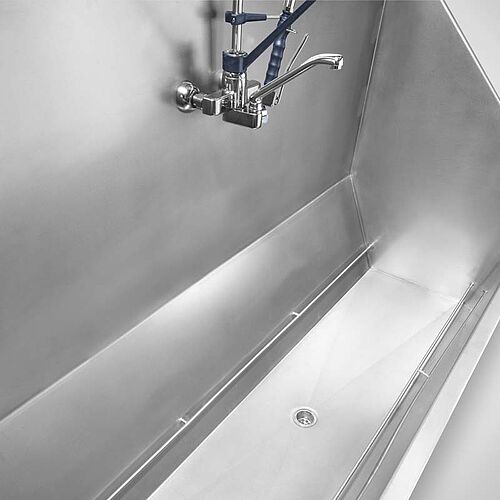

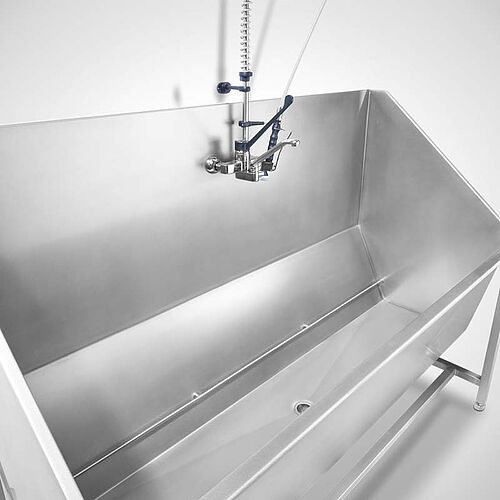

Parts washing station with feet Type TW-S 200x80 SON, Detail washing trough without perforated sheetParts washing station with feet Type TW-S 200x80 SON, Detail washing trough without perforated sheet

Parts washing station
Type TW-S SON

FOR CLEANING CONTAINERS, TOOLS AND OTHER SMALL PARTS

  • Stable, firmly welded industrial version made of stainless steel
  • Wash trough dimensions approx. W 2000 x D 800 x H 1000/ 500 mm
  • Rear wall with 2 holes for optional dishwashing spray
  • Washbasin with drain screw cap DN 50
  • Removable, perforated drip tray above the washing trough bottom
  • Substructure with profile tube frame 40 x 40 x 1.5 mm braced
  • Version with 4 height-adjustable feet
  • Highline feet made of VA
  • Ground clearance approx. 100 mm

TypeVersionBasin size (w x d x h)Dimensions
W x D x H in mm		ComparePDF
TW-S 200/80 SON Feet, Highline-version2000 x 800 x 500/ 10002000 x 800 x 150022-6513522-65135
Special dimensions
Transition piece with internal thread 2 "/ 50mm 99999998
Dish shower, 2 hole, wall-mounted  93000036
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

1715153667454971715096417
8743
4701
8
Show Lightbox Compare
Comparedata

Other dimensions or designs on request. Delivery without accessoires.



Material

Made of rustproof stainless steel 1.4301



Option

  • Dish shower Type GEWB-2L/W-1, 2-hole wall, art. no. 93.00.00.36
