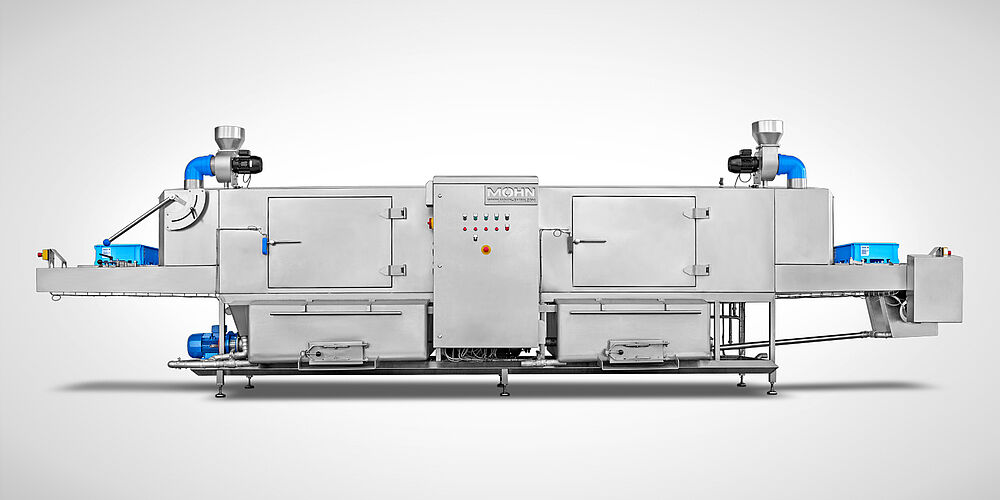

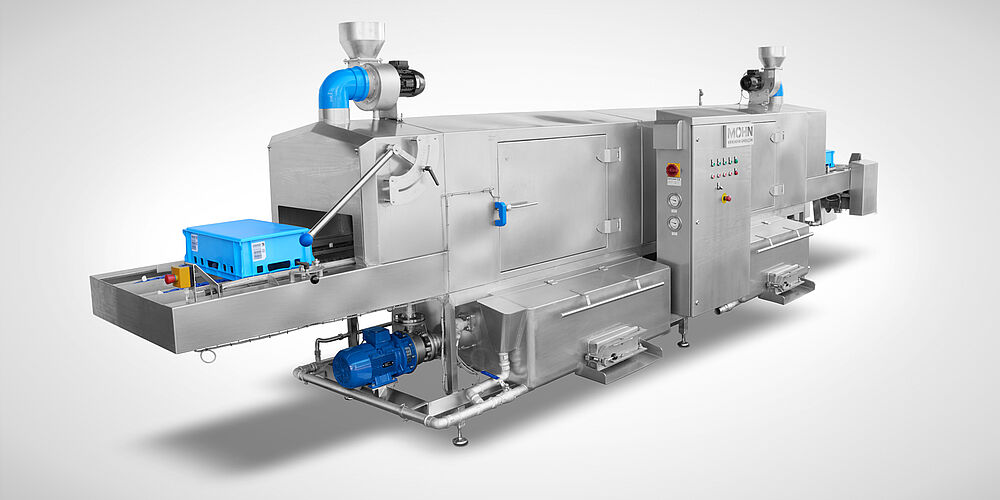

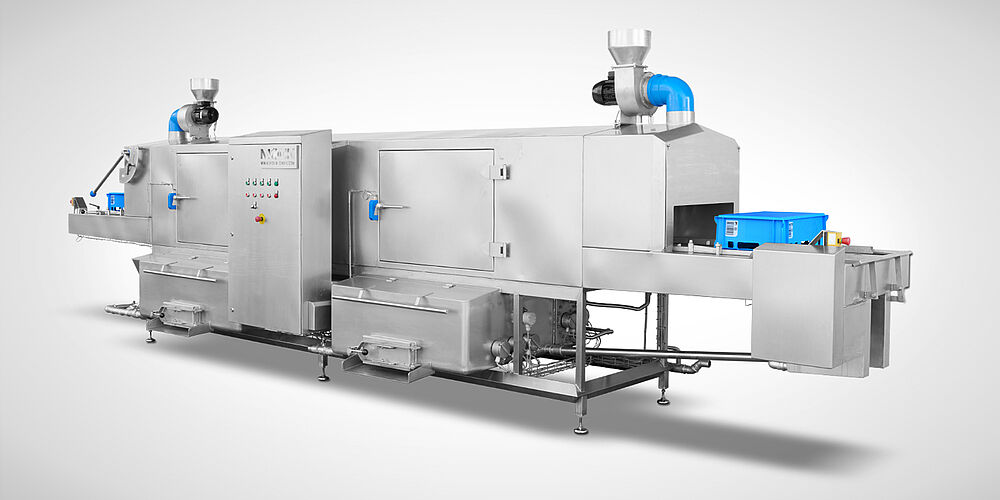

Box washing system
Type DLWA 400-2T Highline
Multi tank pass-through washing system for 400 - 500 crates per hour
- Completely double-walled, soundproof and heat insulated machine housing made of one piece and completely welded, lowenergy consumption
- Prewash zone, length: 1800 mm with pump capacity 4 kW-1200 ltr./m. at 1,5 bar
- Mainwash zone, length: 1800 mm with pump capacity 7,5 kW-1000 ltr./m. at 3 bar
- Tank volume depends on filter type execution
- Nozzle arms with stainless steel nozzles can be removed and cleaned without any tools (Nozzle arms with forced positioning)
- Infeed table: Length 1,500 mm / Outfeed table: Length 1,500 mm with limit switch (Belt + final rinsing stop with full outfeed table)
- Longitudinal or transverse through-feed with a Scanbelt bone chain, clearly slanted with Euronorm containers
- Passage height suitable for Euronorm E1-E3-crates, adjustable on request for customer-specific items to be washed
- Tunnel pass-through with height adjustment via easily adjustable hold-down devices
- strong stainless steel centrifugal pump with high circulation and strong wash pressure
- Plate filter that can be removed via the maintenance door, for simple soiling and daily outputs up to
1,000 pieces; external filter tank for taking up larger amounts of dirt see options. - Electric tank heater: 3x 10 kW; optional with steam directly or via heat exchanger
- Optionally with blow-off tunnel in different performance levels, depending on desired blow-off result
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*Width depends on filter type execution.
Technical data depends on equipment. Errors and omissions excepted. Information provided without guarantee.
Material
Edelstahl rostfrei 1.4301
Information
Prewash zone:
Tank volume with plate filter: 300 ltr.
Tank volume with outside box filter: 450 ltr.
Tank volume with drum filter: 600 ltr.
Mainwash zone:
Tank volume with outside box filter: 500 ltr.
Tank volume with drum filter: 700 ltr.
Options
- External filter tank Article no. 11.10.00.87
- Drum filter at 90° angle to the machine Article no. 11.10.01.34
- Fresh water pre-spraying <45°C inlet temp. Article no. 11.10.00.69
- Fresh water pre-spraying >50°C inlet temp. Article no. 11.10.00.68
- Vapour exhaust without piping (2x required) Article no. 11.10.02.74
- Waste water heat exchanger for fresh water heating Article no. 11.10.02.80
- Tank heater with direct steam Article no. 11.10.00.84
- Steam heat exchanger washing tank Article no. 11.10.00.83
- Hot water or thermal oil heat exchanger for washing tank Article no. 11.10.02.81
- Clear rinsing boiler 1x10kW Article no. 11.10.00.86
- Clear rinsing boiler 2x10kW Article no. 11.10.00.85
- Steam heat exchanger final rinsing Article no. 11.10.00.82
- Blow off DLWA-BS-1, 1 fans á 5.5kW, length 2300mm Article no. 11.10.00.89
- Blow off DLWA-BS-2, 2 fans á 5.5kW, length 2300mm Article no. 11.10.00.88
- Blow off DLWA-BS-3, 3 fans á 5.5kW, length 3700mm Article no. 11.10.01.32
- Blow off DLWA-BS-4, 4 Fans á 5.5kW, length 4100mm Article no. 11.10.01.33
Technical Data
| Power supply | 3x 400 V/ N/ PE; 50 Hz |
|---|---|
| Drain | DN 50 |
| Water connection | 2x 3/4“, min. 40°C in main wash and 15-85°C in after rinsing area, 2-5 bar, 2-8°dH |
| Water consumption | approx. 400 l/h |
| Heater | 3x 10 KW (electrical) |
| Tank capacity | see description |
| Pump capacity | 4 kW 1200 ltr./min. 1,5 bar (Pre wash zone) / 7,5 kW 1000 L/m 3 bar (Main wash zone) |
| Washing tunnel length | each 1800 mm (pre wash zone and main wash zone) |
| Exhaust air | DN 250 (Stutzen) |
| Wash tunnel dimensions (w x h) | 610 x 410 mm |
| Working height | 950 mm (ergonomic) |
Nozzle arm
Numbered nozzle arms avoid confusion after cleaning and maintenance
Nozzles
Stainless steel nozzles with an optimal opening angle for a good cleaning effect. Insensitive to pollution.
Conveyor belt
Scanbelt bone chain, durable and extremely flexible
Control cabinet
Large control cabinet with high-quality control components from well-known manufacturers.
Box slanting passages
Box slanting passges for less water diversion.
Double-walled housing
30mm insulated, double-walled tunnel housing for low energy consumption. With large maintenance doors for easy internal cleaning.
Holddown height adjustment
Easy height adjustment of the holddown device to clean differently high items in the wash tunnel.
Stainless steel centrifugal pump
Powerful stainless steel centrifugal pump with high circulation and high wash pressure.
Outside box filter
Large outside box filter for taking up large amounts of dirt. Easy cleaning of the filter boxes also during running operation.
Robust frame rack
Robust profile tube frame rack made of stainless steel. Protects against damage.
