Serving trolley Ecoline

Serving trolley Ecoline

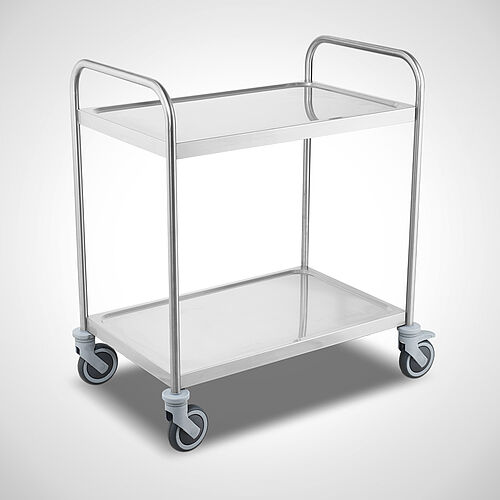

Ecoline serving trolley, collapsible model SW-8-5-2-z with plastic swivel castors, Item No. 43.00.02.02 Ecoline serving trolley, collapsible model SW-8-5-2-z with plastic swivel castors, Item No. 43.00.02.02

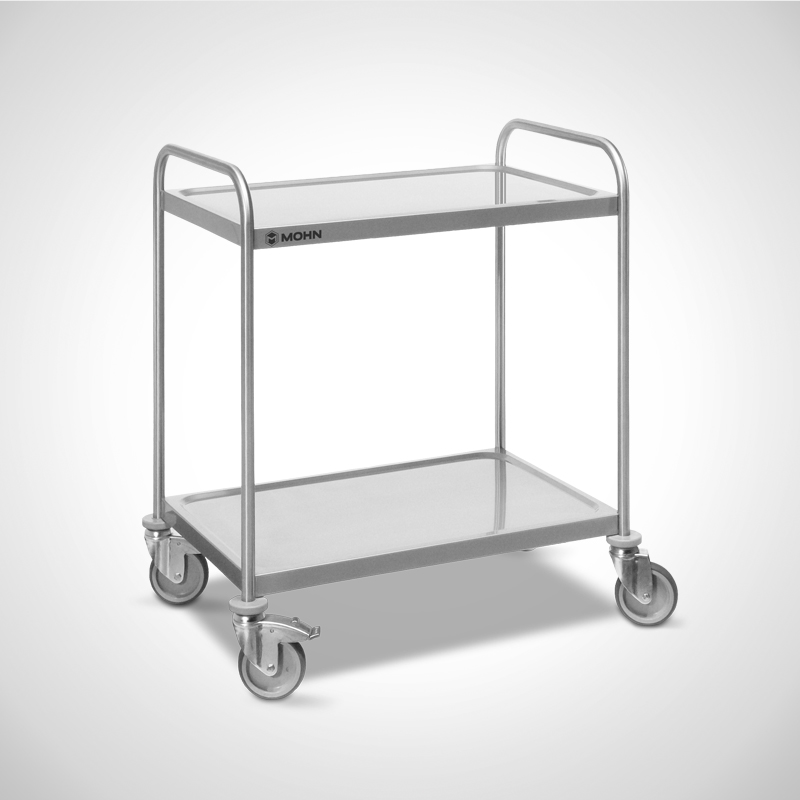

Ecoline serving trolley, collapsible model SW-8-5-2-z Plus with stainless steel swivel castors, Item No. 43.00.02.08 Ecoline serving trolley, collapsible model SW-8-5-2-z Plus with stainless steel swivel castors, Item No. 43.00.02.08

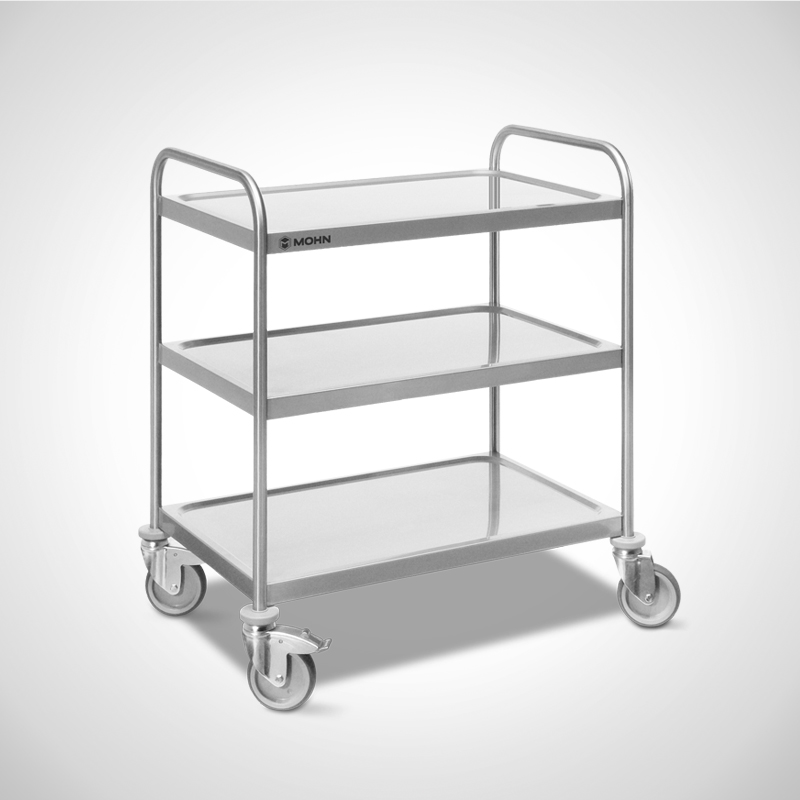

Ecoline serving trolley, collapsible type SW-8-5-3-z Plus with stainless steel swivel castors, Item No. 43.00.02.09 Ecoline serving trolley, collapsible type SW-8-5-3-z Plus with stainless steel swivel castors, Item No. 43.00.02.09

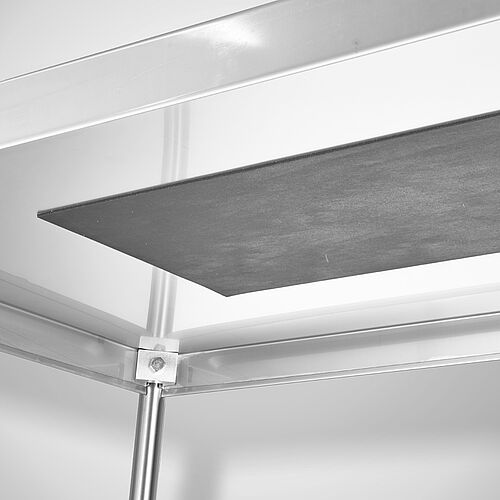

Ecoline serving trolley, detail: anti-vibration mat beneath the shelf Ecoline serving trolley, detail: anti-vibration mat beneath the shelf

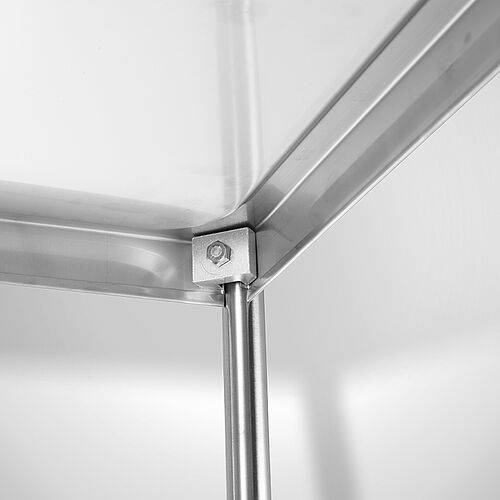

Ecoline serving trolley, collapsible, detail: corner screw connection Ecoline serving trolley, collapsible, detail: corner screw connection

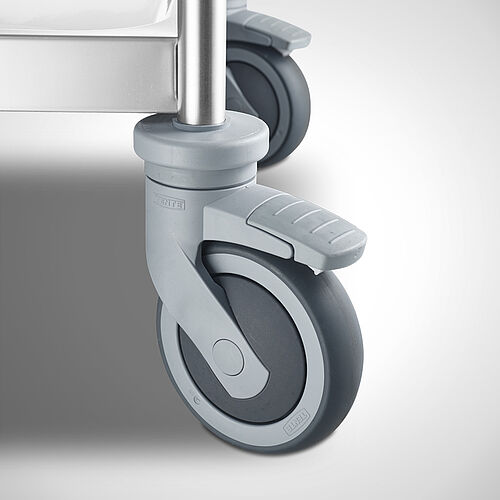

Ecoline serving trolley Type SW-8-5-2-z Ecoline, detail: plastic castor with brake Ecoline serving trolley Type SW-8-5-2-z Ecoline, detail: plastic castor with brake

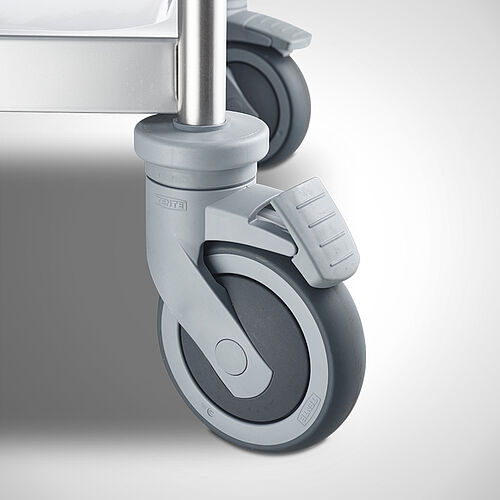

Ecoline serving trolley Type SW-8-5-2-z Ecoline, detail: plastic castor with brake Ecoline serving trolley Type SW-8-5-2-z Ecoline, detail: plastic castor with brake

Serving trolley
Type SW "Ecoline"

Demountable Ecoline design for low pay load
  • Demountable design for low transport costs
  • Serving trolley in Standard and Plus models
  • Available in 3 different shelf sizes
  • Available with either 2 or 3 shelves
  • Shelf spacing: 262 mm or 565 mm
  • Shelves with raised, all-around profile edge
  • Sound-absorbing anti-drone mat under each shelf
  • Standard version: 4 plastic swivel casters Ø 125 mm, 2 with brakes
  • Plus version: 4 stainless steel swivel casters Ø 125 mm, 2 with brakes

TypeLoading capacityshelvesshelf dimensions
in mm		floors
distance		Dimensions
W x D x H in mm		ComparePDF
Standard
 SW 6/4-2-z120 kg 2 630 x 400565 mm700 x 475 x 97043.00.02.0043.00.02.00
 SW 6/4-3-z150 kg 3 630 x 400262 mm700 x 475 x 97043.00.02.0143.00.02.01
 SW 8/5-2-z120 kg 2 800 x 500565 mm870 x 575 x 97043.00.02.0243.00.02.02
 SW 8/5-3-z150 kg 3 800 x 500262 mm870 x 575 x 97043.00.02.0343.00.02.03
 SW 10/6-2-z120 kg 2 1000 x 600565 mm1070 x 675 x 97043.00.02.0443.00.02.04
 SW 10/6-3-z150 kg 3 1000 x 600262 mm1070 x 675 x 97043.00.02.0543.00.02.05
Plus
 SW 6/4-2-z Plus120 kg 2 630 x 400565 mm700 x 475 x 97043.00.02.0643.00.02.06
 SW 6/4-3-z Plus150 kg 3 630 x 400262 mm700 x 475 x 97043.00.02.0743.00.02.07
 SW 8/5-2-z Plus120 kg 2 800 x 500565 mm870 x 575 x 97043.00.02.0843.00.02.08
 SW 8/5-3-z Plus150 kg 3 800 x 500262 mm870 x 575 x 97043.00.02.0943.00.02.09
 SW 10/6-2-z Plus120 kg 2 1000 x 600565 mm1070 x 675 x 97043.00.02.1043.00.02.10
 SW 10/6-3-z Plus150 kg 3 1000 x 600262 mm1070 x 675 x 97043.00.02.1143.00.02.11


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

2061
1655
8
Show Lightbox Compare
Comparedata

Errors and technical changes reserved



Material

Made of stainless steel 1.4301



Description

Delivery takes place disassembled.
