Hand pallet truck, semi AISI

Hand pallet truck, semi AISI

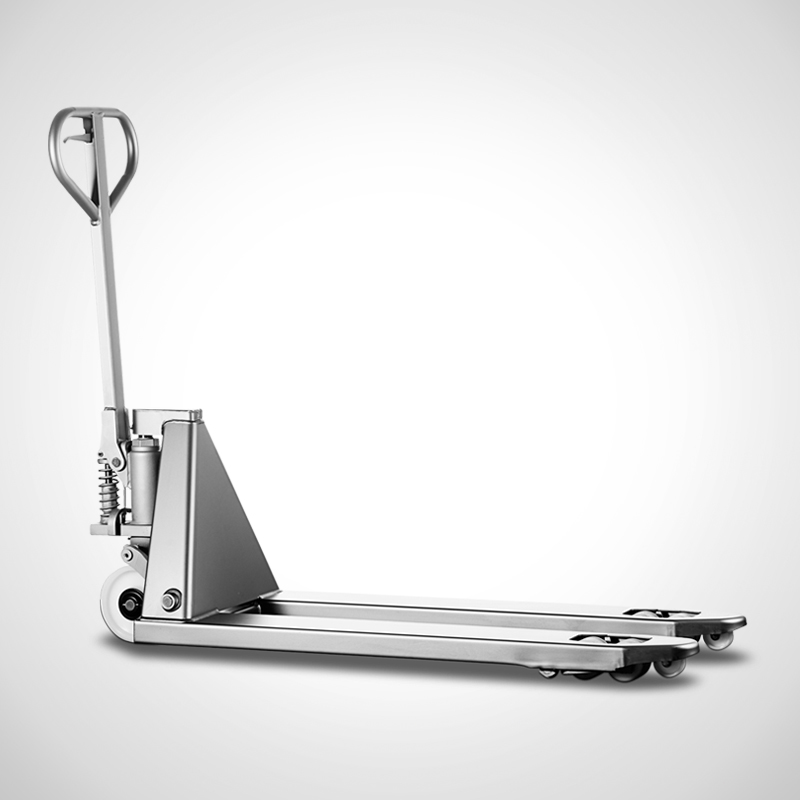

Hand pallet truck Type GHW OA-Semi II, art. no. 30.00.00.40Hand pallet truck Type GHW OA-Semi II, art. no. 30.00.00.40

Hand pallet truck
Type GHW OA-Semi II

The best solutions for a steady, professional usage in hygiene areas

  • Stainless Chassis, handle, axle, pistions, bearings and pins
  • Hot Galvanised, bars, rear rocker arm
  • Zink sprayed Pump and front rocker arm
  • Steering wheels and tandem fork rollers made of Nylon
  • Stainless steel surface is glass blastered
  • CE- , European Union Conformity explanation, detailed manual,
    with maintanace references and exploded view with parts catalog

TypeLoading capacityTotal lengthTotal heightPDF
GHW OA-Semi II2.500 kg1480 mm1140 mm30.00.00.40
Closed forks 30000081
Foot brake 30000082
Hand brake 30000083
Fork height 72 mm 30000084
Fork height 58 mm 30000085
Lifting height 265 mm 30000086
Cold-resistant oil 30000087
Antistatic rollers 30000088
Quick lifting 30000089
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Galvanized and stainless steel 1.4301

Technical Data

Weight76 kg
Loading capacity2.500 kg
Lifting height200 mm
Fork length1130 mm
Fork width520 mm
Fork tine width160 mm
Total length1480 mm

You could also be interested in these products:

Details
Hand pallet truck
Type GHW OA-Semi IIFURTHER
Details
Hand pallet truck
Type GHW-VFURTHER
Details

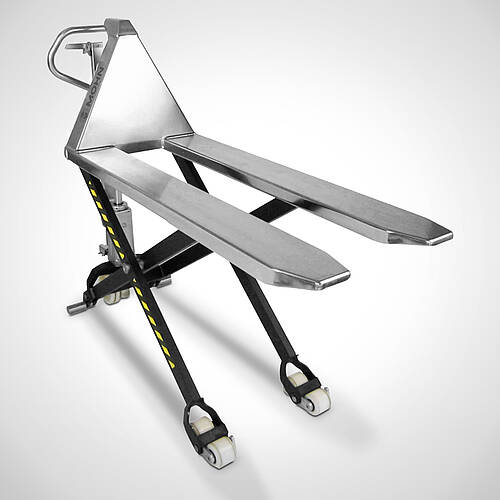

Scissors pallet truck
