Drying cabinet (boots)

Drying cabinet (boots)

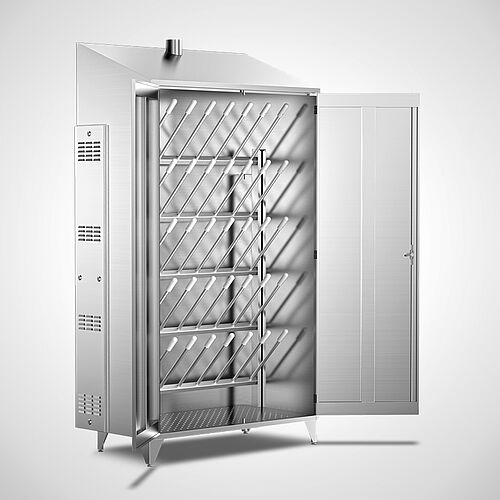

Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52

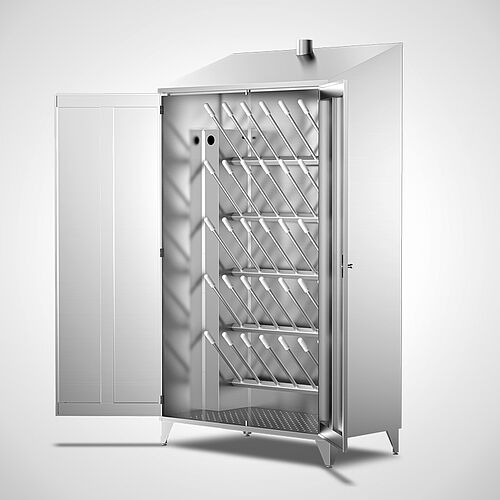

Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 with optional self-closing valves to direct the airflow Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 with optional self-closing valves to direct the airflow

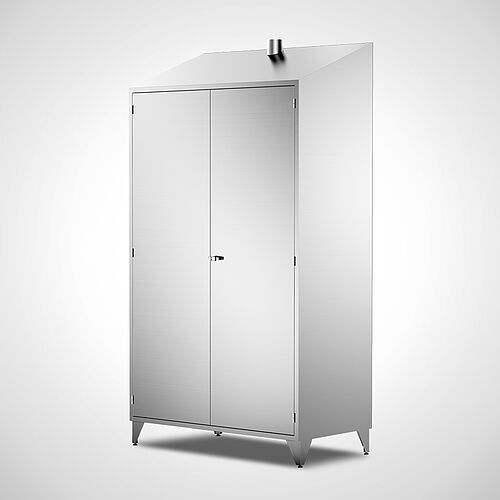

Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52

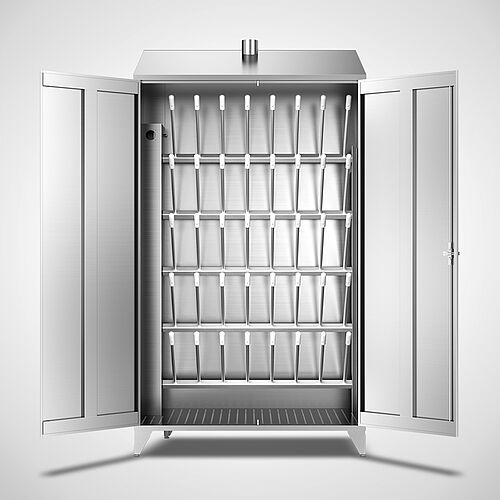

Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 with optional self-closing valves to direct the airflow Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 with optional self-closing valves to direct the airflow

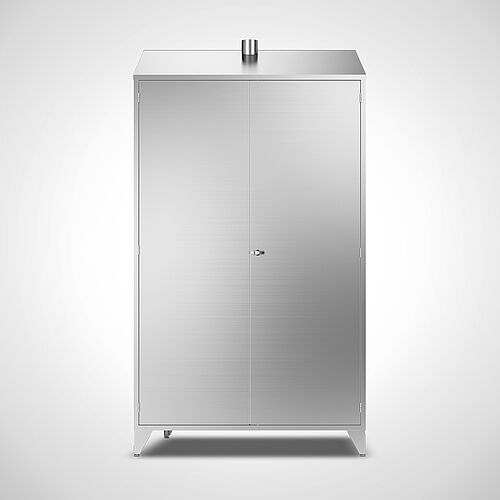

Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52

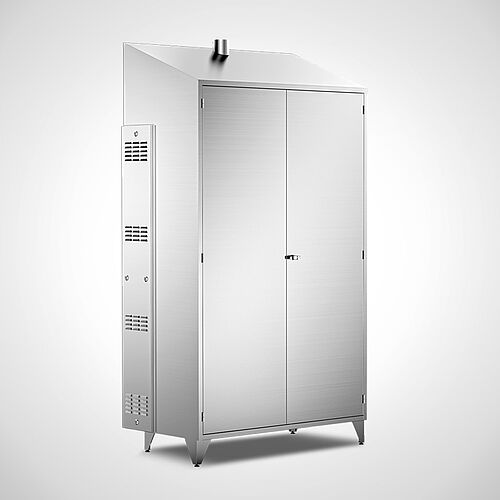

Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 with optional self-closing valves to direct the airflow Warm-air drying cabinet for boots or shoes Type TSD-II-20, art. no. 10.00.03.52 with optional self-closing valves to direct the airflow

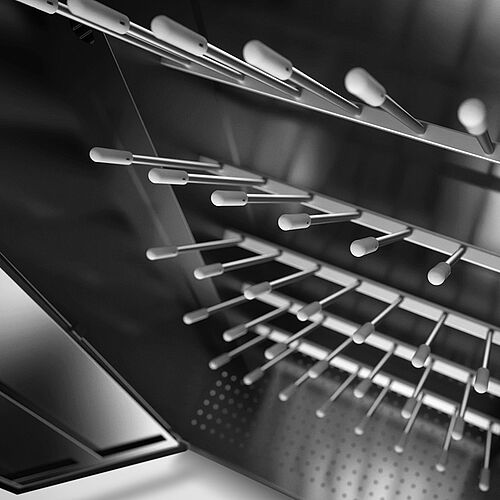

Warm-air drying cabinet for boots or shoes Type TSD-II-20, Detailed interior view showing optional self-closing valves for directing the airflowWarm-air drying cabinet for boots or shoes Type TSD-II-20, Detailed interior view showing optional self-closing valves for directing the airflow

Drying cabinet
Type TSD-II

Warm-air blowing cabinet for boots/ shoes/ clogs
  • Fixed welded stainless steel version
  • 3 different designs available as standard
  • Cabinet body, closed on 3 sides
  • Sloping roof, 250 mm higher at the back, in “Hygienic design“
  • Roof with exhaust air connection (Ø 100 mm)
  • Interior with stainless steel tubular frame construction
  • Stainless steel tube with self-closing valve serves as both ventilation and holder
  • Capacity: 10, 15 or 20 pairs of boots/ clogs/ shoes
  • Drying by means of warm-air-blower
  • 2 leaf doors on the operator side
  • Doors lockable by means of handle
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm
  • Optional self-closing valves to direct the airflow
    to occupied drying stations
  • Optional ozone generator for disinfection and odor reduction

TypeCapacityDimensions
W x D x H in mm		PDF
TSD-II 1010 Pairs of boots/ clogs / shoes780 x 700 x 244010.00.03.50
TSD-II 1515 Pairs of boots/ clogs / shoes1035 x 700 x 244010.00.03.51
TSD-II 2020 Pairs of boots/ clogs / shoes1335 x 700 x 244010.00.03.52
Special dimensions
Self-closing valve (ventilation nozzles)  16000005
Ozone generator for boot disinfection + odor reduction using ozone 99900026
Digital timer with weekly program and 84 memory slots 16000019
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

(Delivery without boots/shoes/clogs)


Material

Rustproof stainless steel 1.4301, completely welded and stained



Options

  • Self-closing valves (spring-loaded caps) for directing the airflow to occupied drying stations, Item No. 16.00.00.05
  • Ozone generator for disinfection and odor reduction using ozone, Item No. 99.90.00.26
  • Digital timer with weekly program and 84 memory slots (replaces daily timer), Item No. 16.00.00.19



INFOrmation

Please check beforehand if the drying cabinet fits through your doors!



Technical Data

Power supply230 V /N/PE; 50 Hz (inclusive 1.5 m protective contact connection cable)
Performance1x 1000 W (Ozone-generator 1,2 kW)
Protection classIP54
