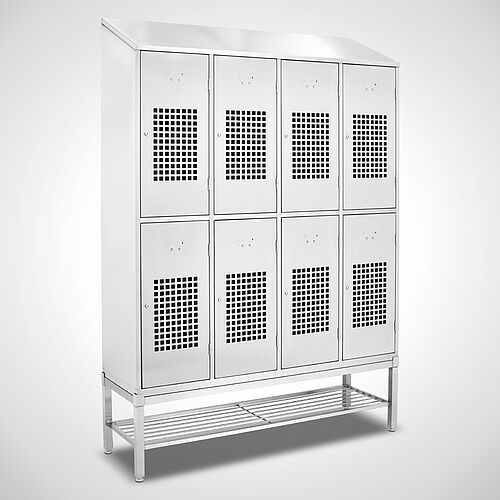

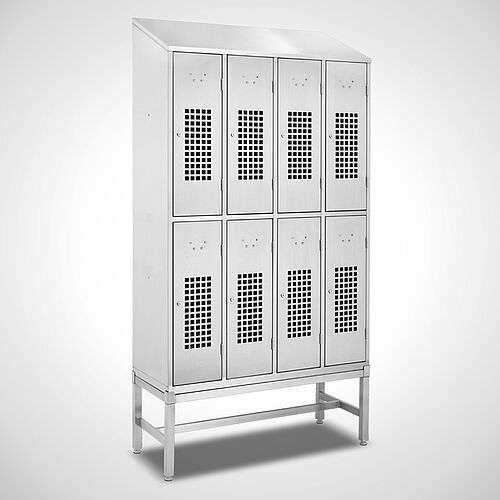

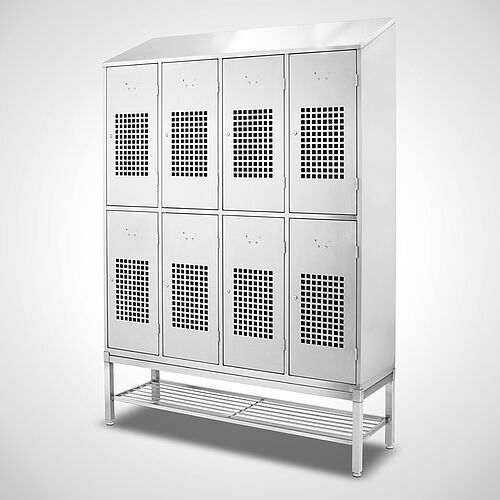

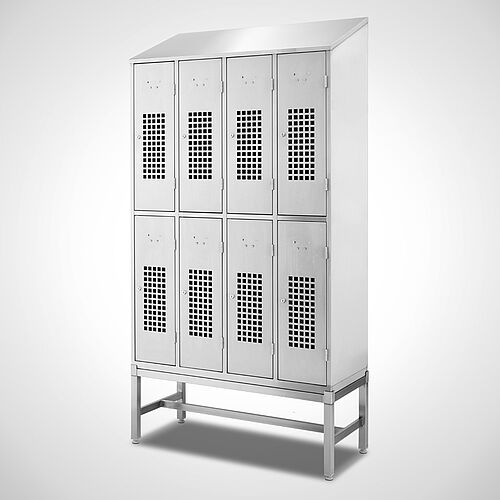

Double-tier locker with base frame
Double-tier locker with base frame
Locker, two-storey
Type GS2-UG-VA-EU
Self-ventilation concept according to EU Directive and §34 Workplace Ordinance
- Two-storey version = 2 overlying shelves/doors per compartment
- Execution with elevated base frame and 4 height-adjustable feet (+/- 15 mm)
- Ground clearance 420 mm
- Robust construction completely made of stainless steel
- 2 compartment width (300 respectively 400 mm) available
- Door clear dimension: W 230/330 x D 465 x H 786 mm
- Robust construction completely made of stainless steel
- Integrated pitched roof (200 mm higher at the back)
- Outside of the door with imprint for name plate
- Inside door with box profile reinforcement for maximum stability
- Doors perforated (square perforation)
- Right hinged doors, mounted on pivot pins
- Twist-lock catch for padlock (on the part of the building site)
- Every compartment with clothes rail + 3 slide bars
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
0
1737
1219
8
Show Lightbox Compare Comparedata
Material
Stainless steel furniture made of chrome-nickel steel 18/10 material no. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish
Options
- Shoe rack for 300 mm compartment width, art.-no. 45.10.70.10
- Shoe rack for 400 mm compartment width, art.-no. 45.12.70.10
- Padlock (brass), art.-no. 00.00.02.10
- Mechan. combination lock, art.-no. 04.80.07.04
- Cylinder lock, simple, art.-no. 00.00.08.70
- Cylinder lock locking system, art.-no. 00.01.00.10
- Main key locking system, art.-no. 00.00.12.00
- Plastic shoe shell, art.-no. 04.50.07.07
- Number plate sticker, art.-no. 04.80.07.01
- Number plate made of plastic, art.-no. 85.02.06.11
- Number plate made of stainless steel, art.-no. 85.01.06.11
