Sieve insert
Type SES-MD
SIEVE INSERT SUITABLE FOR STANDARD TROLLEYS (HBW-S 200 AND 300 LITERS)
- Robust, rectangular wire mesh design in trough shape made of stainless steel
- Wire mesh design executed in bottom and edge area
- Upper edge executed all around with round steel in Ø 8 mm
- Mesh size: 10 x 10 mm; wire thickness: 2 mm
- Sieve insert height: 99 mm
- Lateral 2 round steel handles, Ø 8 mm for hanging in container
- Durable and functional
- High stability with low dead weight
- Stable and first-class stained
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
We manufacture stainless steel wire mesh sieve inserts individually according to the customer's requirements and depending on the container or bin size.
Material
Made of rustproof stainless steel 1.4301
Information

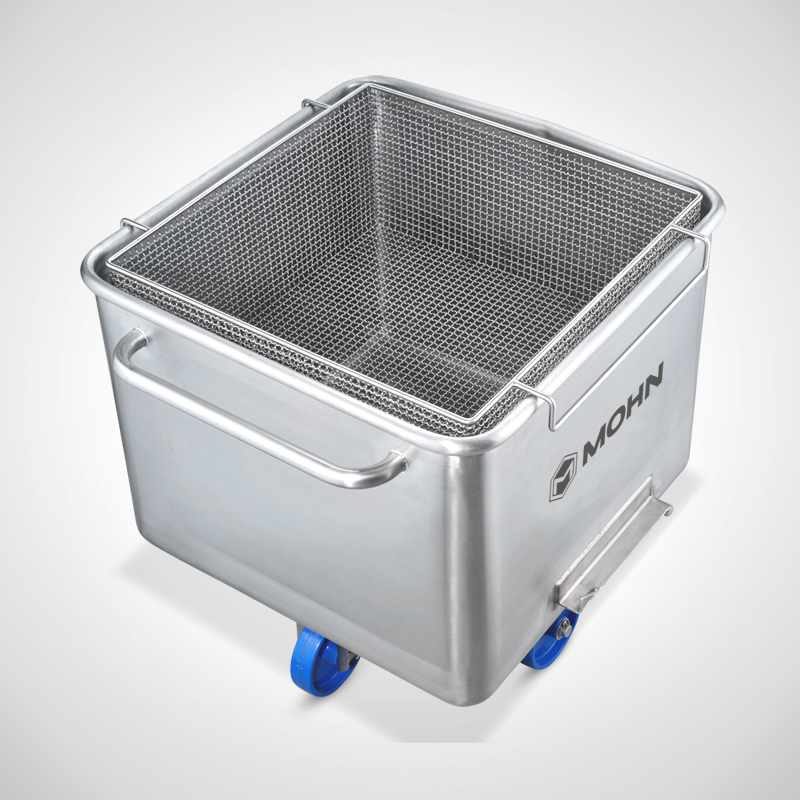

Our high quality sieve insert made of robust stainless steel for lifting and charging trolleys, also known as standard trolleys or cutter trolleys, presents itself in a reliable wire mesh design.
The sophisticated design features a high quality processed mesh size of 10 x 10 mm, which is also first class pickled. This design ensures optimal filtration and permeability. Both the bottom and the rim of the screen insert feature this wire mesh spacing (mesh size), which maximizes functionality.
With a sieve insert height of 99 mm, this product offers sufficient capacity to handle diverse requirements. The two round steel side handles with a handy 8 mm diameter are thoughtfully designed. These allow effortless hooking into the lifting and charging trolley and also serve as handles at the same time. This design guarantees secure positioning and facilitates handling.
Overall, our sieve insert impresses with its first-class workmanship, high load-bearing capacity and precise functionality. It is the optimal supplement for your lifting and charging trolleys to ensure smooth processes.
