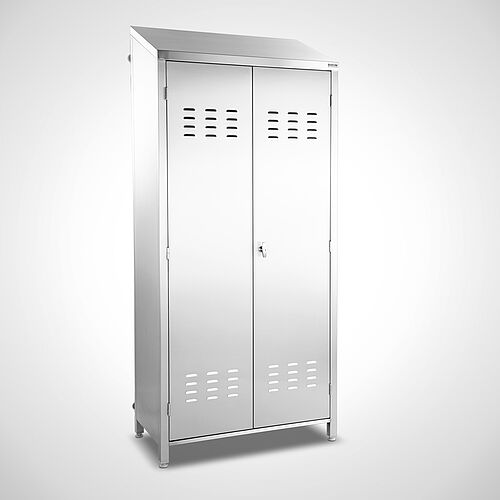

Type ASM 95-50, art. no. 44.20.01.01 Type ASM 95-50, art. no. 44.20.01.01
Type ASM 95-50, art. no. 44.20.01.01 Type ASM 95-50, art. no. 44.20.01.01

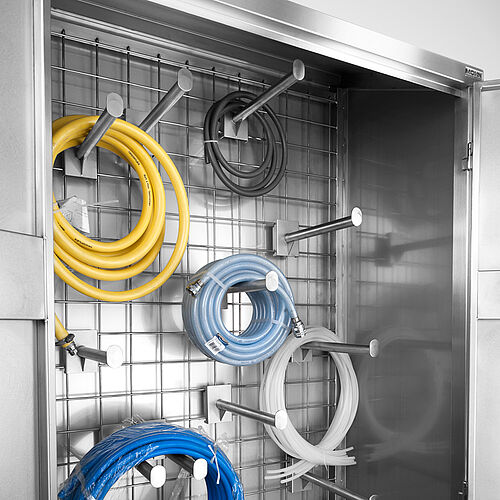

Interior: Support (mandrel), art. no. 44.20.01.02 Interior: Support (mandrel), art. no. 44.20.01.02

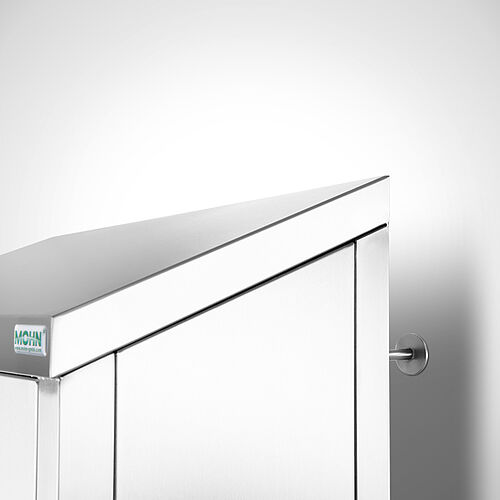

Detail: Sloping roof and wall spacerDetail: Sloping roof and wall spacer

Lifting tackle cupboard
Type ASM

For flexible suspension of equipment by means of bolt

  • Stable industrial version
  • 2 hinged doors on the operator side
  • Hinged door, lockable by mans of T-handle with cylinder lock
  • Doors with top and bottom ventilation slots
  • Sloping roof, 200 mm higher at the back
  • Internal rear wall, cladded with wire mesh (MW 75x75x5 mm)
  • Ground clearance: 100 mm
  • Height-adjustable plastic screw feet (level compensation)
  • Incl. Wall spacer in “Hygienic Design”, D: 50 mm

TypeVersionDimensions
W x D x H in mm		PDF
 ASM 95-50 wire mesh inside 75x75x5950 x 500 x 216044.20.01.01
Special dimensions
Suspension (bolt) - legnth 300 mm 44200102
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Other executions on request.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Option

  • Support (mandrel), projection: 300 mm, Article no. 44.20.01.02
