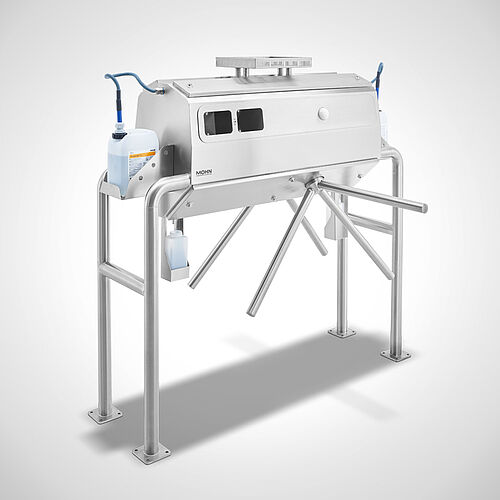

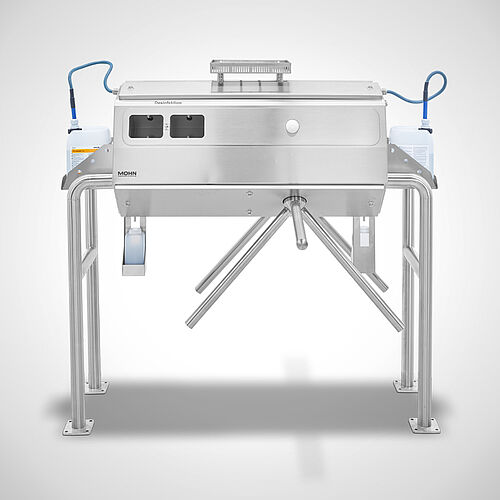

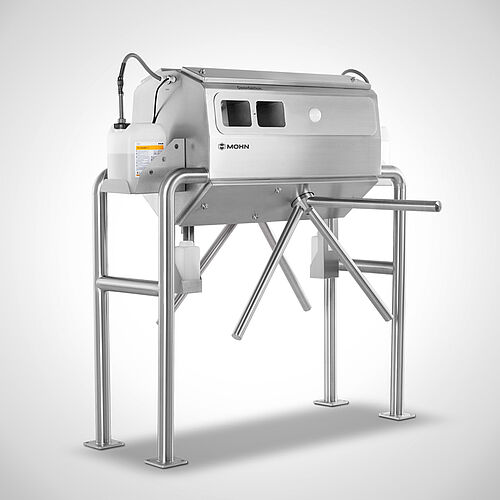

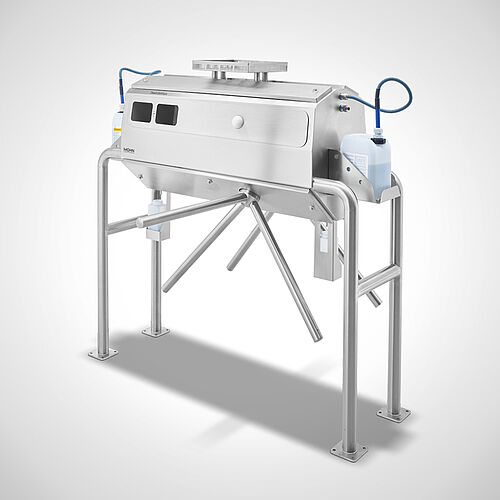

Hand disinfection with turnstile "Highline" (two-lane)

Handdisinfection+Turnstile
Type Desi-Control Duo Highline

2-lane automatic soap / disinfection dispenser with turnstile

  • Vandalism-proof turnstile (10 years warranty)*
    including freely programmable Siemens Logo control unit
  • 2 differenz executions (800 mm or 1200 mm)
  • Encapsulated IP68 sensor for end position detection of the turnstile
  • Each lane separately controlled!
  • Standing version in Hygienic-Design
  • Tamper-proof sensor technology
  • Way back electrically released, or permanently locked
  • Dosage of the application quantity adjustable
  • Optical empty-can message by multi-LED
  • 2 can holders

TypeVersionCasingDimensions
W x D x H in mm
ComparePDF
Desi-Control 1200 Duo2-lane hand disinfection + turnstileW 1200 x D 480 mm1710 x 1615 x 147411.10.07.1211.10.07.12
Desi-Control 800 Duo2-lane hand disinfection + turnstileW 800 x D 480 mm1310 x 1615 x 146011.10.07.9911.10.07.99
Special dimensions
Discontinuation of disinfection/soap function for one track 10003230
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
1923
379
8
Show Lightbox Compare
Comparedata

*for the turnstile mechanism!



Material

 Rustproof stainless steel 1.4301



Information

Optional: 1-lane entry only / 1-lane exit only, Article no. 10.00.32.30
(1-lane soap or disinfection application not available)





PASSAGE DIRECTION

Turnstile passage direction

Left to right

Alternatively: Alignment mirror-inverted

Technical Data

Power supply230 V; 50-60 Hz
Performance0,4 kW
Control voltage24 V DC
