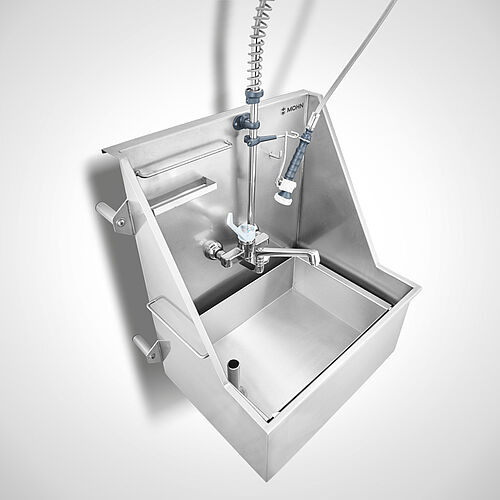

Parts washing station (Soaking station) with dish shower Type TW-W 700, art. no. 12.00.03.60 + 93.00.00.36

Parts washing area (soaking station), inner basin with a funnel-shaped edge

Parts washing area (soaking station), sieve tub with standpipe valve

Parts washing station (soaking station), sieve basket in sieve pan

Parts washing area (soaking station), drain with bell odor trap

Parts washing area (soaking station), drain with sieve insert odor trap

Parts washing area (soaking station), drain with filter lid odor trap

Parts washing area (soaking station), filter cover

Parts washing area (soaking station), sieve insert with fixation - odor trap

Parts washing area (soaking station), sieve tub with floor slope

Parts washing station
Type TW-W 700

Wall-mounted stainless steel construction, welded
Spacer bars (100 mm) made of solid material on the back 30 mm axially drilled for wall mounting
On the left side of the body with suspension for sieve
Hygienic basin inside- welded in a funnel shape
The basin slopes completely towards the central drain
Drain with removable odor trap
2 removable filter plates above the odor trap
Fixation of the filter plates by means of an integrated locking device
Removable sieve pan with a slope to the drain
Sieve pan with standpipe valve DN 50
U-profile edging for fixing the sieve pan in the inner basin
Sieve basket with bottom plate and slope on one side
2-hole dishwasher shower head with long lever swivel arm (OPTION)
Water throughput: 26 + 16 l / min
