Cleaning trolley
type ETW-LB-3
Organised, safe transport of your machine parts

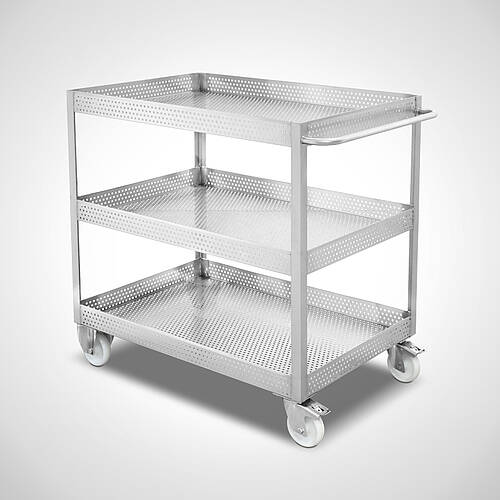

- Parts cleaning trolley made of perforated stainless steel sheet with 3 levels
- Robust tubular frame made from 40 x 40 x 4 mm angle sections
- 3 shelves made of 1 mm thick perforated stainless steel sheet with Ø 8 mm perforations
- Shelves edged 90 mm all round, also perforated

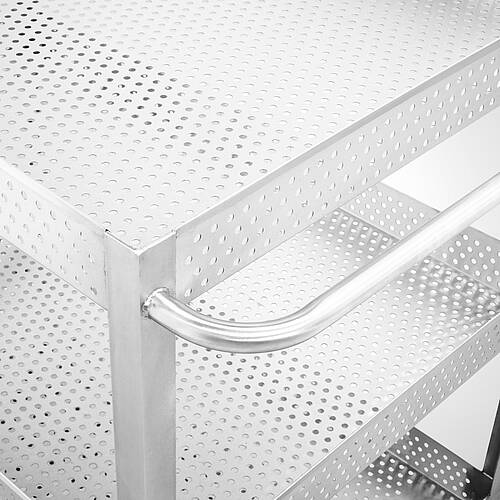

- 1 round steel push handle at one end
- Shelf spacing 455 mm, clear height per shelf 365 mm
- Mobile with 2 swivel castors and 2 fixed castors made of polyamide, Ø 150 mm
- 2 swivel castors with brakes for secure positioning
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
We manufacture individually according to customer requirements and application purpose. Subject to errors and technical changes.
Material
Stainless steel trolley made of 18/10 stainless steel material no. 1.4301.
The externally visible stainless steel sheet surfaces have a polished finish with 320 grit.
The externally visible stainless steel profile surfaces have a uniform brushed finish.
Description
The parts cleaning trolley made of perforated stainless steel sheet was developed for the organised storage, transport and cleaning of machine parts. When dismantling a machine, small parts and assemblies can be collected directly on the three perforated sheet metal shelves and then transported together to the washroom. Made of 1.4301 stainless steel, the trolley is particularly suitable for hygienically demanding production areas, as the material is rustproof, resistant and easy to clean. The perforated shelves and upstands on the sides allow the parts to be arranged clearly and support draining during or after cleaning.
After the cleaning process, the trolley itself can also be cleaned before the parts are returned to the machine and reassembled. The sturdy tubular frame made of stainless steel angle sections ensures a robust design for daily production environments.
The trolley is easy to manoeuvre thanks to the round steel push handle and the combination of swivel and fixed castors. The all-round 90 mm raised shelves help to keep deposited parts safely within the shelf surface during transport.
Advantages
- Small parts remain organised during disassembly, cleaning and return transport.
- Three levels provide space for different components and assemblies.
- Perforated metal shelves support the dripping of water and cleaning fluids.
- All-round upstands reduce the risk of parts falling during transport.
- Mobile design makes it easier to move between the machine and washroom.
- Stainless steel design is suitable for hygienically demanding production areas.
