Foot stand/ base frame for multiple hand wash basins

Foot stand/ base frame for multiple hand wash basins

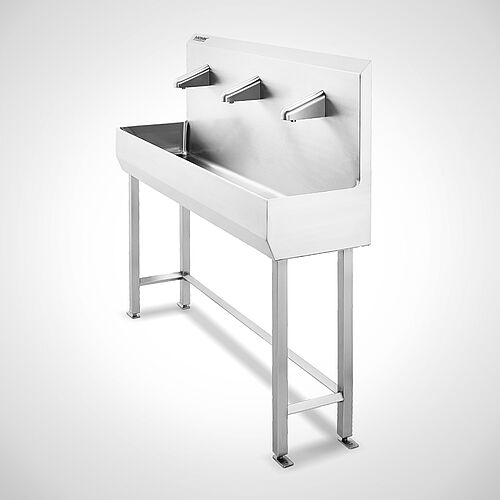

Foot frames for multiple wash basins Type FG-I with 4 height-adjustable feet Foot frames for multiple wash basins Type FG-I with 4 height-adjustable feet

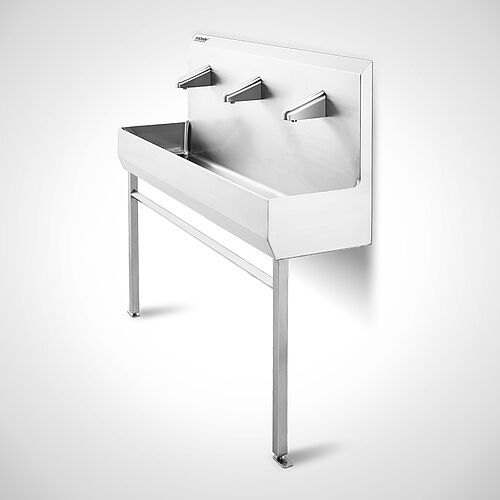

Foot frames for multiple wash basins Type FG-II with 2 height-adjustable feet (suitable for rooms with coves)Foot frames for multiple wash basins Type FG-II with 2 height-adjustable feet (suitable for rooms with coves)

Foot frames for multiple wash basins
Type FG

Compatible for multiple wash basins type WR-HL 2-5

  • "Stand-Alone" construction resp. "wall-floor"-construction
  • Robust tubular frame construction resp. sheet steel construction
  • Foot frame type FG-I (profile tube stand with 4 feet)
  • Foot frame type FG-II (Profile tube stand with 2 feet for cove)

TypeVersionDimensions
W x D x H in mm		PDF
Type FG-I
Foot frame FG-I WR-HL 24 stand feet/ tubular frame rack1000 x 330 x 74012.00.02.22
Foot frame FG-I WR-HL 34 stand feet/ tubular frame rack1500 x 330 x 74012.00.02.23
Foot frame FG-I WR-HL 44 stand feet/ tubular frame rack2000 x 330 x 74012.00.02.24
Foot frame FG-I WR-HL 54 stand feet/ tubular frame rack2500 x 330 x 74012.00.02.25
Foot frame FG-I/35 WR-HL 24 stand feet/ tubular frame rack1000 x 270 x 74012.00.02.27
Foot frame FG-I/35 WR-HL 34 stand feet/ tubular frame rack1500 x 270 x 74012.00.02.28
Foot frame FG-I/35 WR-HL 44 stand feet/ tubular frame rack2000 x 270 x 74012.00.02.29
Foot frame FG-I/35 WR-HL 54 stand feet/ tubular frame rack2500 x 270 x 74012.00.02.30
Type FG-II
Foot frame FG-II WR-HL 22 stand feet/ tubular frame rack1000 x 330 x 74012.00.02.32
Foot frame FG-II WR-HL 32 stand feet/ tubular frame rack1500 x 330 x 74012.00.02.33
Foot frame FG-II WR-HL 42 stand feet/ tubular frame rack2000 x 330 x 74012.00.02.34
Foot frame FG-II WR-HL 52 stand feet/ tubular frame rack2500 x 330 x 74012.00.02.35
Foot frame FG-II/35 WR-HL 22 stand feet/ tubular frame rack1000 x 270 x 74012.00.02.38
Foot frame FG-II/35 WR-HL 32 stand feet/ tubular frame rack1500 x 270 x 74012.00.02.39
Foot frame FG-II/35 WR-HL 42 stand feet/ tubular frame rack2000 x 270 x 74012.00.02.40
Foot frame FG-II/35 WR-HL 52 stand feet/ tubular frame rack2500 x 270 x 74012.00.02.41
Special dimensions
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside, such as foot frame type FG-III (installation foot) are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as tubular frame, feet have a uniform brushed finish



description

Type FG-I:

  • 4 height-adjustable feet with lug for floor mounting
  • Stand foot: tubular frame with dimensions 40x40x1,5 mm
  • U-shape strutting: tubular frame with dimensions 30x30x1,5 mm

Type FG-II:

  • 2 height-adjustable feet with lug for floor mounting
  • Wall-side without feet (suitable for rooms with coves)
  • Stand foot: tubular frame with dimensions 40x40x1,5 mm
  • U-shape strutting: tubular frame with dimensions 30x30x1,5 mm
