Foot stand/ base for hand wash basins

Foot stand/ base for hand wash basins

Type FG-I with 4 height-adjustable feet Type FG-I with 4 height-adjustable feet
Type FG-II with 2 height-adjustable feet (suitable for rooms with coves)Type FG-II with 2 height-adjustable feet (suitable for rooms with coves)

Foot stands/ base cabinet
Type FG

Compatible for hand wash basin type HWB-HL 1

  • Different executions made of stainless steel
  • Robust tubular frame construction
  • "Stand-Alone" construction (Type FG-I )
  • "Wall-floor"-construction (Type FG-II)

TypeVersionDimensions
W x D x H in mm		PDF
Foot frame type FG-I4 stand feet500 x 330 x 74012.00.02.21
Foot frame type FG-II2 stand feet500 x 330 x 74012.00.02.31
Special dimensions
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as stand feet have a uniform brushed finish.



DESCRIPTION

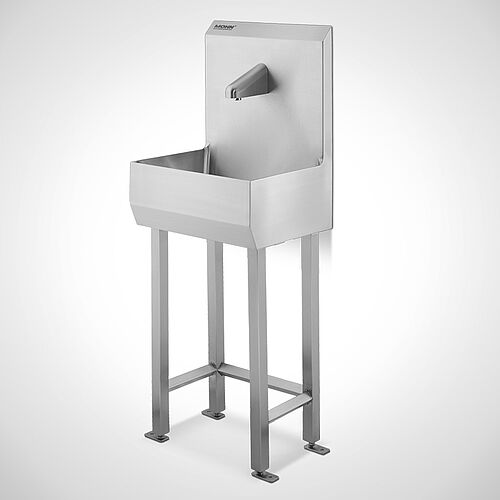

Typ FG-I (tubular frame)

  • Feet-tubular frame: 40 x 40 x 1,5 mm
  • U-strutting-tubular frame: 30 x 30 x 1,5 mm
  • 4 height-adjustable feet
  • Each stand foot with lug for floor mounting

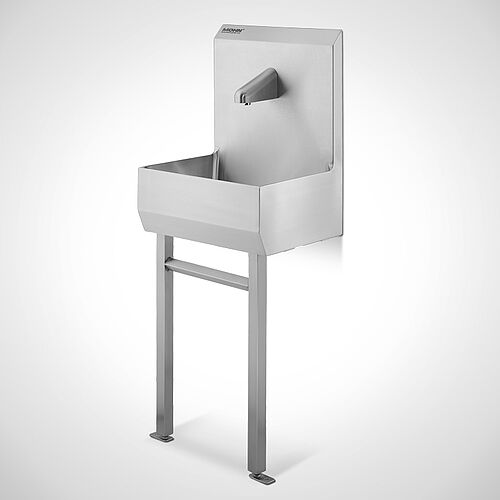

Type FG-II (tubular frame for cove)

  • Feet-tubular frame: 40 x 40 x 1,5 mm
  • Lateral-strutting-tubular framer: 30 x 30 x 1,5 mm
  • 2 height-adjustable feet
  • Each stand foot with lug for floor mounting
